GIRA 310900 mecanismo de interruptor de tecla, 2 polos, comutador de escada, 10 A, 250 V, montagem de encastrar

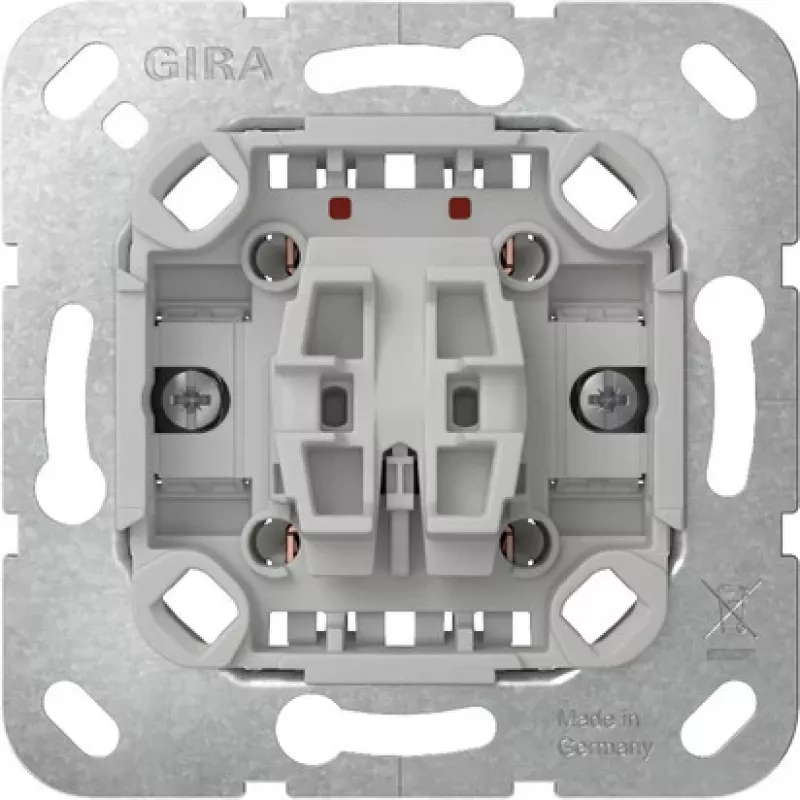

Electricians and installers use the GIRA 310900 rocker switch insert as the functional core of a two-way lighting circuit in residential and commercial buildings. The 2-pole changeover mechanism is designed for flush-mounted installation in standard wall boxes, ready to accept a compatible Gira rocker and cover frame from System 55 or other Gira ranges.

Key specifications

• Switch function: changeover (two-way)
• Number of poles: 2
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection type: screw terminals
• Mounting type: flush-mounted
• Material: thermoplastic
• Halogen-free: yes
• Installation depth: approx. 32 mm

Why choose it

The insert provides reliable switching for lighting and other loads up to 2300 W at 230 V. Its mechanical rocker principle ensures long service life, and the screw terminals allow secure wiring with solid or stranded conductors.

Ideal use cases

• Two-way switching of lighting circuits in hallways, staircases, and large rooms
• Replacement or upgrade of existing Gira switch inserts
• New installations using Gira System 55 frames and rockers

Good to know

The insert has IP20 protection and is suitable for indoor use only. It carries the VDE mark. The internal colour is grey/black, and the product is halogen-free.
