Gira Emissor de parede por radiofrequência 3 módulos 533300

With a free-field range of up to 100 m and three independent channels, this battery-powered radio wall transmitter brings wireless control to switching, dimming, blind control, and scene recall in the Gira Radio Bus System.

Overview

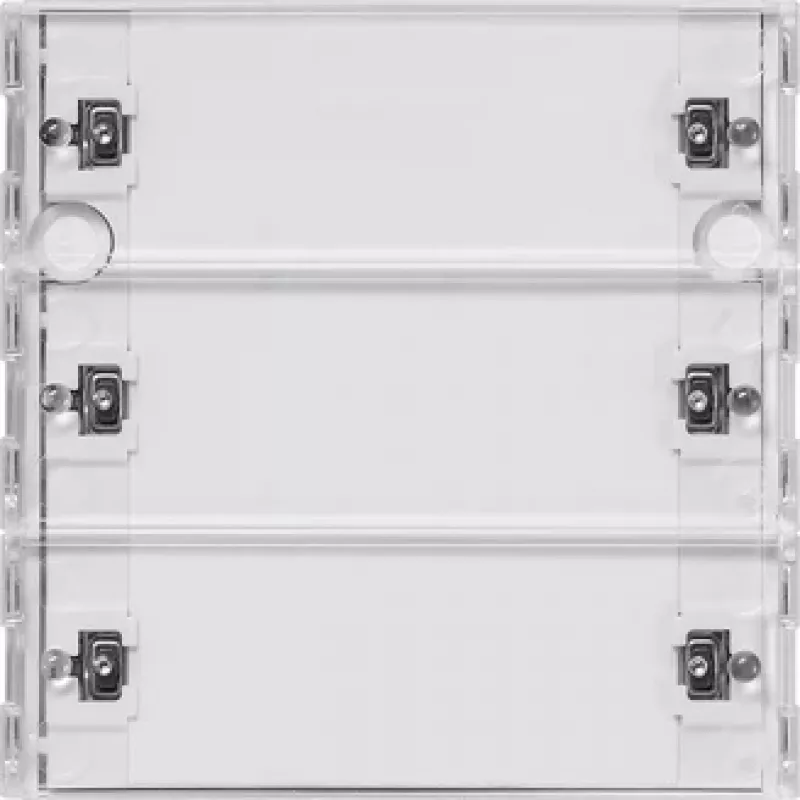

The Gira Radio Wall Transmitter 3-Gang 533300 is a surface-mounted wireless switch designed for flexible control without wiring. It operates on the Gira Radio Bus System at 868.3 MHz and is powered by a single CR2032 lithium battery, offering a typical service life of 2 to 5 years depending on usage.

What stands out

• Three channels for independent control of multiple functions
• Wireless installation – adhesive or screw mounting, no wiring required
• Compatible with Gira System 55, E2, Event, Esprit, and Standard 55 frames
• Transmission power under 10 mW for efficient operation
• Indoor range up to 30 m and free-field range up to 100 m

Technical details

• Radio frequency: 868.3 MHz
• Power supply: 1x CR2032 (3V lithium battery)
• Battery life: approx. 2–5 years
• Mounting type: surface-mounted (adhesive or screw)
• Functions: switching, dimming, blind control, scene recall
• Protection class: IP20
• Operating temperature: -5 °C to +45 °C
• Material: thermoplastic (PC)
• Colour: pure white glossy

Our verdict

A reliable and flexible wireless control solution for Gira Radio Bus installations, offering three channels and simple battery-powered operation.
