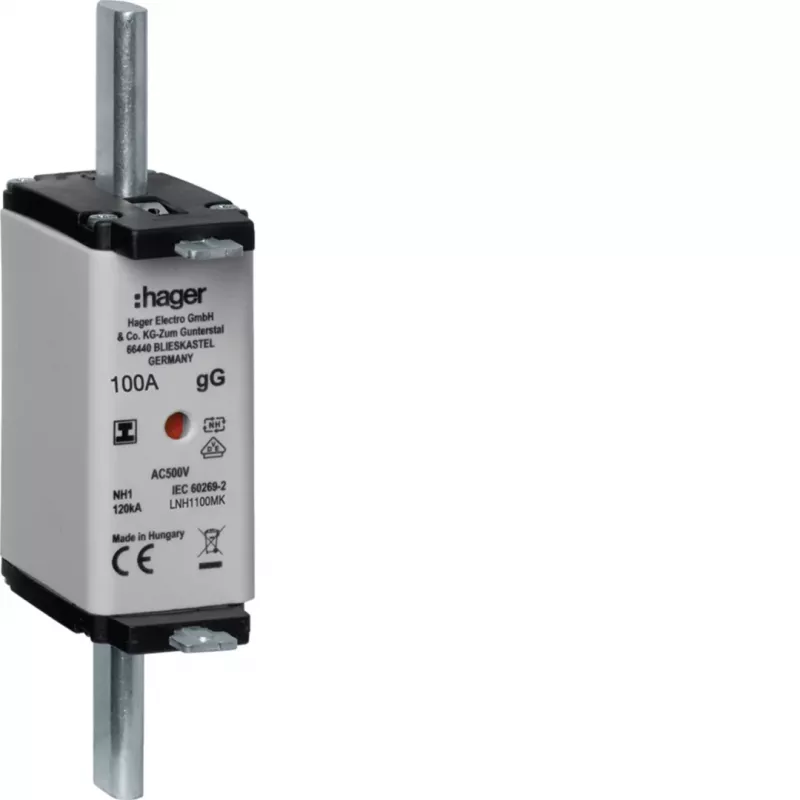

HAGER LNH1100MK NH1C 100A 500V gG Fusível com indicador superior, não seccionável

With a rated breaking capacity of 120 kA, this HAGER NH fuse link provides robust protection for cables and lines in industrial and commercial installations.

Overview

The HAGER LNH1100MK is an NH1 size fuse link rated at 100 A and 500 V AC, operating class gG (general purpose). It features a top indicator (Kombi-Melder) for clear status indication and is designed for non-disconnectable (S-frei) applications, ensuring permanent protection without the risk of accidental disconnection.

What stands out

• High breaking capacity of 120 kA for reliable short-circuit protection
• Top indicator allows quick visual identification of a blown fuse
• Non-disconnectable design prevents unauthorized removal
• Ceramic body and silver-plated copper contacts for durability and low contact resistance

Technical details

• Fuse type: NH fuse-link
• Size: NH1
• Rated current: 100 A
• Rated voltage: 500 V AC
• Operating class: gG (general purpose)
• Rated breaking capacity: 120 kA
• Power dissipation: 11.5 W
• Frequency: 50/60 Hz
• Body material: Ceramic
• Contact material: Silver-plated copper
• Mounting: For NH fuse bases
• Operating temperature range: -5 to +40 °C
• Standard: IEC/EN 60269-2

Our verdict

A dependable NH fuse link for demanding electrical distribution, offering high interrupting capacity and clear status indication.
