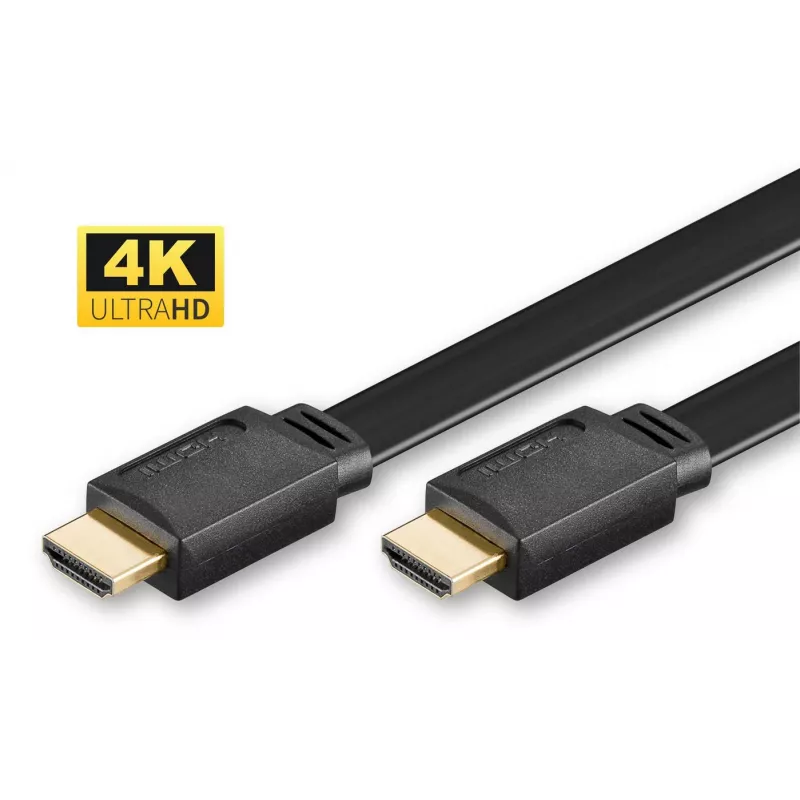

HDMI High Speed cabo plano MicroConnect HDM19195V1.4flach 5m

The MicroConnect HDMI High Speed Flat cable HDM19195V1.4FLAT, 5 m, is a flat HDMI 1.4 cable with HDMI Type A connectors and gold-plated contacts. It supports high-speed digital transfer up to 10.2 Gbit/s and resolutions up to 3840 x 2160 (4K) at 30 Hz. The cable includes HDMI features such as HDCP 2.2 compatibility, CEC control, ARC (Audio Return Channel) and 3D support. Its flat design and 5 m length make it suitable for routing in tight spaces, under carpets or along skirting boards while maintaining a compact profile.

Advantages

The flat construction allows the cable to be laid discreetly in narrow gaps and under floor coverings. Gold-plated HDMI Type A connectors improve contact reliability and signal quality. Compliance with HDMI 1.4 specifications ensures support for 3D, ARC and HDCP 2.2 while delivering up to 10.2 Gbit/s for high-definition audio and video transmission.

Suitable for

• Connecting Blu-ray players, set-top boxes and media players to TVs and projectors
• Home theatre systems using ARC to route audio to AV receivers or soundbars
• Hidden or low-profile cable runs under carpets, along skirting boards or behind furniture

Key specifications

• Cable length: 5 m
• Standard: HDMI 1.4
• Maximum data rate: 10.2 Gbit/s
• Maximum resolution: 3840 x 2160 @ 30 Hz (4K)
• Connectors: HDMI Type A (Standard) — both ends, gold-plated
• Supported features: HDCP 2.2, CEC, ARC, 3D
• Colour: Black
• Weight: 0.1 kg

How to use

Connect one HDMI Type A end to the HDMI output of your source device (for example a Blu-ray player or set-top box) and the other end to the HDMI input of your display (TV or projector). Ensure connectors are fully inserted to establish a secure connection. For ARC functionality, connect the cable to the HDMI ARC port on both TV and audio device and enable ARC in device settings if required. Route the flat cable along the desired path, taking advantage of its low profile when passing under carpets or along skirting boards.

Recommendations

Avoid bending the cable sharply at the connector ends and do not place heavy objects on top of the cable to preserve signal integrity. For 4K@30Hz performance, use devices and inputs that support HDMI 1.4; for higher frame rates or newer HDMI features, consider an HDMI 2.0/2.1 cable.
