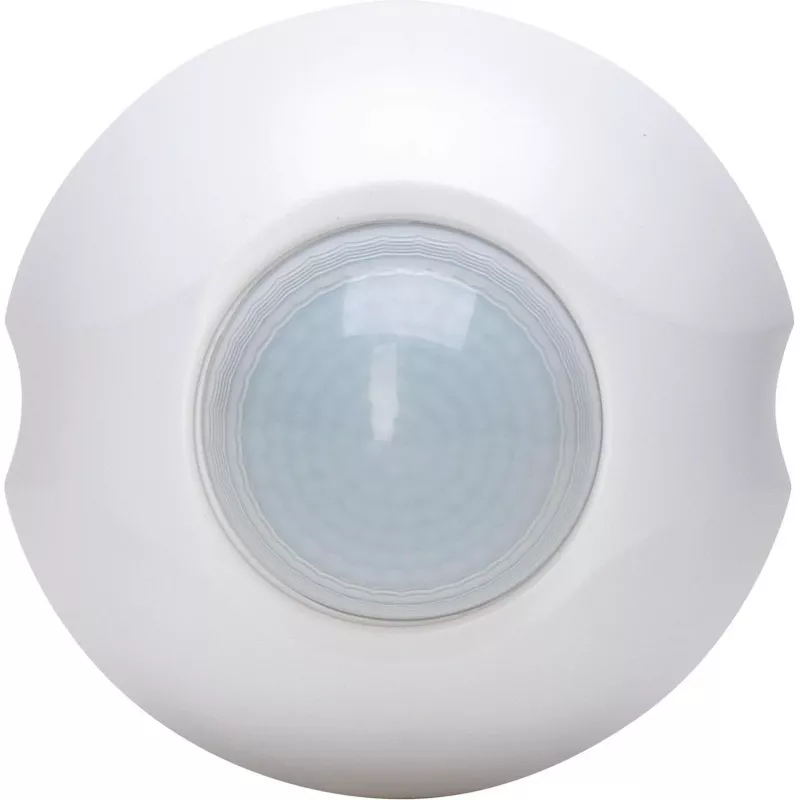

HEINRICH KOPP Detetor de movimento 360° de teto/superfície, relé, branco, IP44/IP20, 230V, 2000W 822101035

Detecting motion in large indoor spaces or covered outdoor areas can be challenging with standard sensors. This HEINRICH KOPP motion detector offers a 360° detection angle and a relay output for reliable switching of lighting loads.

Who is it for

Electricians and homeowners needing a versatile motion sensor for ceiling or surface mounting in areas like hallways, garages, or covered patios.

Main features

• 360° detection angle for comprehensive coverage
• Relay output with high switching capacity: 2000W resistive, 500W LED/fluorescent
• Adjustable time setting from 10 seconds to 15 minutes
• Adjustable twilight setting from 3 to 2000 lux
• Dual IP rating: IP44 for surface mounting, IP20 for ceiling mounting
• Wide operating temperature range: -20°C to +40°C

Specifications

• Mounting type: Surface-mounted (Ceiling)
• Detection angle: 360°
• IP protection class: IP44 (surface), IP20 (ceiling)
• Product colour: White
• Operating voltage: 230V AC, 50Hz
• Max. switching capacity (resistive): 2000W
• Max. switching capacity (LED/fluorescent): 500W
• Detection range (diameter): Max. 8 m at 2.5 m mounting height
• Recommended mounting height: 2.2 - 4 m
• Time setting: 10 seconds - 15 minutes (adjustable)
• Twilight setting: 3 - 2000 Lux (adjustable)
• Switching output: Relay
• Standby power consumption: < 0.5W
• Operating temperature: -20°C to +40°C
• Housing material: UV-stabilized Polycarbonate
• Connection type: 3-wire

Tips

For optimal coverage, mount the sensor at a height between 2.2 and 4 meters. Adjust the time and twilight settings according to the specific area to avoid false triggers.
