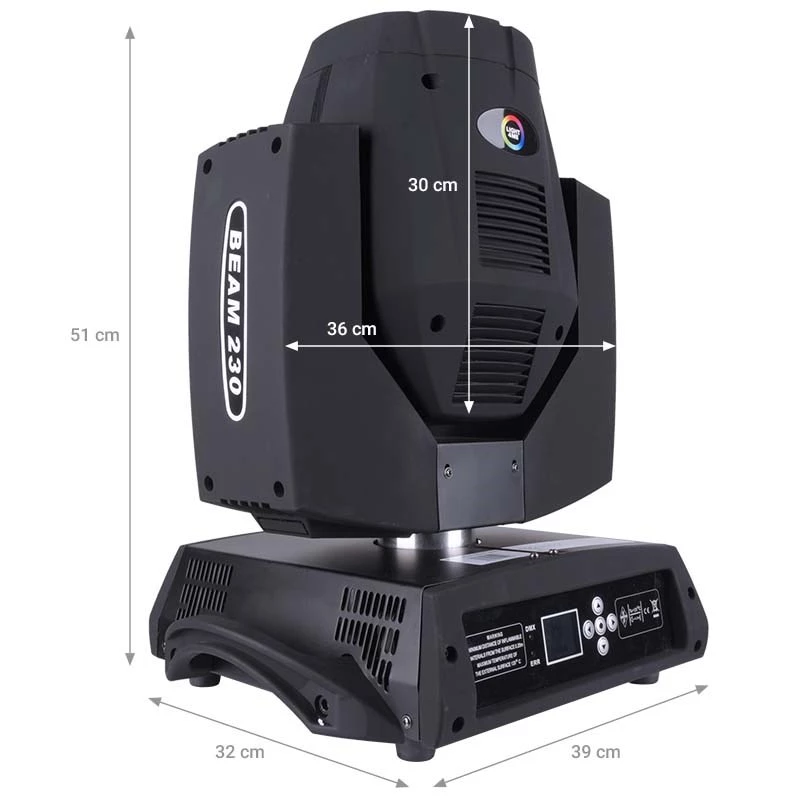

Iluminação moving head LIGHT4ME 7R BEAM 230W

The LIGHT4ME 7R BEAM 230W Moving Head is a professional lighting fixture designed for stage, club, and event use. Featuring a powerful Osram Sirius HRI 230W lamp, it delivers intense beams with a narrow 0-4° angle, perfect for creating dramatic effects. With 540° pan and 270° tilt, this moving head offers smooth and precise movement. The unit includes 14 dichroic colors, 17 fixed gobos, an 8-facet rotating prism, and motorized focus, providing versatile creative options. Control via DMX512, auto, sound active, or master/slave modes makes it suitable for both standalone and integrated setups.

Advantages

High-output 230W beam with crisp projection; wide color and gobo selection; smooth pan/tilt movement; multiple control modes for flexibility; durable construction for touring and installation.

Suitable for

• Nightclubs and discos
• Concerts and live performances
• Mobile DJs and event hire
• Theatrical productions
• Corporate events and parties

Key specifications

• Light Source: Osram Sirius HRI 230W (7R lamp)
• Lamp Power: 230W
• Color Temperature: 8000K
• Beam Angle: 0-4°
• Pan: 540°
• Tilt: 270°
• DMX Channels: 16/20 selectable
• Control: DMX512, Auto, Sound Active, Master/Slave
• Color Wheel: 14 dichroic colors + open, half-color, rainbow effect
• Gobo Wheel: 17 fixed gobos + open, shake effect
• Prism: 8-facet rotating, bi-directional
• Frost Filter: Yes
• Focus: Motorized linear
• Dimmer: 0-100% linear electronic
• Strobe: 0.5-9 flashes/sec
• Display: LCD graphic
• Power Consumption: 350W max
• Input Voltage: AC 100-240V, 50/60Hz
• DMX Connectors: 3-pin XLR In/Out
• Power Connector: PowerCON In

Recommendations

For best results, use with a compatible DMX controller and ensure adequate ventilation. The fixture is designed for indoor use only. Always secure with a safety cable when rigging overhead.
