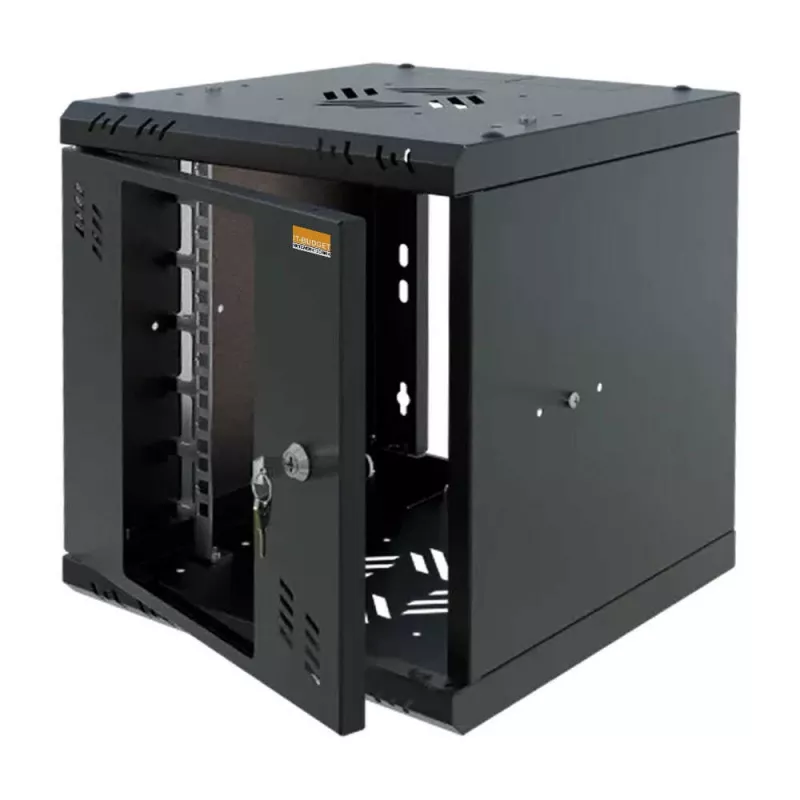

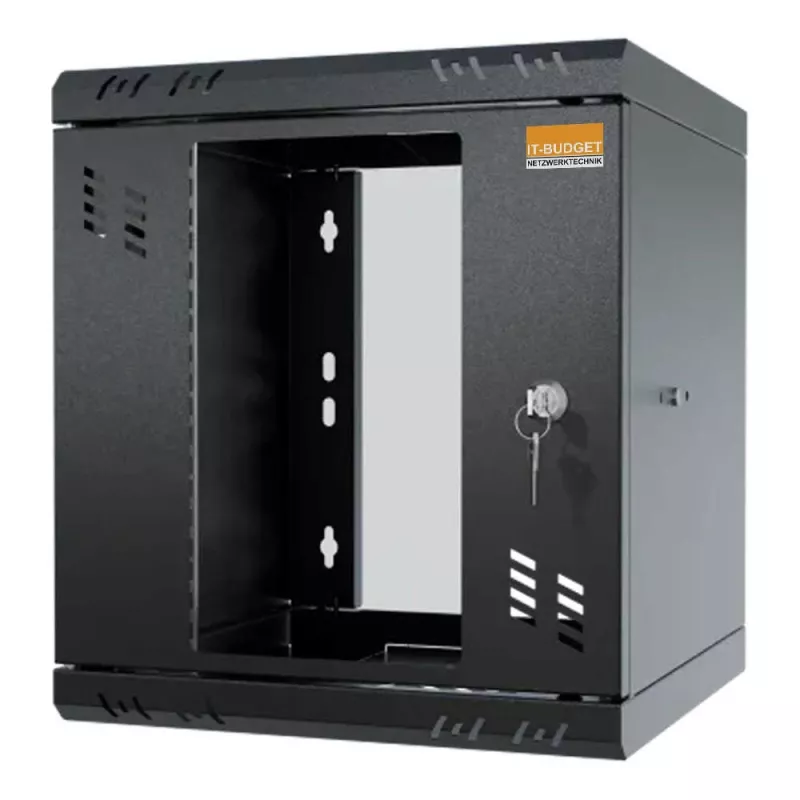

IT-BUDGET armário de rede 10" para pequena distribuição de dados - 6HE - 300 mm de profundidade - porta de vidro - fechadura - preto (90ITB1063GS)

Compact 10-inch wall-mount cabinet for small data network distribution. With 6 rack units, 300 mm depth, and a lockable glass door, it organizes network equipment securely while keeping it visible. The fully assembled steel enclosure has pre-punched cable entries and passive ventilation, ready for immediate installation.

Highlights

• 10-inch rack standard, 6U height
• 300 mm external depth, approx. 250 mm internal usable depth
• Single-section safety glass door, opens 180°, with cylinder lock
• Robust steel sheet, powder-coated black (RAL 9005)
• Pre-punched cable entry openings top and bottom
• Passive ventilation slots
• Max static load 30 kg, protection class IP20
• Fully assembled, wall-mount type

In daily use

Ideal for small data networks, home office, or network distribution points. The glass door allows visual monitoring of equipment status without opening the cabinet. The lock prevents unauthorized access. Fixed side panels and a compact footprint make it suitable for tight spaces.

Full specifications

• External dimensions: 312 mm width, 320 mm height, 300 mm depth
• Internal usable depth: approx. 250 mm
• Door type: single-section safety glass door, opening angle 180°
• Security: lockable front door with cylinder lock
• Material: robust steel sheet
• Color: black (RAL 9005)
• Surface finish: powder-coated
• Cable entry: pre-punched openings (top and bottom)
• Ventilation: passive ventilation slots
• Max. static load: 30 kg
• Protection class: IP20
• Side panels: fixed
• Assembly: fully assembled
• Application area: small data networks, home office, network distribution

Final note

This cabinet is a practical choice for organizing and securing small network installations.
