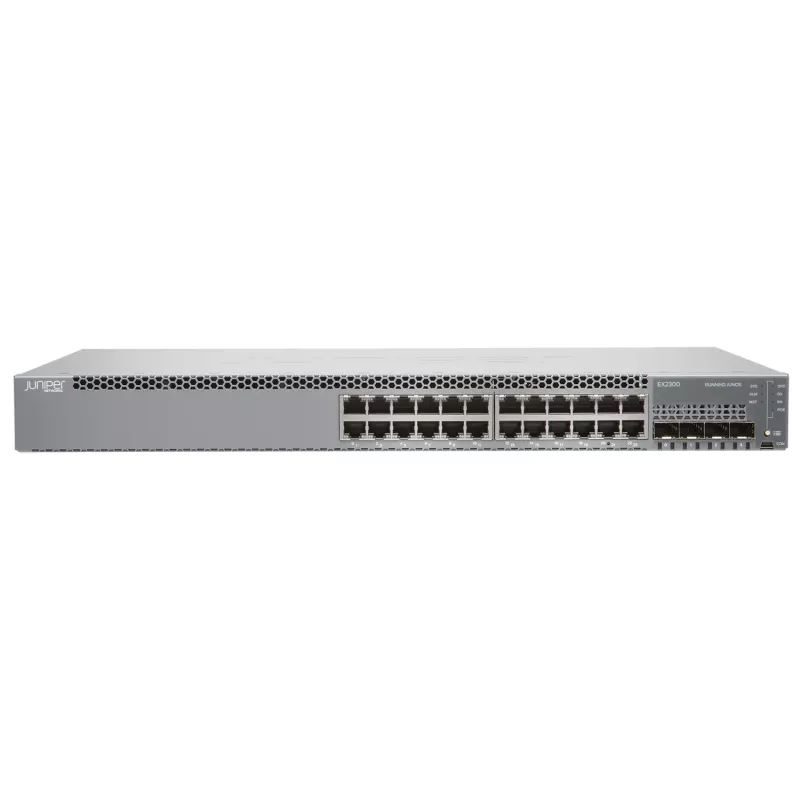

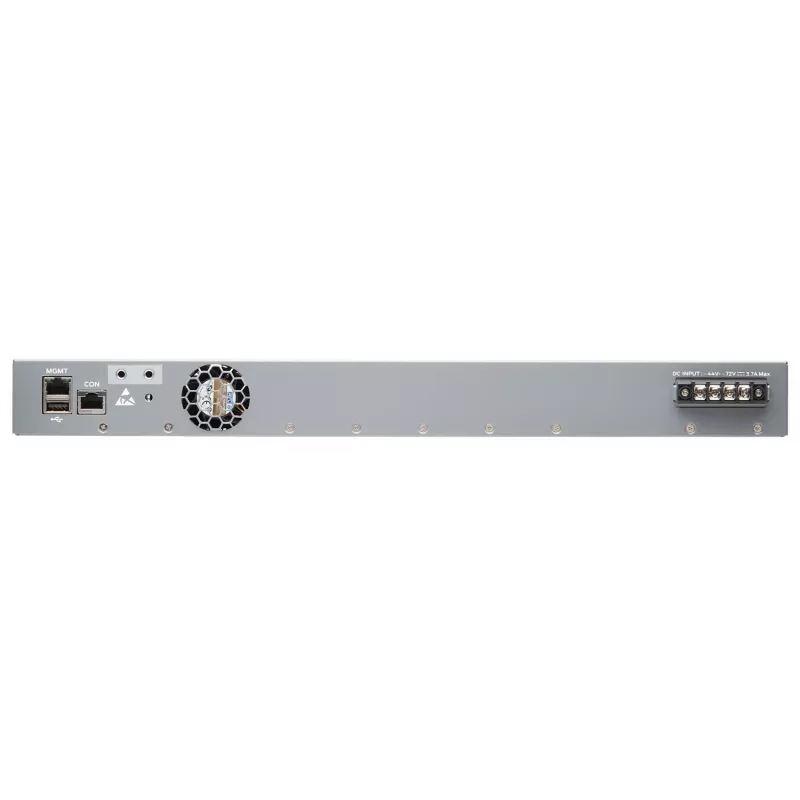

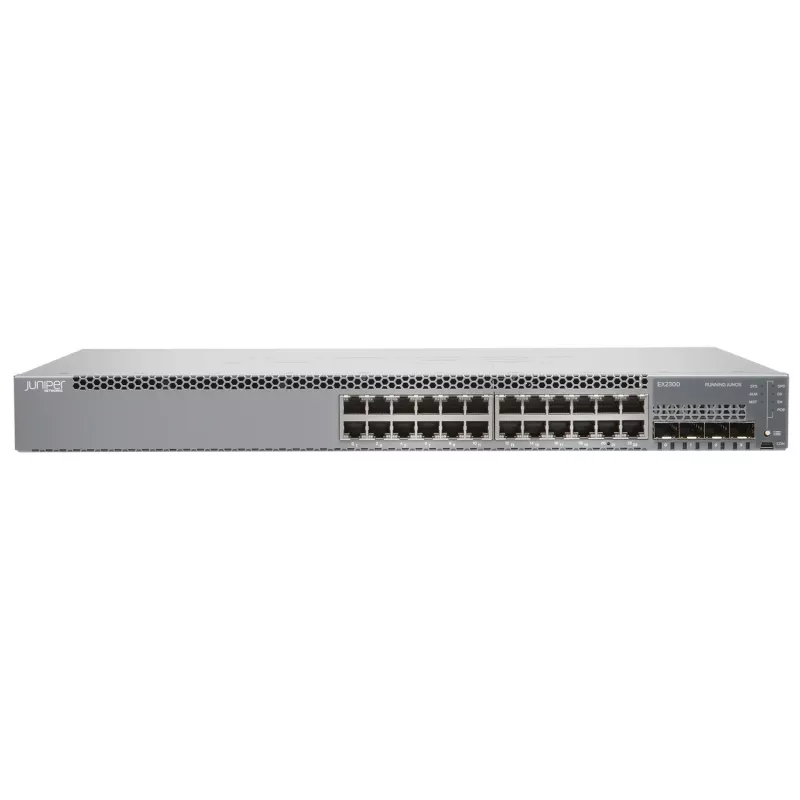

Juniper EX Series EX2300-24P - Switch - L3 - gerido - 24 x 10/100/1000 (PoE+)

The Juniper EX2300-24P is a high-performance, managed Layer 3 Ethernet switch designed for enterprise access and branch office deployments. With 24 Gigabit Ethernet PoE+ ports and 4 uplink SFP/SFP+ ports, it delivers reliable connectivity and power to devices such as IP phones, wireless access points, and security cameras. The switch features a 370W PoE budget, advanced security and QoS capabilities, and supports Virtual Chassis technology for simplified management and scalability.

Advantages

Cost-effective and energy-efficient, the EX2300-24P offers enterprise-grade features in a compact 1U form factor. Its Virtual Chassis support allows up to four switches to be managed as a single unit, reducing operational complexity. The switch also includes Energy Efficient Ethernet (EEE) to minimize power consumption during low traffic periods.

Suitable for

• Enterprise access layer deployments
• Branch offices and remote sites
• PoE-powered device connectivity (IP phones, cameras, APs)
• Small to medium-sized businesses requiring advanced Layer 3 features

Key specifications

• 24 x 10/100/1000Base-T PoE+ ports
• 4 x 1/10 Gigabit SFP/SFP+ uplink ports
• PoE budget: 370 W
• Switching capacity: 128 Gbps
• Forwarding rate: 95 Mpps
• MAC address table: 16K entries
• Jumbo frame support: up to 9216 bytes
• Routing protocols: OSPF, RIP, BGP, VRRP, ECMP
• Management: CLI, Web UI, SNMP, RMON, SSH, Telnet
• VLAN support: 4096 VLANs
• Security: DHCP Snooping, DAI, DoS Protection, 802.1X
• QoS: CoS, DiffServ, WRED
• Virtual Chassis: up to 4 switches
• Rack-mountable 1U enclosure
• Internal AC power supply

Recommendations

The Juniper EX2300-24P is an ideal choice for organizations seeking a reliable, feature-rich access switch with PoE+ support. Its combination of performance, security, and ease of management makes it suitable for modern network environments.
