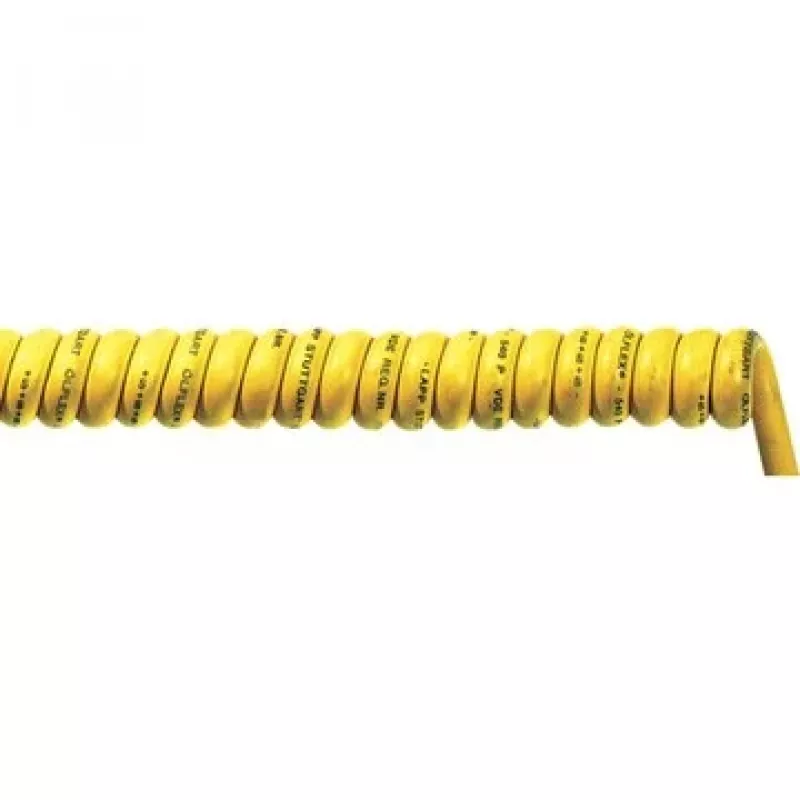

LAPP ÖLFLEX SPIRAL 540 P cabo espiral, 5 x 0,75 mm², amarelo, 600 mm a 1800 mm 71220120

The ÖLFLEX SPIRAL 540 P from LAPP is a coiled control cable that extends from 600 mm to 1800 mm, providing reliable retraction and space-saving routing in moving machine parts. Its yellow PUR jacket offers excellent oil and UV resistance, making it a durable choice for industrial automation, robotics, and material handling applications.

Highlights

• 5 cores with 0.75 mm² fine-wire copper conductors
• PUR jacket resistant to oil and UV
• Extends from 600 mm to 1800 mm
• Flame retardant according to IEC 60332-1-2

In daily use

This spiral cable is designed for continuous flexing in cable carriers and moving equipment. Its fine-wire Class 5 conductors and PVC core insulation ensure flexibility, while the PUR jacket withstands mechanical stress and harsh environments. The yellow color provides high visibility for safety and identification. Suitable for control circuits with a nominal voltage of 300/500 V.

Full specifications

• Brand: LAPP
• Model: ÖLFLEX SPIRAL 540 P
• MPN: 71220120
• EAN: 4044773332124
• Cable type: Coiled control cable
• Number of cores: 5
• Conductor cross-section: 0.75 mm²
• Unextended length: 600 mm
• Extended length: 1800 mm
• Jacket color: Yellow
• Jacket material: PUR (Polyurethane)
• Conductor material: Fine-wire bare copper
• Core insulation material: PVC
• Nominal voltage: 300/500 V
• Test voltage: 3000 V
• Temperature range flexing: -30°C to +50°C
• Temperature range fixed: -40°C to +80°C
• Oil resistance: Good
• UV resistance: Good
• Flame retardant: Yes, according to IEC 60332-1-2
• Outer diameter: 7.6 mm

Final note

Engineered for demanding motion applications, the ÖLFLEX SPIRAL 540 P combines flexibility with robust protection, ensuring long service life in industrial environments.
