LC Power LC-DOCK-U3-HUB - docking station para HDD com indicador de rede, hub USB de 3 portas, interruptor on/off, função de clonagem baías: 2 - 2.5 / 3.5 partilhadas

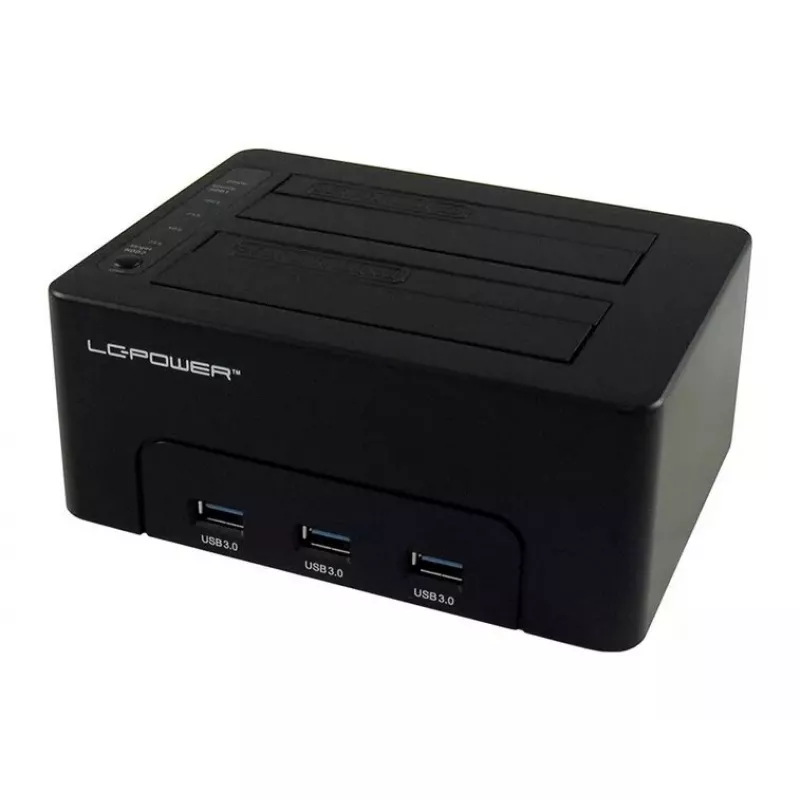

The LC-Power LC-DOCK-U3-HUB is a dual-bay storage drive docking station for 2.5" and 3.5" HDDs and SSDs. It connects to a host via USB 3.2 Gen 1 (USB 3.0) Type-B with a maximum theoretical transfer rate of 5 Gbit/s. The unit is made of plastic, finished in black, and measures 153 mm × 112 mm × 62 mm with an output voltage of 12 V. It also integrates a three-port USB 3.0 hub and a one-touch cloning function for disk-to-disk duplication without a PC.

Advantages

The docking station supports both 2.5" and 3.5" drives, provides high-speed USB 3.0 connectivity for fast file transfers, and includes an integrated 3-port USB hub to expand peripheral connections. The one-touch cloning feature enables direct HDD/SSD duplication without requiring a computer. Compact dimensions and a plastic housing keep the device lightweight and suitable for desktop use.

Suitable for

• Transferring large files between internal drives and a PC
• Cloning or backing up HDDs and SSDs using the one-touch cloning function
• Connecting multiple USB peripherals via the built-in 3-port hub
• Temporary access to spare or legacy 2.5" and 3.5" drives

Key specifications

• Supported drive sizes: 2.5" and 3.5" HDD/SSD
• Host interface: USB 3.2 Gen 1 (USB 3.0) Type-B — up to 5 Gbit/s
• Additional ports: 3 × USB 3.0 downstream
• Cloning: One-touch disk-to-disk clone (no PC required)
• Power output: 12 V
• Material: Plastic; Colour: Black
• Dimensions: 153 mm (W) × 112 mm (D) × 62 mm (H)
• Weight: 0.408 kg

How to use

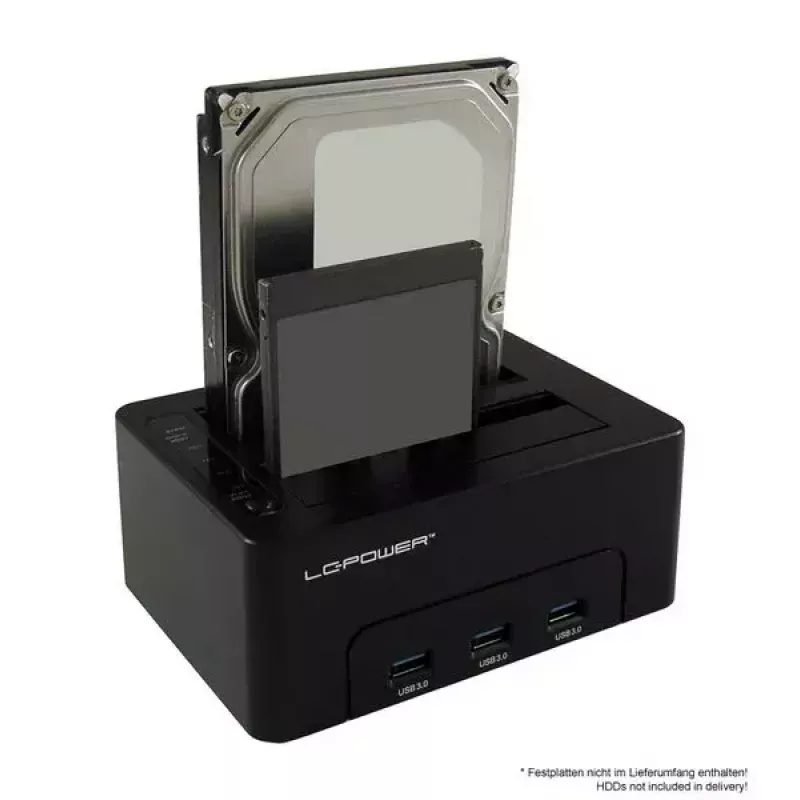

Insert compatible 2.5" or 3.5" HDD/SSD into the front bays until they are securely seated. Connect the docking station to a host computer using the supplied USB 3.0 Type-B to Type-A cable to enable data transfer and access drives through the operating system. To perform a one-touch clone, insert the source drive and target drive into the bays according to the manufacturer’s markings and press the clone button; the device will duplicate the source drive to the target drive without a PC. Use the integrated USB 3.0 ports to connect peripherals or additional storage devices as needed.

Recommendations

For reliable operation, use a stable external power supply if provided, ensure drives are correctly oriented and fully inserted before use, and avoid interrupting the cloning process once started. Always back up important data before cloning or performing write operations.
