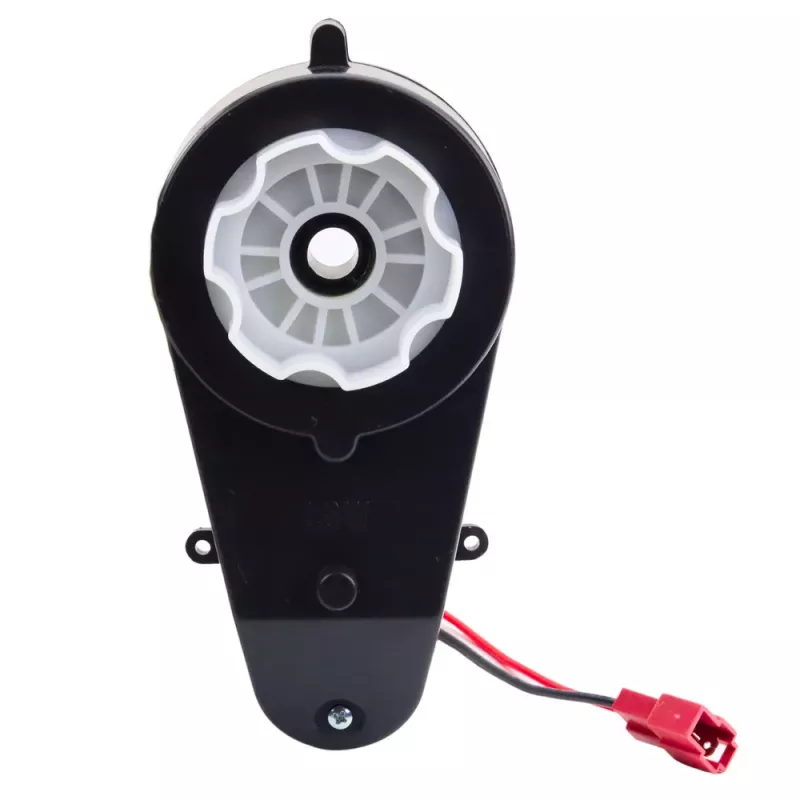

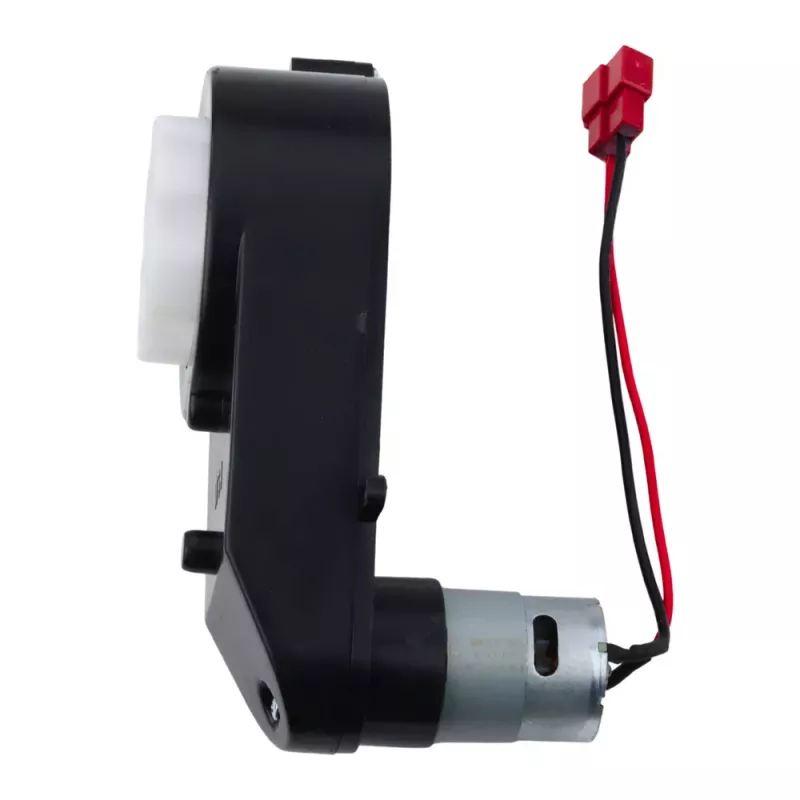

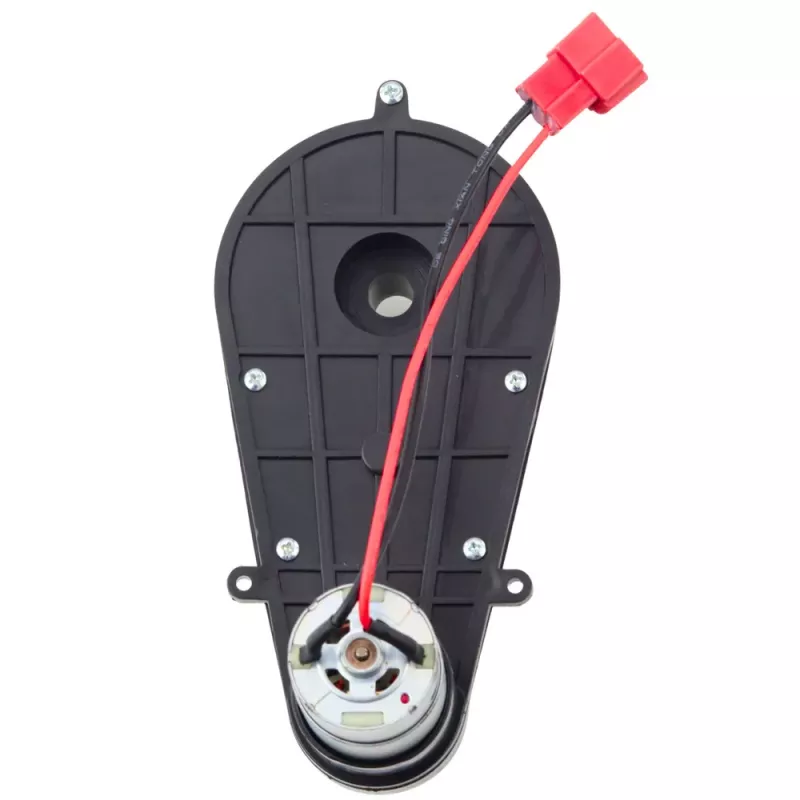

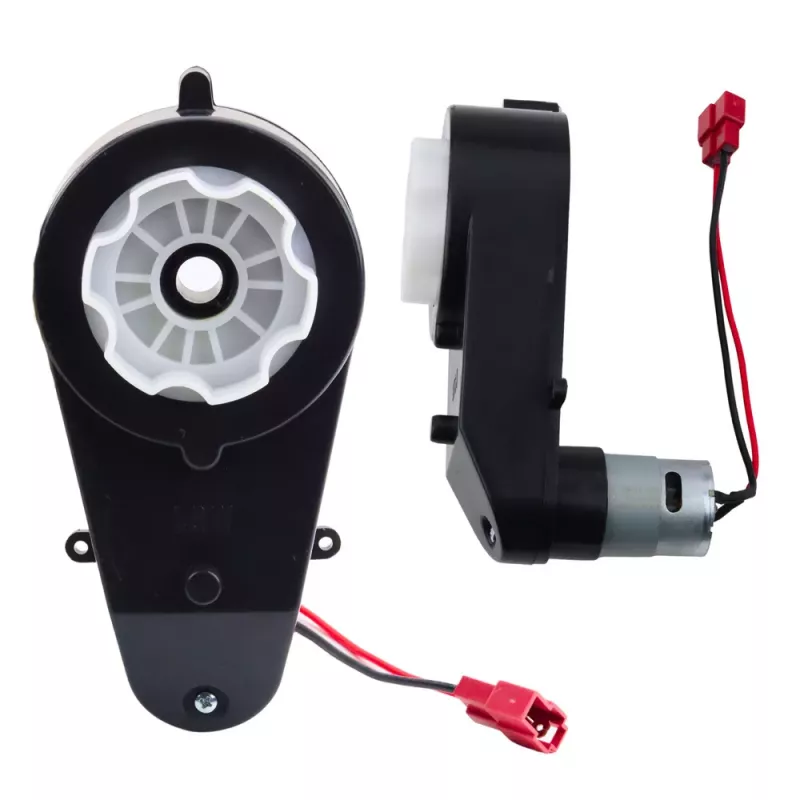

LEAN CARS Motor DC com Escovas 12V 45W RS550 35000RPM para Veículos Elétricos de Crianças

Upgrade or replace the motor in your child's electric ride-on vehicle with the LEAN CARS 12V 45W RS550 motor. This high-performance brushed DC motor delivers a no-load speed of 35000 RPM and a rated power of 45W, ensuring reliable and powerful operation for hours of driving fun. Designed for 12V systems, it features a durable steel housing with copper windings and an integrated fan for internal cooling. The motor has a 3.175 mm (1/8 inch) shaft diameter and 12 mm shaft length, with solder tab terminals for easy connection. Reversible rotation by polarity change makes it versatile for various applications. Ideal for Power Wheels, ride-on cars, and RC models.

Advantages

High torque and speed for demanding ride-on applications. Robust construction ensures long life. Integrated cooling fan prevents overheating during extended use. Simple installation with standard mounting hole spacing of 25 mm.

Suitable for

• Electric ride-on vehicles (Power Wheels, kids' cars)
• RC models and hobby projects
• Replacement motor for 12V DC motor systems

Key specifications

• Motor Type: Brushed DC Motor
• Motor Series: RS550
• Rated Voltage: 12V DC
• Rated Power: 45W
• No-load Speed: 35000 RPM
• Shaft Diameter: 3.175 mm (1/8 inch)
• Shaft Length: 12 mm
• Body Diameter: 35.8 mm
• Body Length: 57 mm
• Overall Length (incl. shaft): 75 mm
• Mounting Hole Spacing: 25 mm
• Number of Terminals: 2
• Terminal Type: Solder Tabs
• Rotation Direction: Reversible (by polarity change)
• Internal Cooling: Yes (Integrated Fan)
• No-load Current: Approx. 0.5 A
• Stall Current: Approx. 50 A
• Construction Material: Steel Housing, Copper Windings
• Operating Temperature Range: -10°C to 60°C

Recommendations

Ensure your vehicle's battery and wiring can handle the stall current of up to 50A. Use appropriate gauge wires and connectors. For best performance, pair with a compatible 12V battery and controller.
