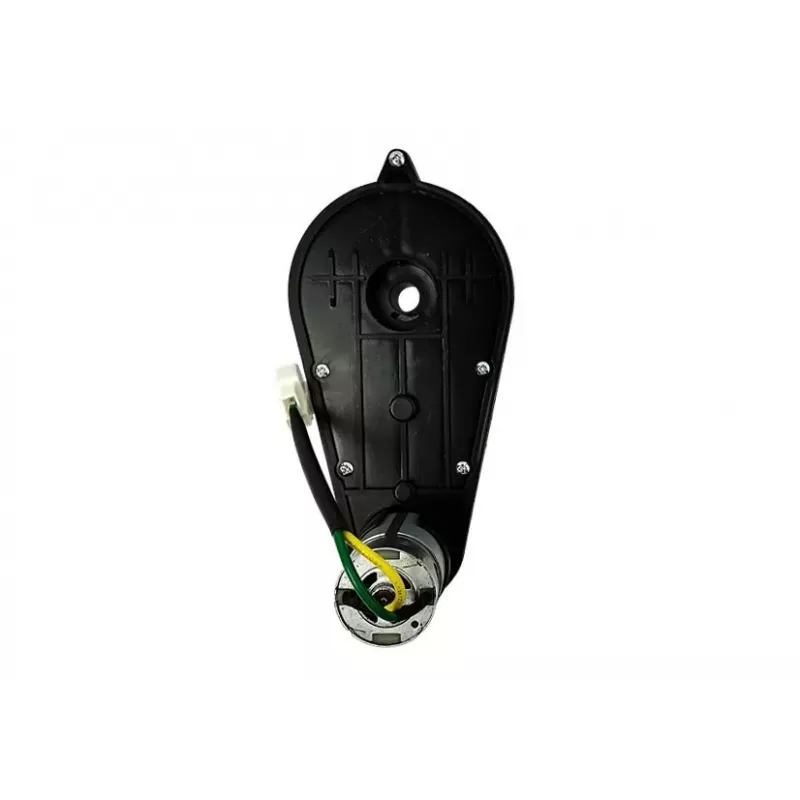

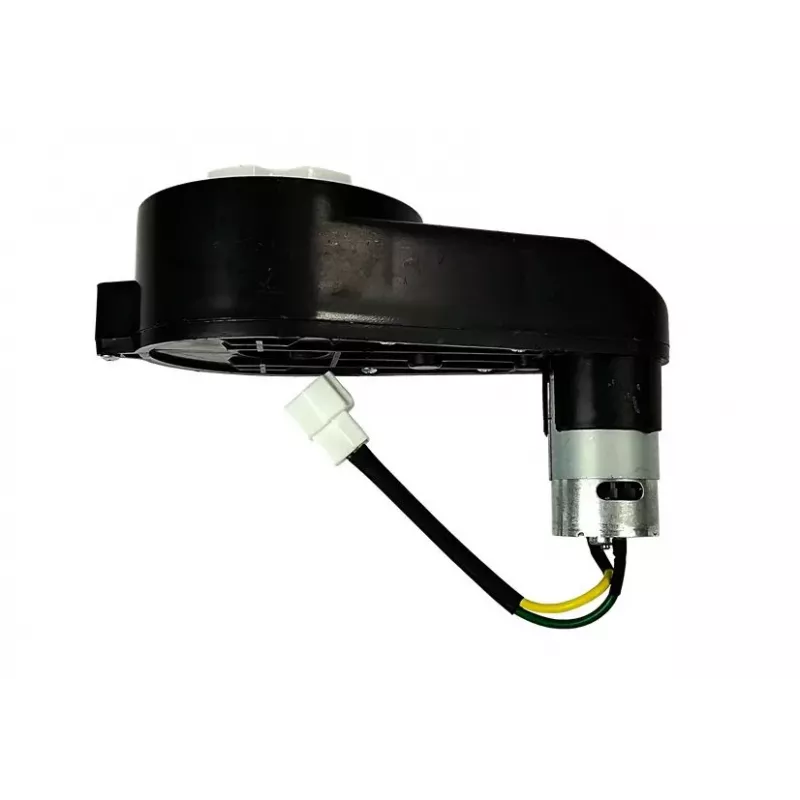

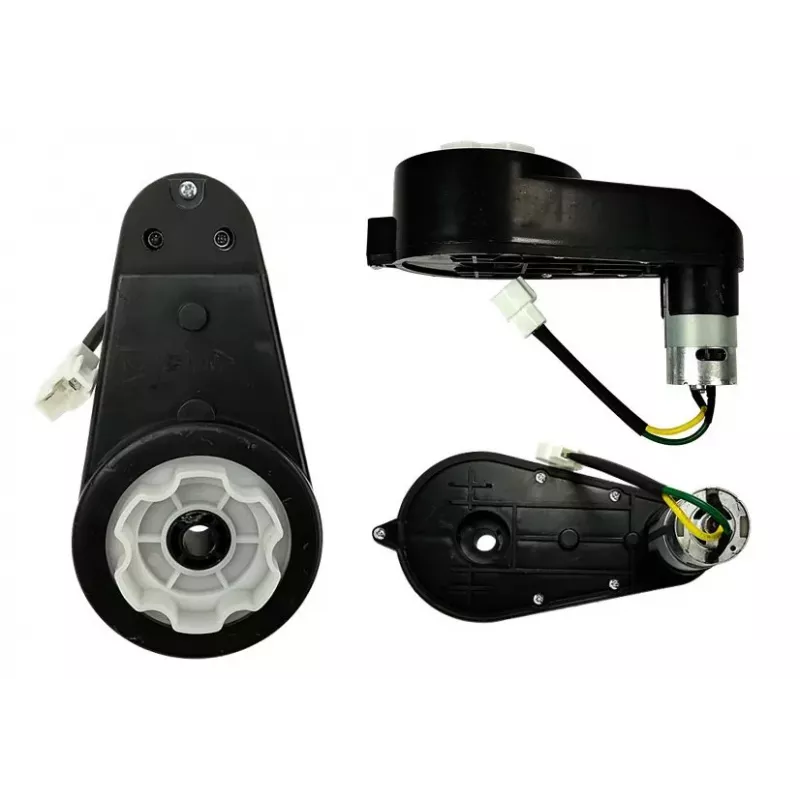

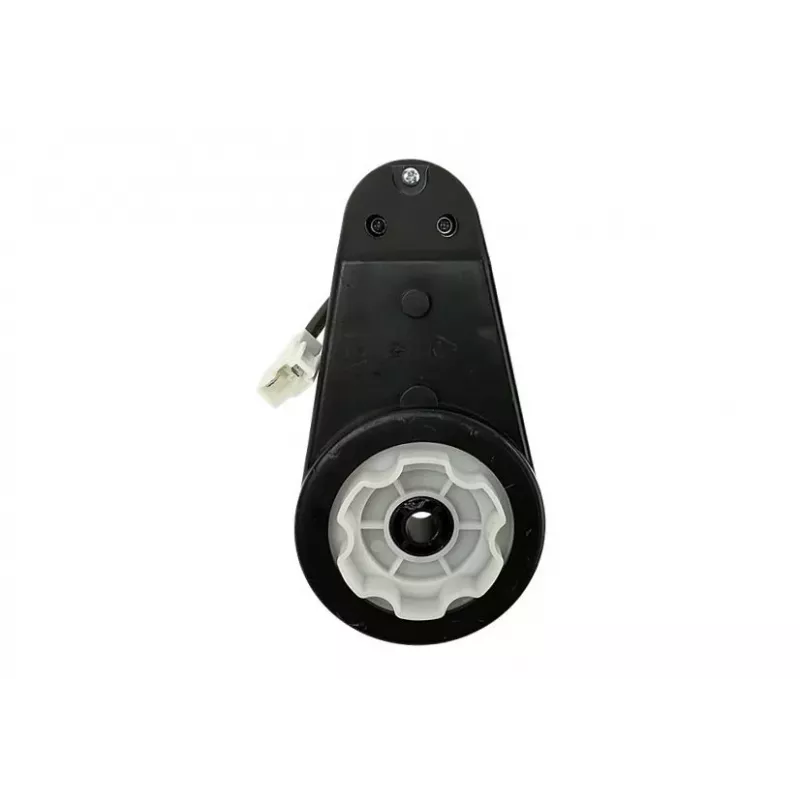

LEAN CARS Motor para carro elétrico para crianças XMX607 - Motor de corrente contínua RS390 12V 30W

This high-quality DC electric motor from LEAN CARS is specifically designed for the XMX607 electric ride-on car and other compatible models. It delivers reliable performance with a rated voltage of 12V and power output of 30W, ensuring your child's ride-on vehicle operates smoothly. The motor features a reversible rotation by changing polarity, making it versatile for various applications. Constructed with a metal casing and copper windings, it offers durability and efficient cooling via an internal fan. This motor is a direct replacement part, easy to install with solder tabs connection.

Advantages

• Reliable 12V 30W DC motor for consistent performance
• Reversible rotation for flexible installation
• Durable metal casing and copper windings
• Air-cooled design for extended motor life
• Easy solder tab connection

Suitable for

• XMX607 electric ride-on car
• Other kids' electric ride-on cars using RS390 12V 30W motors

Key specifications

• Motor Type: DC Electric Motor
• Motor Series: RS390
• Rated Voltage: 12V DC
• Rated Power: 30W
• No-Load Speed: Approx. 15000 RPM
• Shaft Diameter: 2.3 mm
• Shaft Length: 12 mm
• Motor Body Diameter: 27.7 mm
• Motor Body Length: 46.5 mm
• Mounting Holes: 2 (M2.5/M3 type)
• Mounting Hole Spacing: 16 mm
• Rotation: Reversible (by changing polarity)
• Connection Type: Solder Tabs
• Construction Material: Metal Casing, Copper Windings
• Rated Current: 2.5 A
• No-Load Current: < 0.5 A
• Gearbox Included: No (Motor only)
• Cooling: Air-cooled (via internal fan)

Recommendations

Ensure the motor is installed correctly with proper polarity for desired rotation direction. Always disconnect the battery before installation. This motor is a replacement part; check compatibility with your vehicle model.
