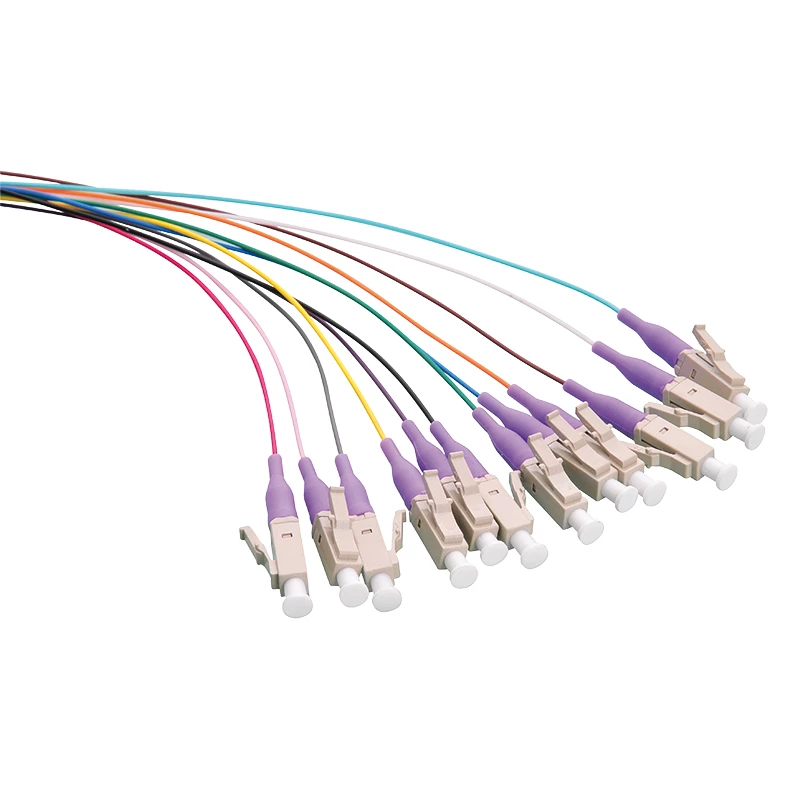

LogiLink LC OM4 Conjunto de Pigtails de Fibra Ótica, 12x 2m, 0,9mm, Aqua

Each of the 12 LC simplex pigtails in this set delivers insertion loss under 0.3 dB, ensuring clean, low-loss terminations for high-speed multimode networks.

Overview

The LogiLink FL4LC02 pigtail set provides twelve 2-metre OM4 multimode fibre pigtails, each terminated with a factory-polished LC/UPC connector. The 0.9 mm tight-buffered fibres are colour-coded aqua for OM4 identification and feature an LSZH jacket for safe indoor deployment. Designed for fusion splicing or mechanical termination in patch panels, distribution boxes, or wall outlets, this set is ideal for data centres, enterprise LAN backbones, and FTTx applications.

What stands out

• 12 factory-terminated LC simplex pigtails, ready for splicing
• OM4 50/125 µm fibre supports 10G/40G/100G Ethernet up to 550 m
• Low insertion loss ≤ 0.3 dB and return loss ≥ 30 dB for reliable links
• LSZH jacket and 0.9 mm diameter for high-density, fire-safe installations
• Ceramic ferrule with UPC polish for stable, repeatable performance

Technical details

• Fibre type: Multimode OM4 50/125 µm
• Connector: LC simplex, UPC polish, ceramic ferrule
• Cable length: 2.0 m per pigtail
• Pigtail diameter: 0.9 mm
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Operating temperature: -20°C to +70°C
• Standards: IEC 61754-20, TIA/EIA-604-10, RoHS, REACH

Our verdict

A practical, cost-effective solution for fibre termination projects—factory-polished LC connectors and OM4 performance in one convenient set.
