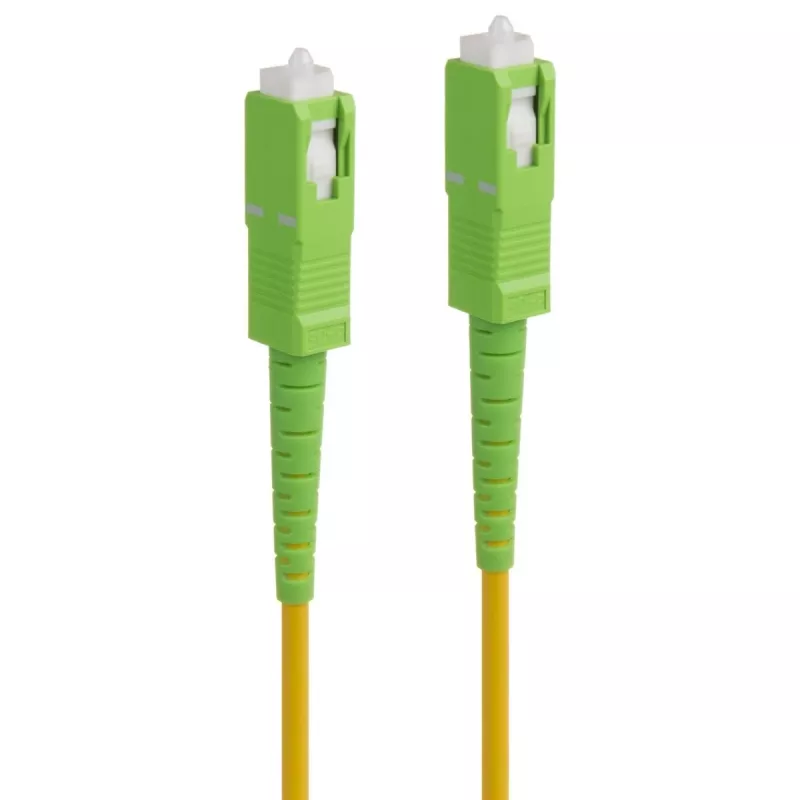

MACLEAN Cabo de patch de fibra ótica 10m SC/APC monomodo OS2 LSZH amarelo MCTV-436

The MACLEAN MCTV-436 fiber optic patch cable is a high-performance, single-mode OS2 cable designed for reliable data transmission in FTTH, telecommunications, and data center applications. With a length of 10 meters and SC/APC connectors on both ends, this cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This cable features a durable LSZH (Low Smoke Zero Halogen) jacket, making it safe for use in enclosed spaces. The APC polish reduces back reflection, and the zirconia ceramic ferrule ensures stable connectivity over 500 mating cycles. Its 3.0 mm diameter and 10 mm minimum bend radius allow for flexible installation.

Suitable for

• FTTH (Fiber to the Home) networks
• Telecommunications infrastructure
• Data center interconnects
• CATV and broadband systems

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Length: 10 meters
• Connectors: SC/APC to SC/APC
• Fiber Mode: Single-mode OS2 (G.657.A2)
• Fiber Count: Simplex (1 fiber)
• Polish: APC (Angled Physical Contact)
• Jacket: LSZH, Yellow
• Cable Diameter: 3.0 mm
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 60 dB
• Operating Wavelengths: 1310nm, 1550nm
• Operating Temperature: -20°C to +70°C
• Minimum Bend Radius: 10 mm
• Durability: 500 mating cycles
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with compatible SC/APC ports and avoid sharp bends. Suitable for indoor installations where low smoke and halogen-free materials are required.
