MAICO EZQ 25/2 B Ventilador axial de parede, DN 250, 230 V, IP55 (0083.0104)

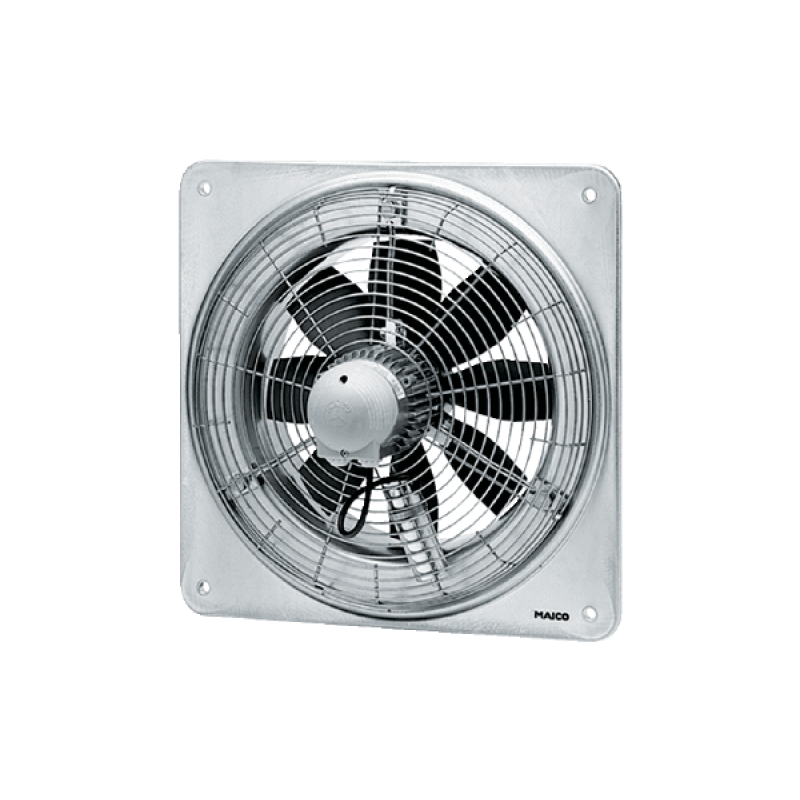

MAICO EZQ 25/2 B is a mains-powered axial ventilation fan with a square wall plate and a nominal diameter of 250 mm. It is intended for ventilation in workshops, commercial rooms, warehouses and similar spaces. The galvanized sheet-steel housing has a silver finish and an intake-side protective grille.

The fan operates from 230 V AC at 50 Hz and has IP55 protection. It can be surface-mounted on a wall or ceiling. Its eight-blade impeller uses glass-fibre-reinforced polyamide, and the motor has thermal overload protection. The standard airflow direction is extraction through the motor side.

Speed regulation requires a suitable optional controller or transformer. The fan is reversible; the manufacturer notes reduced airflow in the reverse direction. It is not intended to convey air saturated with water vapour. Installation and the required guarding must follow the manufacturer instructions. The order code is 0083.0104.
