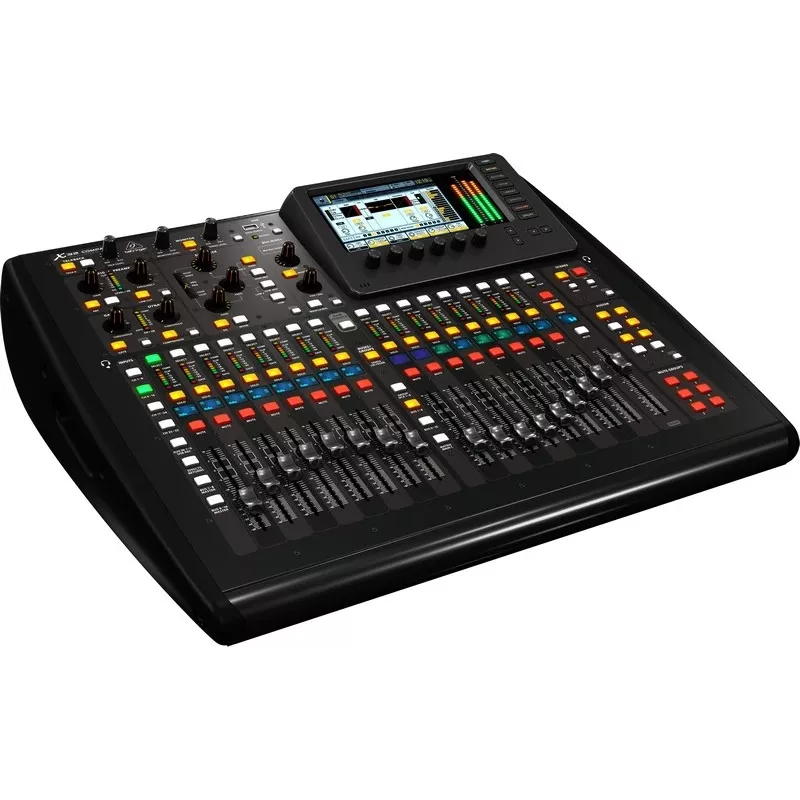

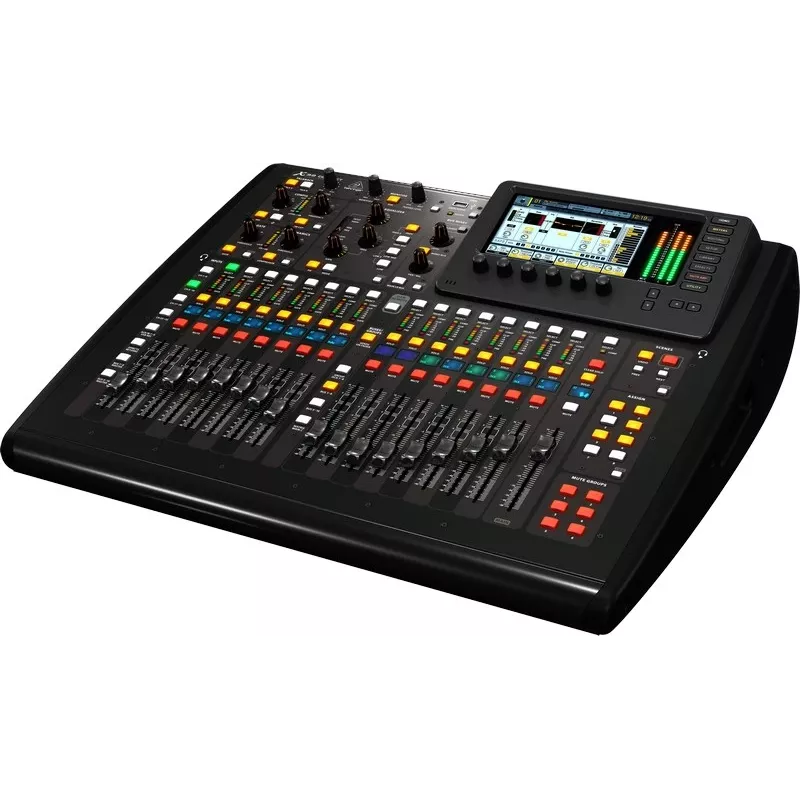

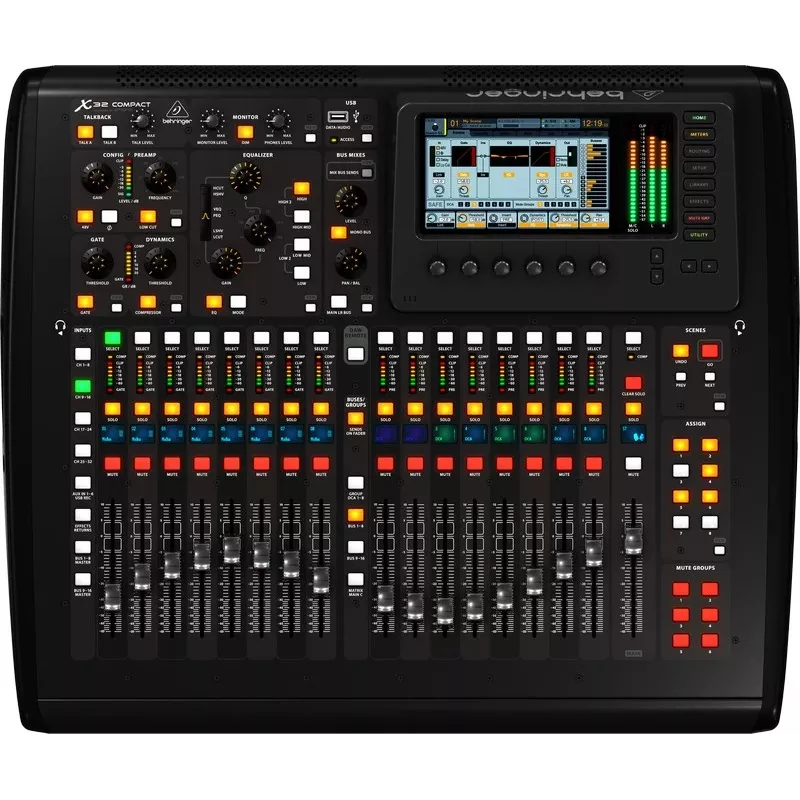

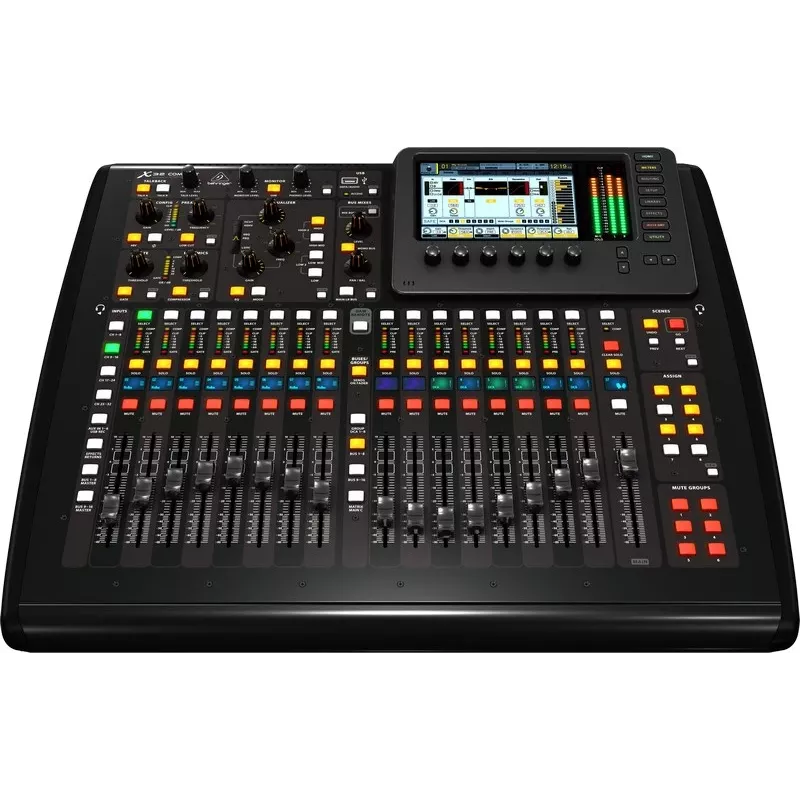

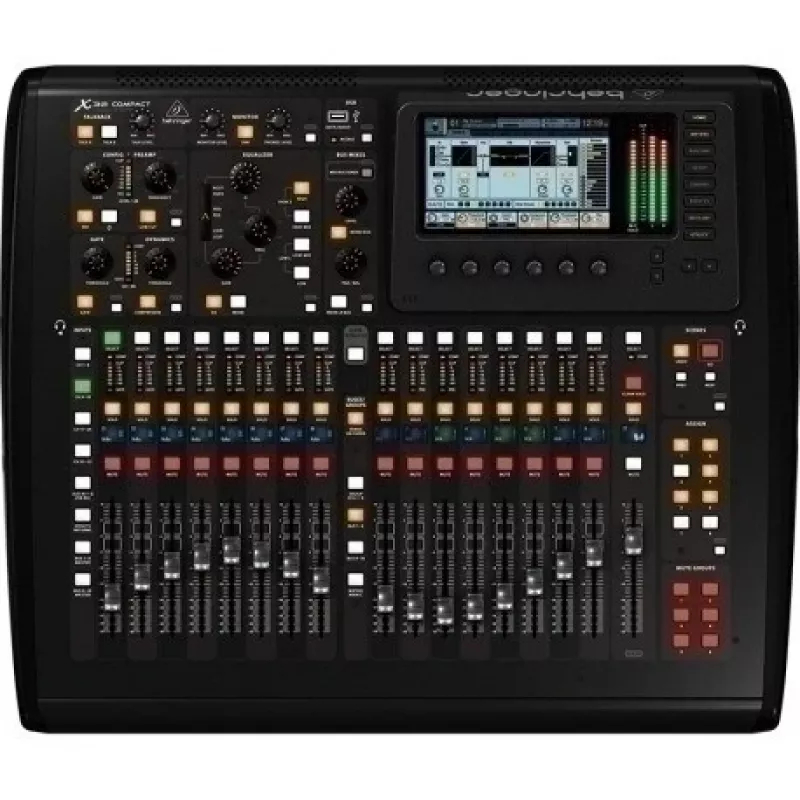

Mesa de mistura Behringer X32 Compact 40 canais 10 - 22000 Hz preto

The Behringer X32 Compact is a 40-channel digital mixing console designed for studio and live applications. It delivers 40-bit floating-point DSP processing, a wide frequency response (10–22,000 Hz) and a high-resolution 7" TFT color display. The compact form factor includes 16 MIDAS-designed programmable mic preamps, 25 motorized faders, extensive I/O and advanced routing and networking options for FOH, monitor and recording workflows. The mixer integrates a 32x32 USB 2.0 audio interface, dual AES50 ports for digital snakes, ULTRANET for personal monitoring, and a comprehensive onboard FX rack featuring studio-grade, physically modeled processors.

Advantages

The X32 Compact combines professional-grade preamps and converters with powerful DSP algorithms to provide low distortion (0.006% THD) and wide dynamic range. Motorized faders, LCD scribble strips and a contextual TFT interface enable fast, tactile control and scene recall. Flexible routing, expandable I/O via optional cards and networked remote control (Ethernet, iPad/iPhone apps) allow integration into varied live, studio and broadcast setups. Built-in effects, 100-band RTA and advanced scene/cue management reduce the need for external outboard gear.

Suitable for

• Live front-of-house mixing for small to mid-size concerts and events
• Stage monitor and personal monitoring systems with ULTRANET and P16 integration
• Studio tracking and multitrack recording via the 32x32 USB interface
• Broadcast and installation environments requiring networked audio and routing

Key specifications

• Channels: 40 input channels with 16 MIDAS-designed mic preamps
• Processing: 40-bit floating-point DSP with near-zero latency (~0.8 ms)
• Frequency response: 10–22,000 Hz
• Faders: 25 motorized 100 mm faders
• Display: 7" day-viewable color TFT and individual LCD scribble strips
• I/O: 8 XLR outputs, multiple line ins/outs, 2 phones connectors, talkback
• USB: 32 x 32 channel USB 2.0 audio interface (DAW integration, 24-bit / 44.1–48 kHz supported)
• Networking: Dual AES50 ports (SuperMAC), Ethernet remote control, ULTRANET for personal monitors
• Buses: Main LCR, 6 matrix buses, 16 mix buses, 8 DCA groups and 6 mute groups
• FX: 8 true-stereo FX slots with physically modeled algorithms and 31-band graphic EQ options

How to use

Connect microphones and line sources to the appropriate inputs, set preamp gain using the channel strip controls and assign channels to mix buses or outputs. Use the motorized faders and Scribble Strips for quick channel selection and labeling. For recording or DAW integration, connect the X32 Compact to a computer via USB and configure the 32x32 routing in your DAW. Configure AES50 or ULTRANET connections for stage boxes or personal monitor mixers as needed. Use the 7" TFT and dedicated View buttons to access EQ, dynamics, routing and FX parameters, and store scenes or snippets for recall during soundcheck or performance.

Recommendations

For live use, perform a full soundcheck and save a scene snapshot; use the 100-band RTA to identify problematic room modes and apply corrective EQ. For monitor mixes, use ULTRANET and P16 units to give performers individual control, and consider daisy-chaining S16 stage boxes via AES50 for remote preamps and long cable runs. Keep firmware updated and use optional expansion cards when integrating ADAT, MADI or Dante networks.
