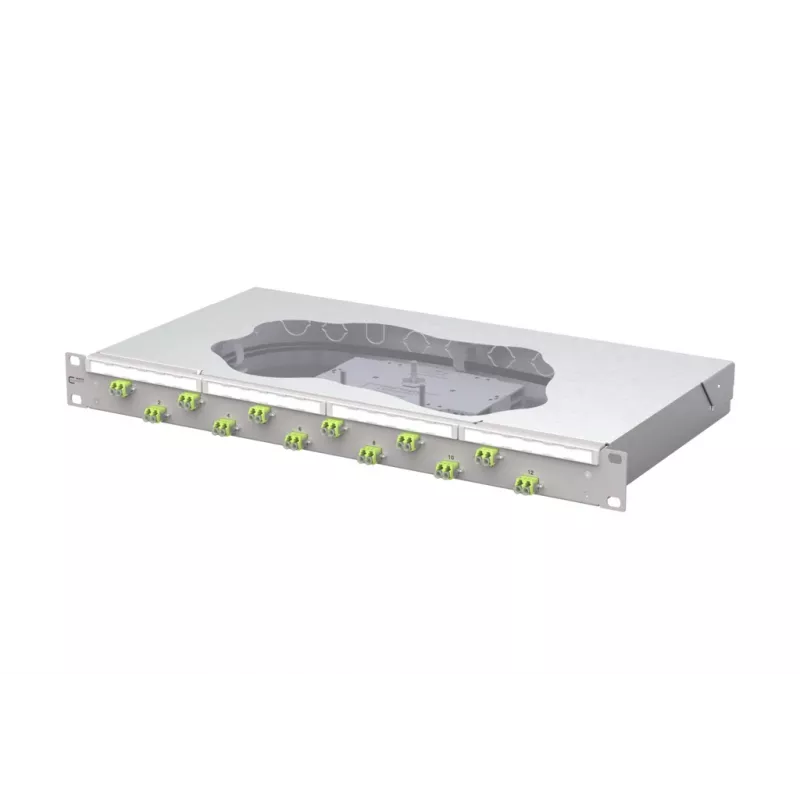

METZ CONNECT painel de patch de fusão de fibra ótica 12 portas LC Duplex OM5, 1U montagem em rack 19 polegadas, 24 fibras, pigtails de 2m, cinzento 1504587M12-F

Managing high-density fiber optic connections in data centers and enterprise networks requires a solution that combines performance, organization, and reliability. The METZ CONNECT 1504587M12-F is a 1U 19-inch rack-mount splice patch panel designed to streamline 12 LC duplex OM5 connections in a compact footprint. With 24 fibers pre-terminated with 2-meter LC pigtails, it simplifies installation and ensures consistent optical performance for high-speed multimode applications.

Who is it for

This patch panel is ideal for network administrators, data center managers, and system integrators who need to manage OM5 multimode fiber links efficiently. It suits environments where space is at a premium but high port density and easy cable management are essential, such as server rooms, telecommunications closets, and enterprise backbone installations.

Main features

• 12 LC duplex ports supporting 24 fibers in a 1U rack space
• OM5 broadband multimode fiber compatibility for high-speed data transmission
• Pre-assembled 2-meter LC pigtails for quick splicing and termination
• Integrated splice tray for organized fiber management
• Lime green adapter color for OM5 identification
• Steel sheet housing in light grey (RAL 7035) for durability
• Rear cable entry with strain relief to protect fiber connections

Specifications

• Product type: Fiber optic patch panel
• Rack units: 1U
• Mounting: 19-inch rack mount
• Number of ports: 12x LC duplex
• Number of fibers: 24
• Fiber category: OM5
• Pigtail length: 2.0 m
• Adapter color: Lime green
• Housing material: Steel sheet
• Housing color: Light grey (RAL 7035)
• Insertion loss: ≤ 0.2 dB
• Return loss: ≥ 35 dB
• Operating temperature: -10 °C to +60 °C

Tips

For optimal performance, ensure that all fiber connections are clean before mating. Use the integrated splice tray to manage excess fiber slack and maintain bend radius. When deploying OM5, verify that all components in the link, including patch cords and transceivers, are OM5-rated to achieve the desired transmission speeds.
