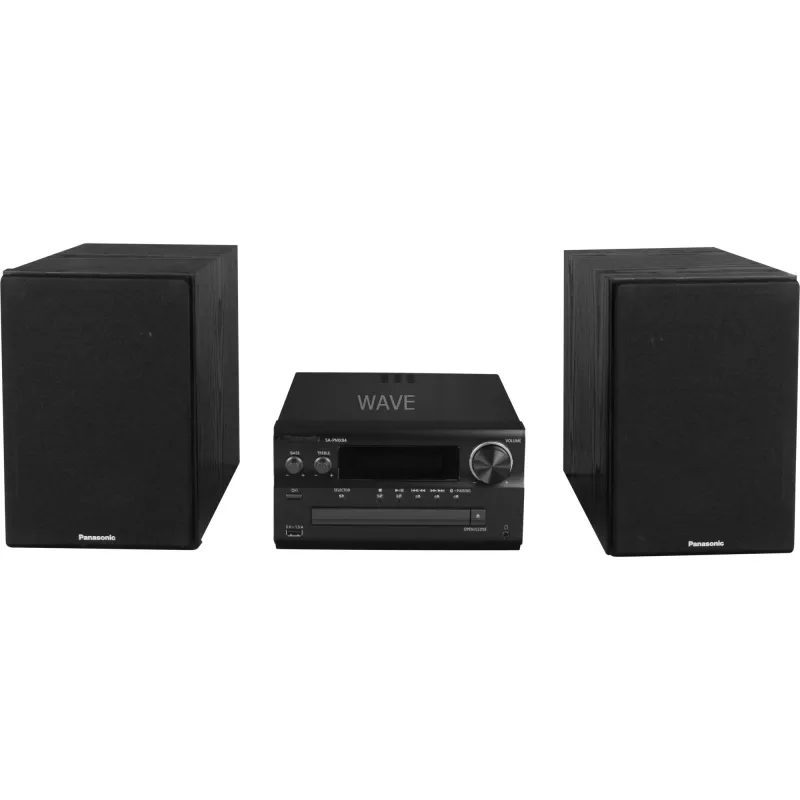

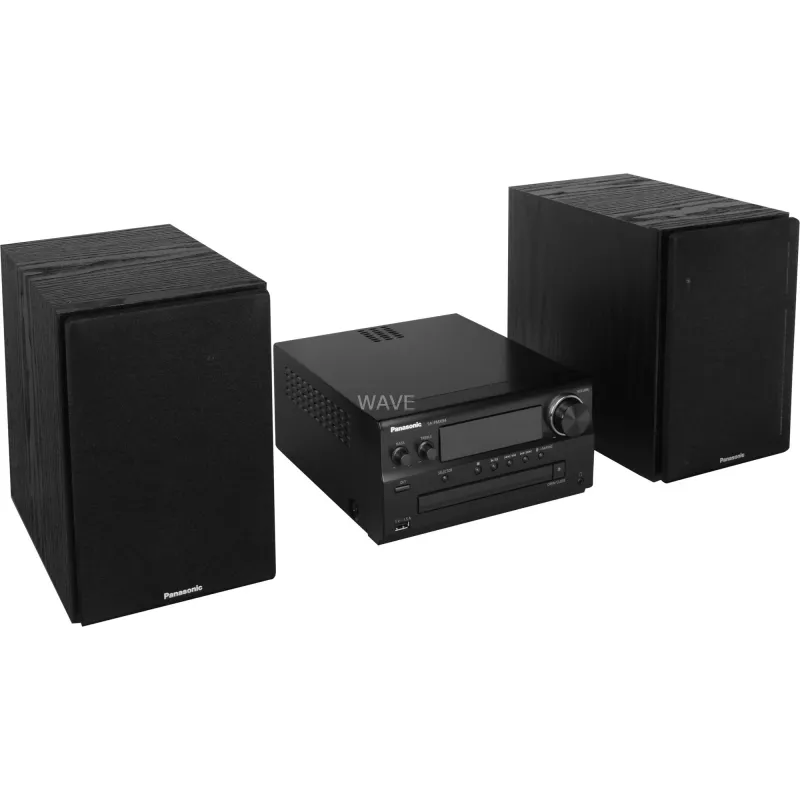

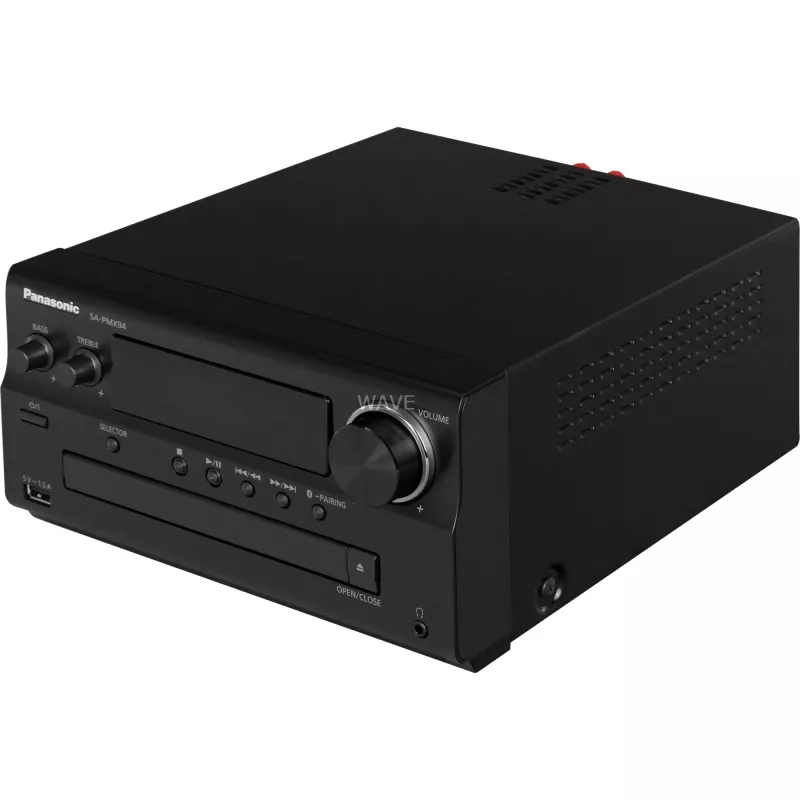

Minissistema de áudio doméstico Panasonic SC-PMX94

The Panasonic SC-PMX94 is a compact home audio mini system delivering clear, high-resolution sound with a 3-way speaker design and silk-dome tweeter. Designed for accurate reproduction up to 50 kHz, the system combines an all-digital LincsD amp and high-quality components — including aluminum electrolytic and metallized polyester film capacitors — to ensure low noise and natural tonal balance. With DAB+ and FM radio, USB DAC support for high-resolution formats, Bluetooth wireless streaming with Bluetooth Re-master, optical input for TV connection and convenient AUX/USB inputs with autoplay, the SC-PMX94 provides versatile connectivity and 120 W RMS rated power in an elegant compact black cabinet with an aluminum front and wooden speaker enclosures.

Advantages

The 3-way speaker configuration with a silk-dome tweeter yields balanced, distortion-free treble and extended frequency response. Panasonic’s 3rd generation LincsD digital amplifier reduces jitter and power-supply noise for pure, natural sound. High-quality passive components and a built-in USB DAC ensure faithful playback of high-resolution files such as FLAC and WAV. DAB+ reception offers improved digital radio quality and additional metadata, while Bluetooth with Re-master compensates for compression loss during streaming. Multiple inputs including optical, AUX and USB make the unit easy to connect to TVs, PCs and external streaming devices.

Suitable for

• Listening to high-resolution music files from a PC via USB DAC (FLAC, WAV)
• Streaming music wirelessly from smartphones and tablets via Bluetooth
• Receiving DAB+ and FM radio broadcasts with improved audio quality
• Enhancing TV audio using the optical digital input
• Connecting external players or Chromecast Audio via AUX with autoplay

Key specifications

• Model: Panasonic SC-PMX94
• Rated power: 120 W RMS (total)

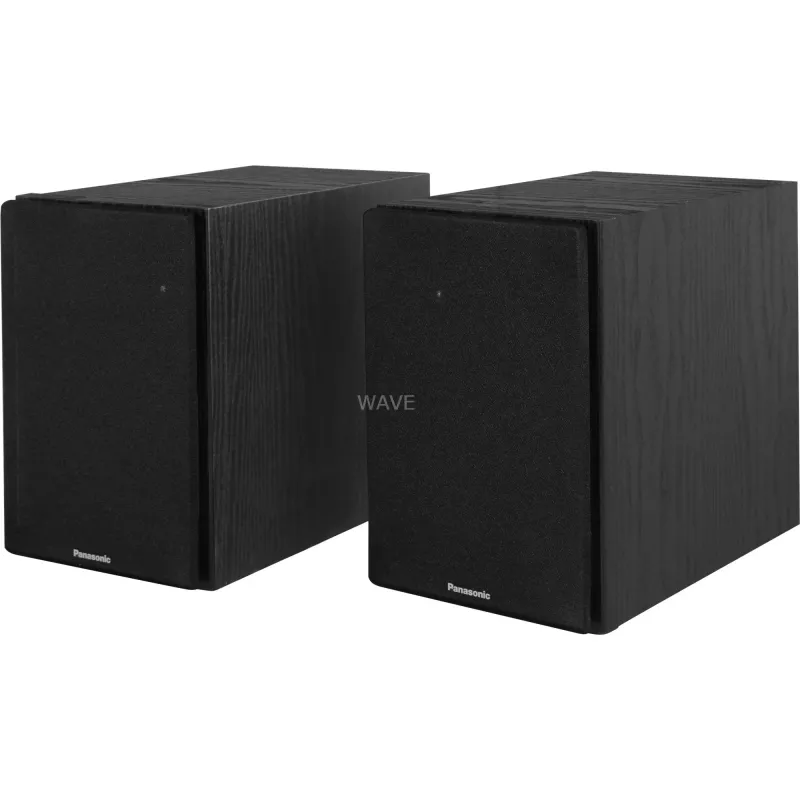

• Speaker type: 3-way system with silk-dome tweeter
• Frequency response: up to 50 kHz (speaker component capability)
• Amplifier: 3rd generation LincsD digital amplifier
• Radio: DAB+ and FM

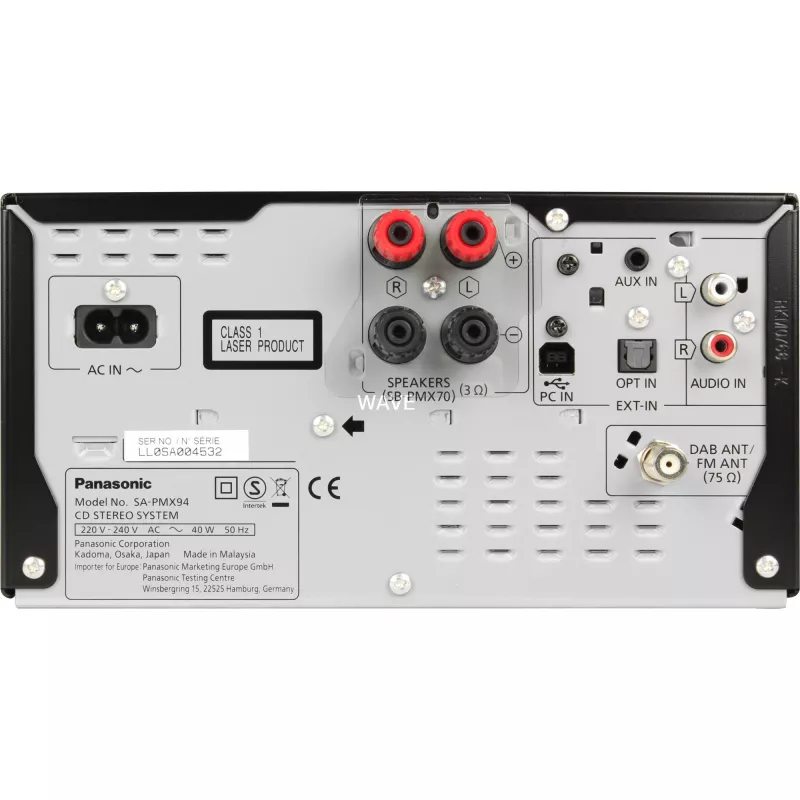

• Inputs: USB (DAC), AUX (3.5 mm), optical digital, stereo RCA
• Wireless: Bluetooth with Re-master
• Supported formats: high-resolution formats such as FLAC and WAV
• Colour: Black

How to use

Place the main unit and speakers on a stable surface and connect the speakers to the main unit following the supplied cable markings. For digital audio from a PC, connect via USB and select the SC-PMX94 as the audio device so the internal DAC handles playback of FLAC, WAV or other supported files. To stream from a smartphone, pair the device over Bluetooth and play audio from any app; Bluetooth Re-master will improve perceived quality. Use the optical input to connect a TV and select the optical source on the unit. For external players, connect via AUX or RCA; enabling autoplay will power on the system and start playback when a signal is detected at the AUX input.

Recommendations

Place the speakers at ear level and allow some space from walls to improve imaging. Use high-quality audio files and, when available, connect sources via USB or optical for best sound. Keep firmware and source device drivers up to date to ensure optimal USB DAC performance.
