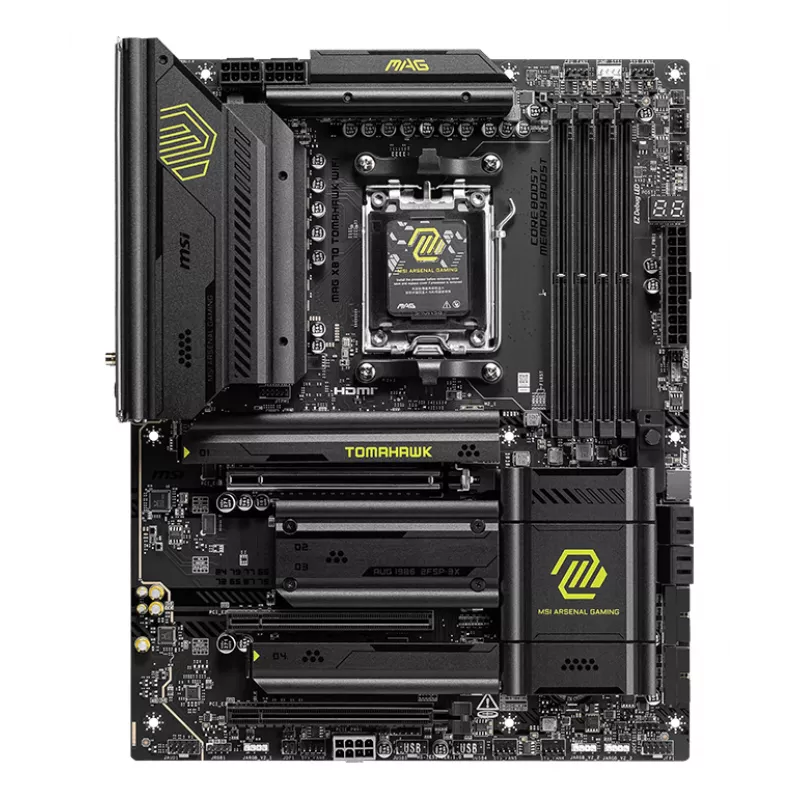

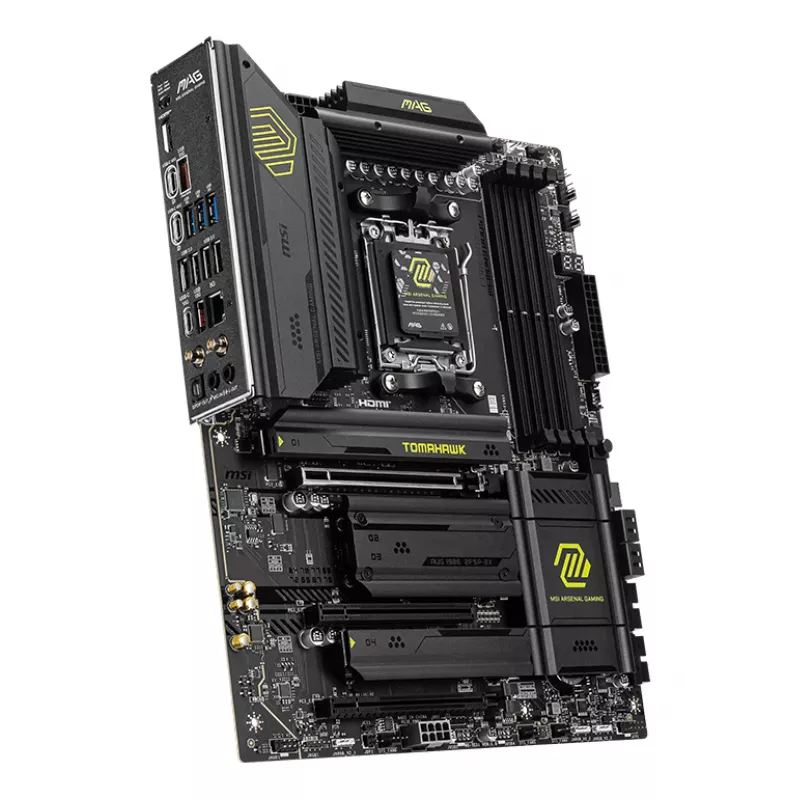

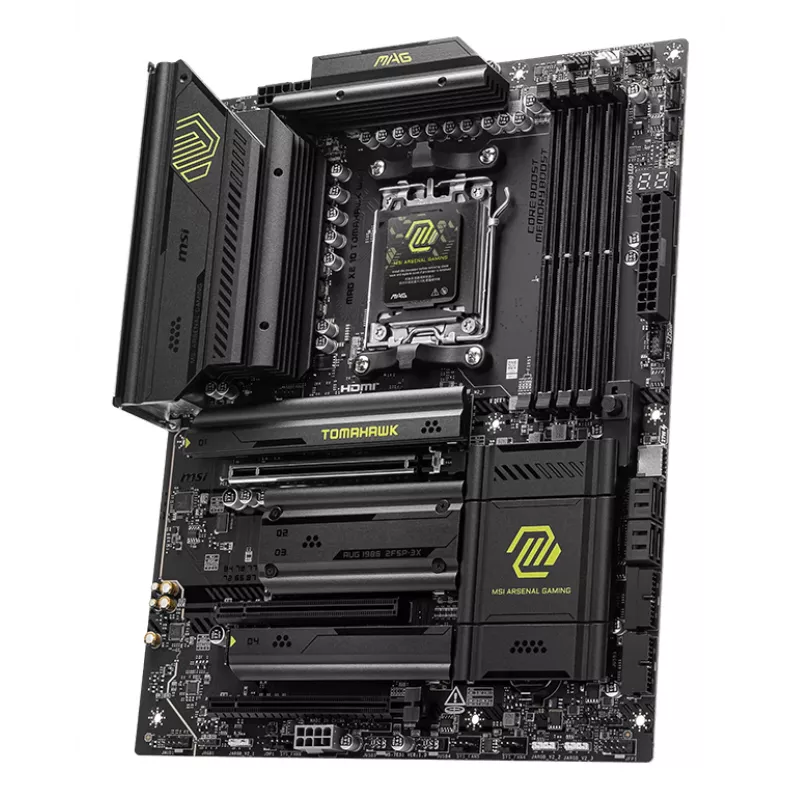

Motherboard MSI MAG X870 TOMAHAWK WIFI — AMD X870, Socket AM5, ATX, DDR5, Wi‑Fi 7, 2,5GbE

The MSI MAG X870 TOMAHAWK WIFI is an ATX motherboard for AMD Ryzen™ 7 processors using the Socket AM5. It supports DDR5-SDRAM in four DIMM slots, offers multiple storage interfaces including M.2 and SATA III, and provides wired and wireless networking with 2.5 Gigabit Ethernet and integrated Wi‑Fi and Bluetooth.

Advantages

The board combines a modern AMD X870 chipset with an ATX layout that accommodates standard PC components. With four DDR5 DIMM slots it supports higher memory bandwidth; multiple M.2 slots and SATA III ports enable flexible storage configurations. Integrated Wi‑Fi and Bluetooth reduce the need for additional adapters, while a 2.5 Gb LAN port and a range of USB Type‑A and Type‑C ports provide broad connectivity for peripherals.

Suitable for

• Building a mid‑to‑high performance desktop based on AMD Ryzen™ 7 CPUs
• Systems requiring multiple fast NVMe M.2 SSDs and SATA drives
• Home or office PCs needing reliable wired and wireless networking
• Users who need numerous USB ports including Type‑C for peripherals

Key specifications

• Form factor: ATX
• Chipset: AMD X870
• CPU socket: Socket AM5 (for AMD Ryzen™ 7000 series)
• Memory support: DDR5‑SDRAM, 4 × DIMM slots, dual‑channel capable
• Storage interfaces: M.2 and SATA III

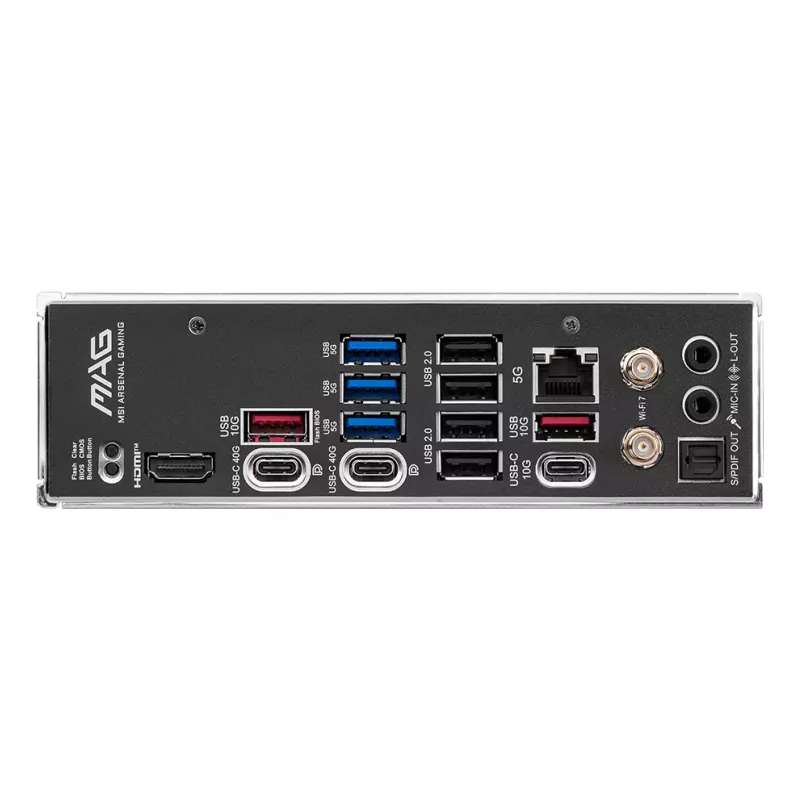

• USB: 4 × USB 2.0, 6 × USB 3.2 Gen 1 Type‑A, 2 × USB 3.2 Gen 1 Type‑C, 2 × USB 3.2 Gen 2 Type‑A
• Video output: 1 × HDMI
• LAN: 2.5 Gigabit Ethernet (RJ‑45)
• Audio: 7.1 channel onboard audio
• Wireless: Wi‑Fi and Bluetooth integrated

How to use

Install the motherboard into an ATX‑compatible case, mount an AM5‑socket AMD Ryzen™ 7 CPU and attach the CPU cooler according to the cooler manufacturer’s instructions. Populate DDR5 DIMM modules across the four slots following the manual’s recommended slot population for dual‑channel operation. Connect storage devices to available M.2 slots or SATA III ports, attach power from the PSU to the 24‑pin ATX and CPU power connectors, and connect front panel headers, fans and case I/O. Install the operating system and chipset drivers provided by MSI to enable full functionality of networking, audio and USB ports.

Recommendations

For stable performance, use matched-pair DDR5 memory modules of the same capacity and recommended speed, ensure adequate case airflow for VRM and M.2 cooling, and keep chipset and BIOS firmware up to date via MSI support resources.
