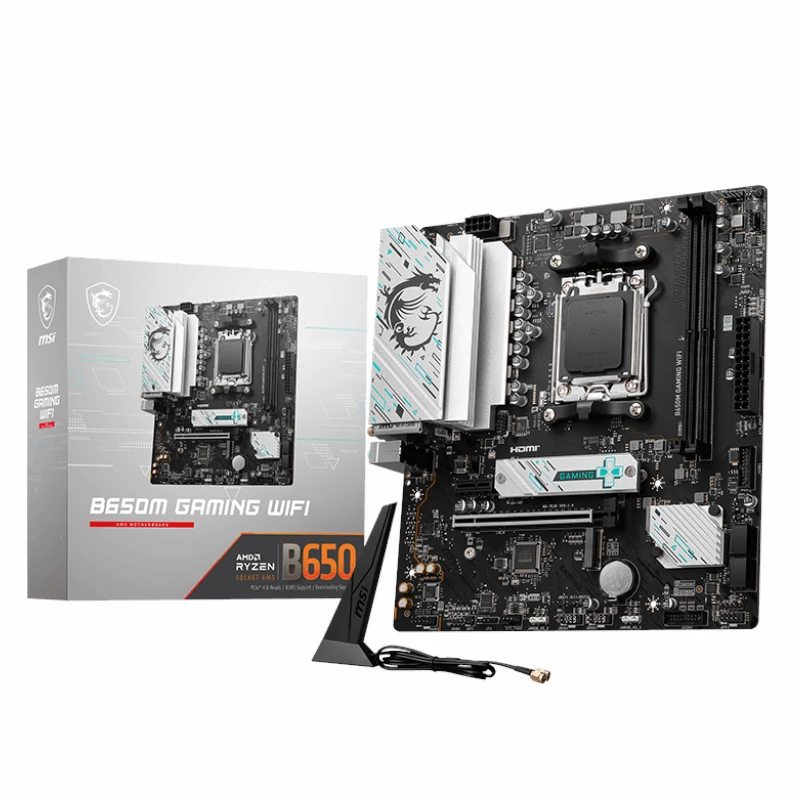

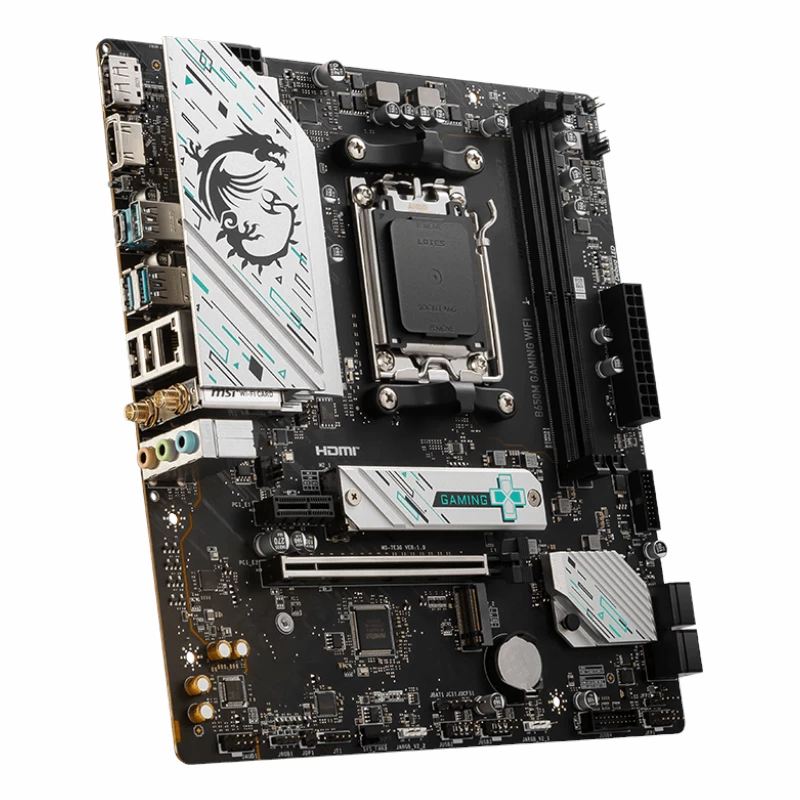

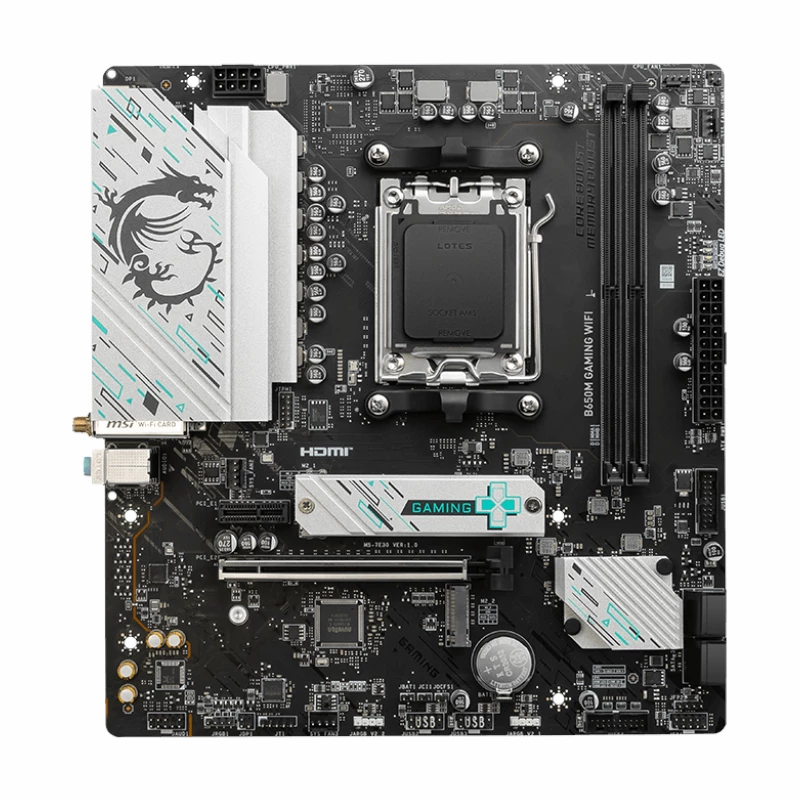

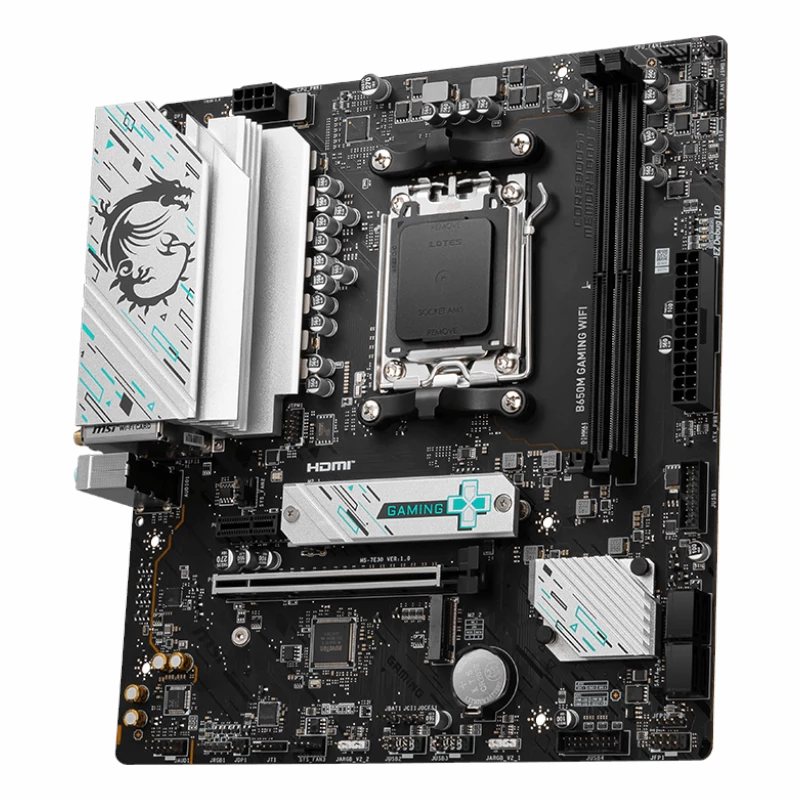

MSI B650M GAMING WIFI AMD AM5 mATX placa-mãe gaming

Building a high-performance gaming PC on the AMD AM5 platform demands a motherboard that balances power delivery, connectivity, and compact design. The MSI B650M GAMING WIFI answers that call, offering a robust foundation for Ryzen 7000 series processors in a micro-ATX form factor that fits neatly into smaller cases without sacrificing essential features.

Who is it for

This board is ideal for gamers and PC builders who want the latest DDR5 memory and PCIe 4.0 storage speeds in a space-efficient build. It suits those who need integrated Wi-Fi 6E and 2.5G Ethernet for flexible networking, and who appreciate a clean aesthetic with customizable RGB lighting.

Main features

• Supports AMD Ryzen 7000 series processors on the AM5 socket
• DDR5 memory support up to 128GB with overclocking speeds beyond 7200MHz
• 12+2+1 Duet Rail Power System for stable CPU power delivery
• Two M.2 slots with PCIe 4.0 x4 for ultra-fast NVMe SSDs
• AMD Wi-Fi 6E and Bluetooth 5.2 for wireless connectivity
• Realtek 2.5Gbps Ethernet for high-speed wired networking
• HDMI 2.1 and DisplayPort 1.4 outputs for integrated graphics
• Micro-ATX form factor for compact builds

Specifications

• CPU Socket: AMD AM5
• Chipset: AMD B650
• Memory: 4x DDR5 DIMM slots, max 128GB, speeds up to 7200+ MHz (OC)
• Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
• Storage: 2x M.2 (PCIe 4.0 x4), 4x SATA 6Gb/s
• Networking: Realtek RTL8125BG 2.5G Ethernet, AMD Wi-Fi 6E, Bluetooth 5.2
• Audio: Realtek ALC897 7.1-Channel HD Audio

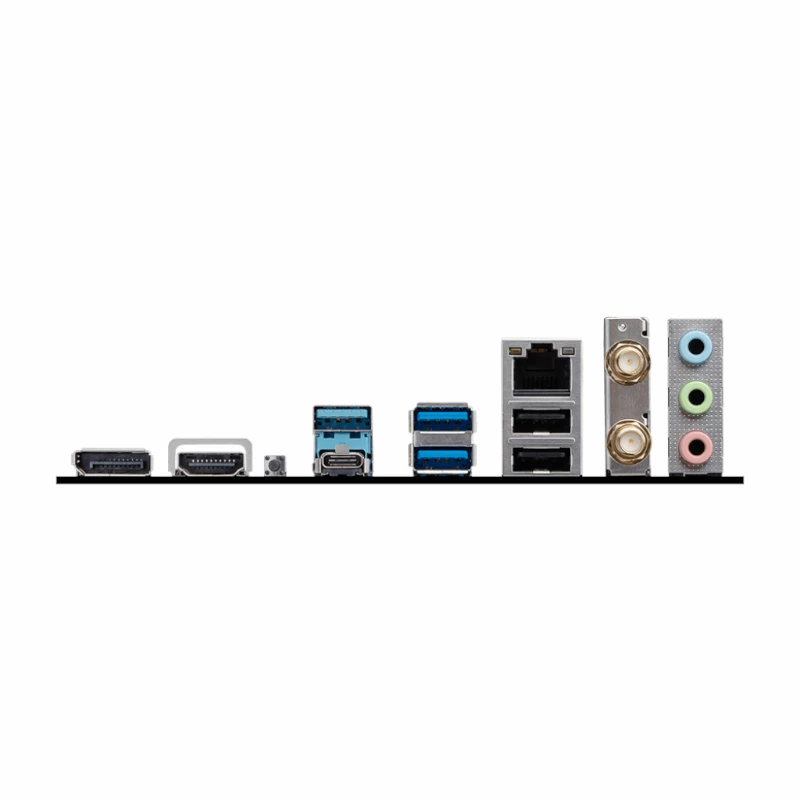

• Rear USB: 1x USB 3.2 Gen 2x2 Type-C, 3x USB 3.2 Gen 2 Type-A
• Video Outputs: 1x HDMI 2.1, 1x DisplayPort 1.4
• Form Factor: Micro-ATX
• RGB Headers: 2x ARGB (3-pin), 2x RGB (4-pin)

Tips

Pair this motherboard with a Ryzen 7 7800X3D for exceptional gaming performance, and use a high-quality DDR5 kit rated for 6000MHz or higher to take full advantage of the memory overclocking headroom. Ensure your case supports micro-ATX and has adequate airflow for the VRM heatsinks.
