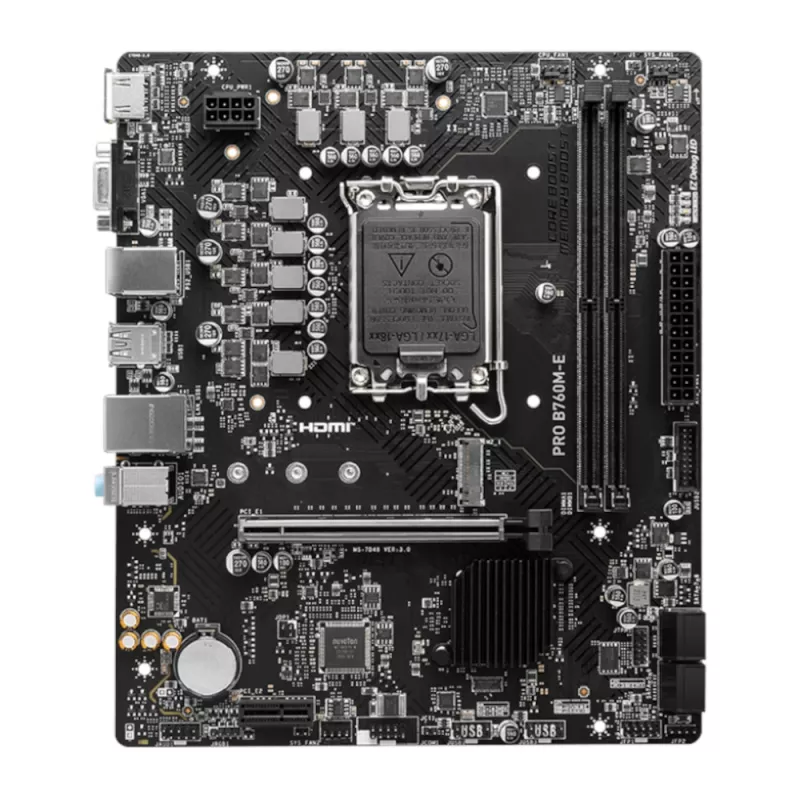

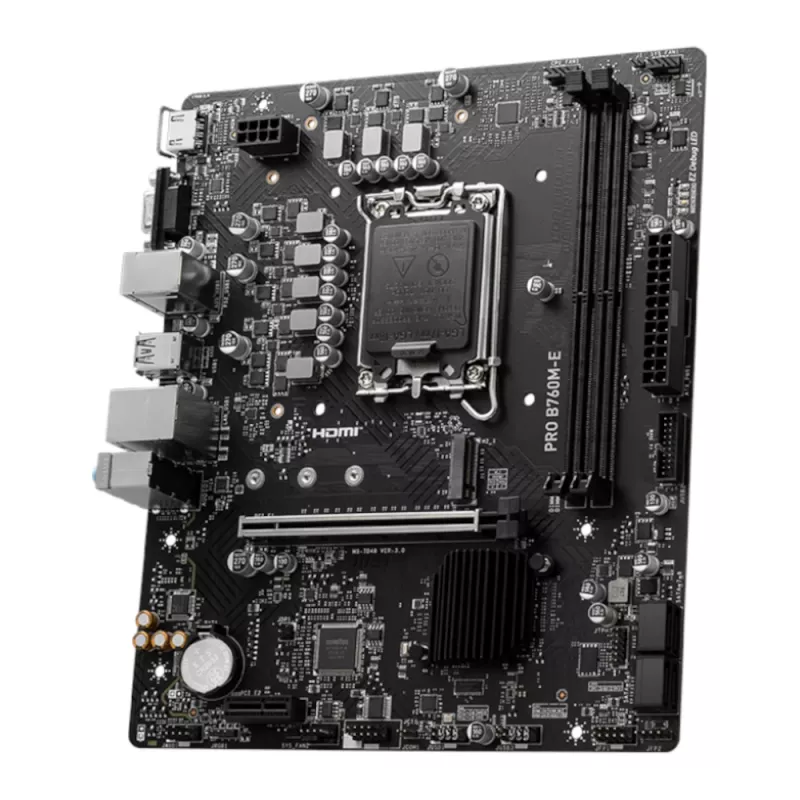

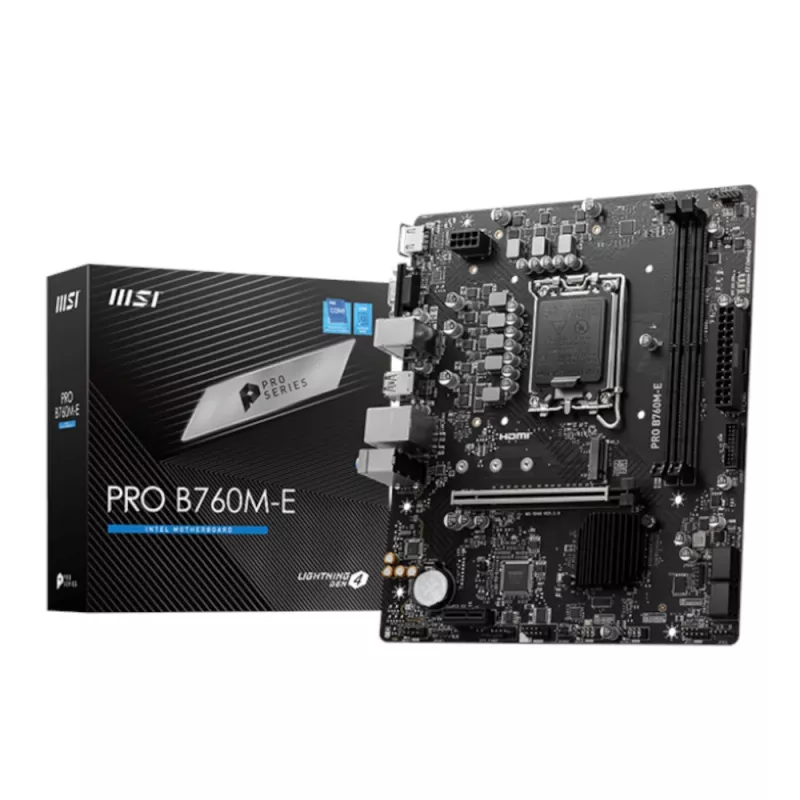

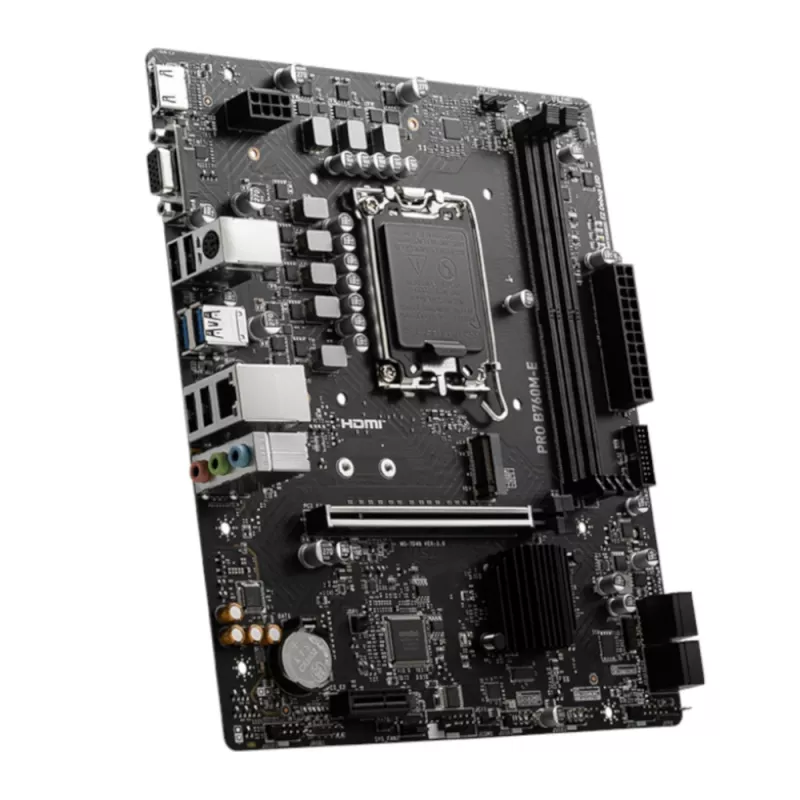

MSI PRO B760M-E DDR5 LGA1700 placa-mãe Micro-ATX

Building a compact yet capable desktop for daily productivity, light gaming, or a home server? The MSI PRO B760M-E DDR5 gives you Intel's latest LGA1700 platform in a space-saving Micro-ATX form factor, ready for 12th and 13th Gen Core processors. With DDR5 memory support up to 96 GB and PCIe 4.0 connectivity, it handles modern workloads without taking over your desk.

Key specifications

• Intel B760 chipset, LGA1700 socket for 12th/13th Gen Intel Core, Pentium, and Celeron processors
• 2x DDR5 DIMM slots, up to 96 GB, speeds up to 6400+ MHz (OC)
• 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot
• 1x M.2 PCIe 4.0 x4 slot, 4x SATA 6Gb/s ports
• Rear I/O: 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0 Type-A, HDMI 2.1, DisplayPort 1.4, VGA
• Realtek RTL8111H Gigabit Ethernet, Realtek ALC897 7.1-channel audio
• Micro-ATX form factor (24.4 x 22.5 cm)

Why choose it

The PRO B760M-E DDR5 balances essential features with future-ready DDR5 memory support. Its reinforced PCIe 4.0 slot and M.2 connector ensure stable performance for graphics cards and NVMe SSDs. MSI's Core Boost technology delivers clean power to the CPU, while the extended heatsink design keeps VRMs cool under load. The board also includes MSI's easy-to-use Click BIOS 5 and supports Windows 10 and 11 out of the box.

Ideal use cases

• Office PCs and home workstations requiring reliable multi-tasking
• Entry-level gaming rigs with a dedicated GPU
• Compact media centers or HTPCs with 4K video output via HDMI/DP
• Small business desktops needing dependable wired networking

Good to know

This board does not include Wi-Fi or Bluetooth; use the Gigabit Ethernet port for networking. It supports non-ECC, unbuffered DDR5 memory only. For integrated graphics, the HDMI 2.1 port can output up to 4K@60Hz, while DisplayPort 1.4 supports higher refresh rates. The VGA port is handy for legacy monitors. The M.2 slot shares bandwidth with SATA? No—the M.2 slot uses PCIe lanes, so all four SATA ports remain available simultaneously.
