Multibrackets M Pro Series caixa 43 polegadas pequena preto aço horizontal/vertical

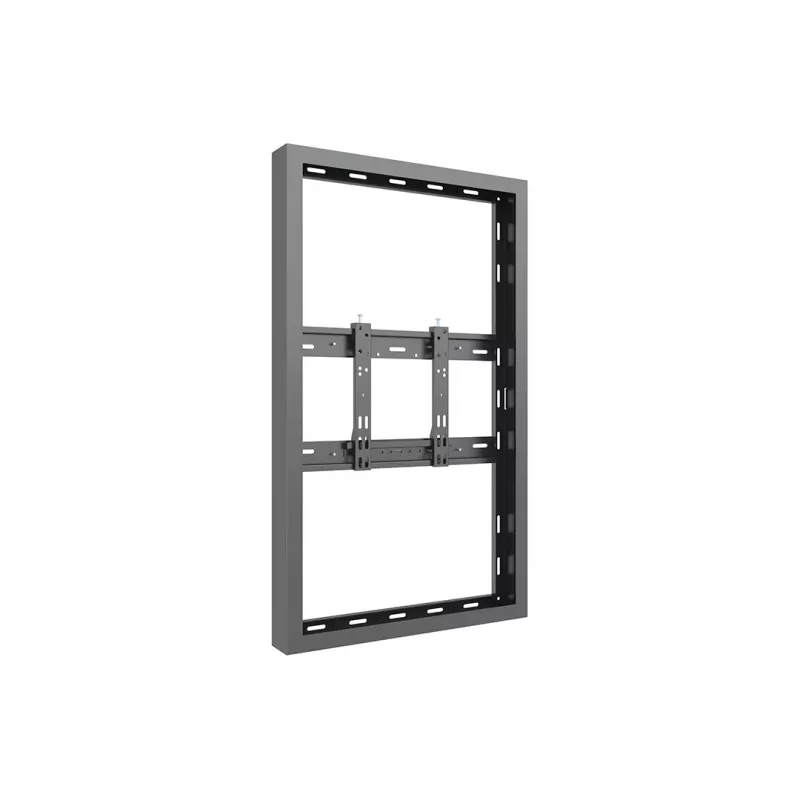

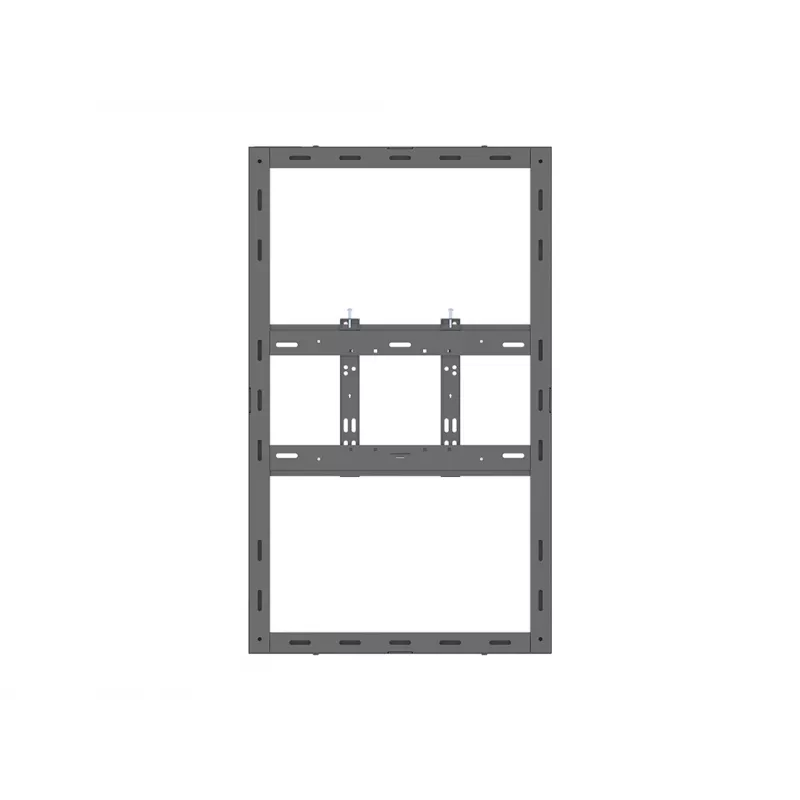

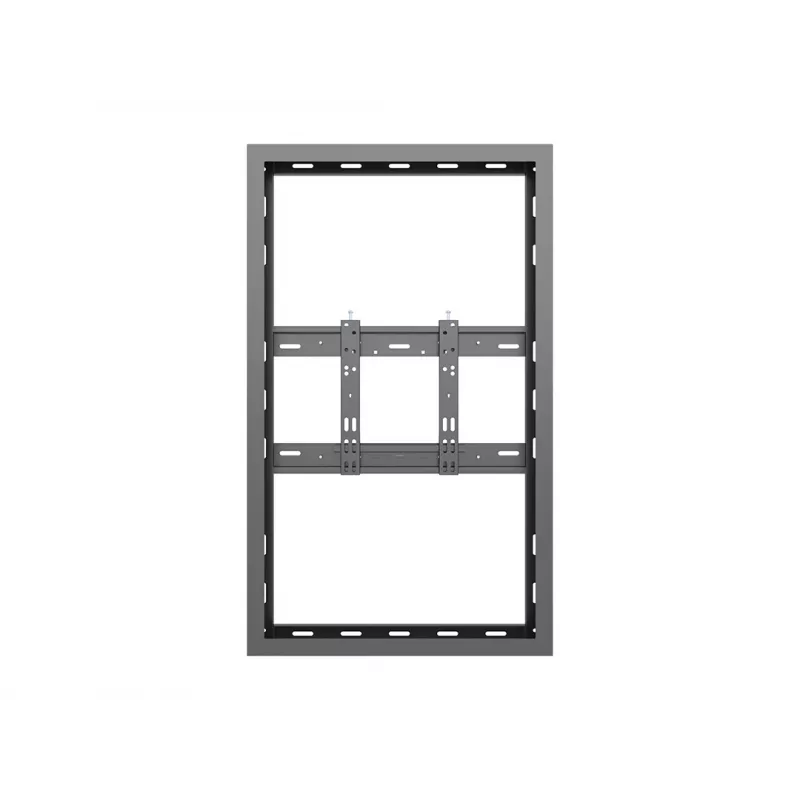

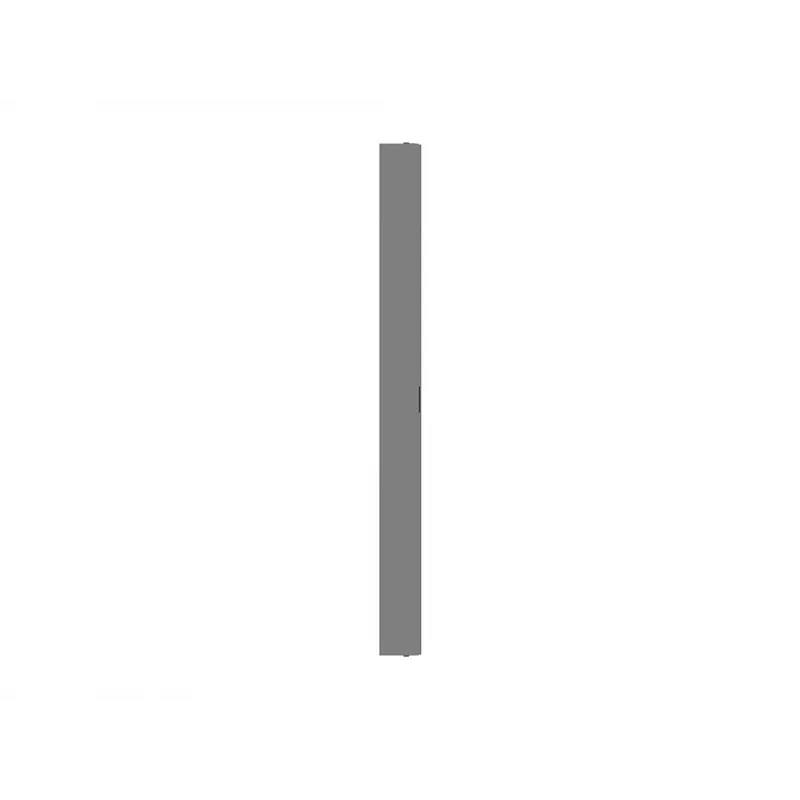

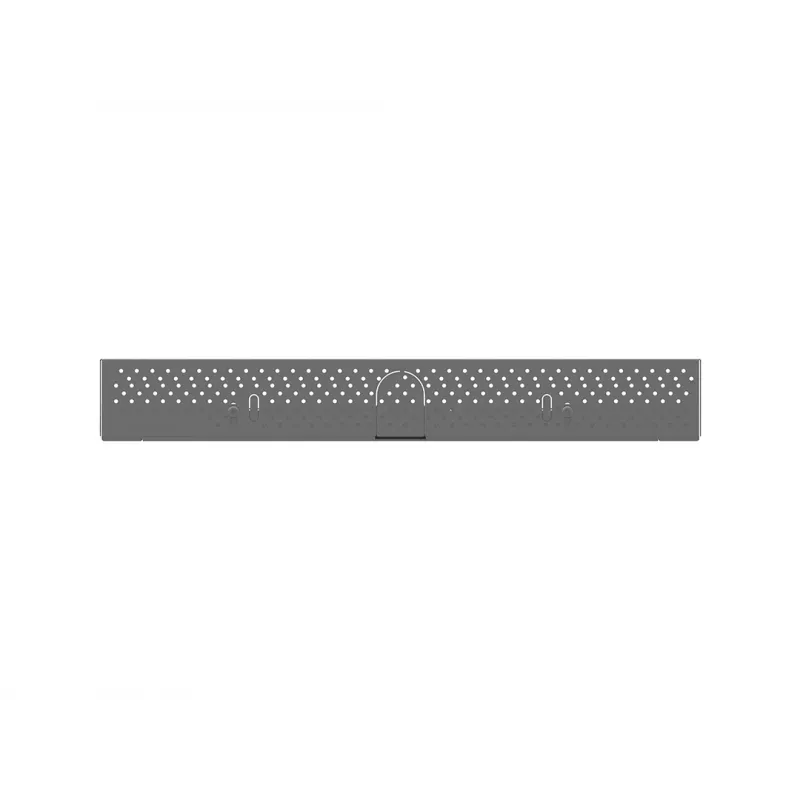

The M Pro Series Enclosure 43" Small Black is a steel casing designed to house 43" digital signage displays in either landscape or portrait orientation. Its depth-adjustable exterior frame and reversible hinges allow compatibility with a wide range of display brands while maintaining a minimal, black finish. The enclosure offers passive cooling vents with options for active thermal management, tamperproof security hardware, and construction that compensates for uneven walls to keep the front frame flat. Dimensions and construction make it suitable for fixed wall mounting as well as integration with floor stands, ceiling mounts or floor-to-ceiling installations.

Advantages

The enclosure provides a versatile mounting solution that fits most 43" displays and supports up to 25 kg with a maximum VESA of 600 x 400. Its depth-adjustable frame and reversible hinges simplify installation and service access. Integrated passive cooling plus optional active thermal management help protect internal electronics. Built-in compensation for uneven walls ensures a flush front appearance, and tamperproof security hardware increases protection for mounted displays.

Suitable for

• Indoor digital signage in retail and corporate environments
• Portrait or landscape information displays in public spaces
• Wall-mounted menu boards and wayfinding screens
• Installations requiring secure or vandal-resistant enclosures

Key specifications

• Maximum screen size: 43"
• Maximum weight capacity: 25 kg
• Maximum VESA mount: 600 x 400
• Product colour: Black
• Material: Steel

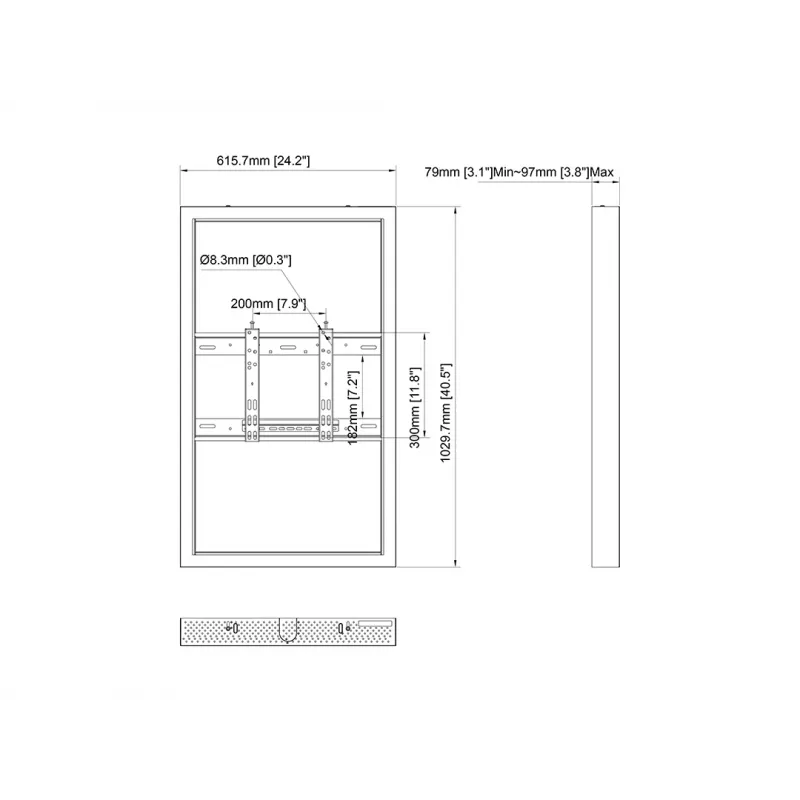

• Dimensions (W × D × H): 615.7 mm × 97 mm × 1029.7 mm

How to use

Mount the enclosure to a suitable, load‑bearing wall surface following the included installation instructions and local building regulations. Adjust the depth‑adjustable exterior frame to match the thickness and mounting points of your display, then fit the display using the compatible VESA mounting pattern (up to 600 × 400). Use the reversible hinges to set the preferred opening orientation and secure all tamperproof hardware once installation and cable routing are complete. If needed, select optional active thermal management components according to the environmental requirements of the installation.

Recommendations

For reliable operation, install the enclosure indoors on stable walls and ensure adequate ventilation around the unit. Do not exceed the specified maximum weight and VESA dimensions. For public or high-traffic locations consider additional locking or mounting accessories and regular maintenance checks to ensure vents remain unobstructed.
