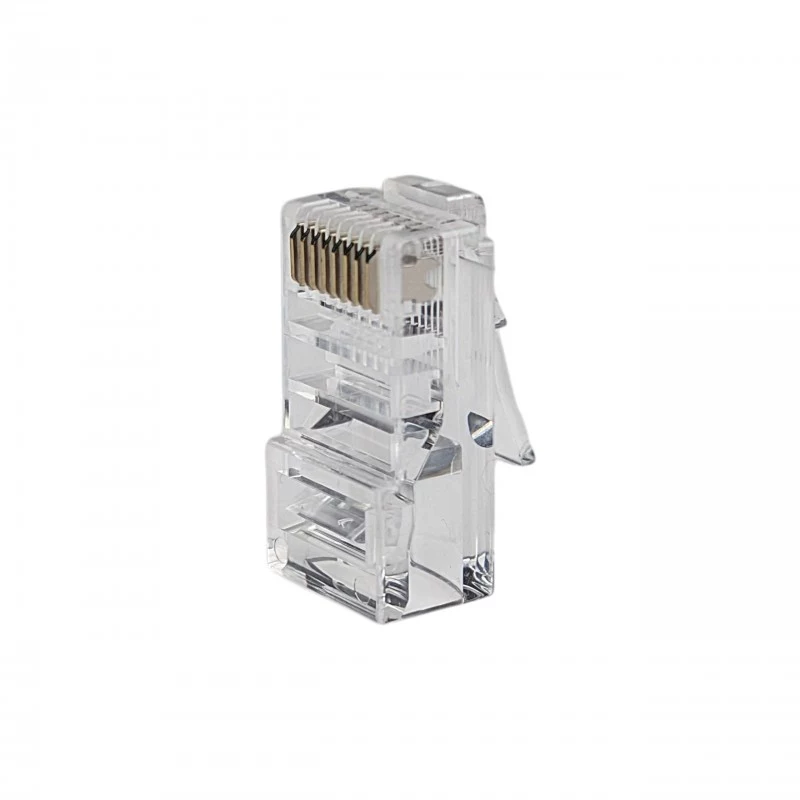

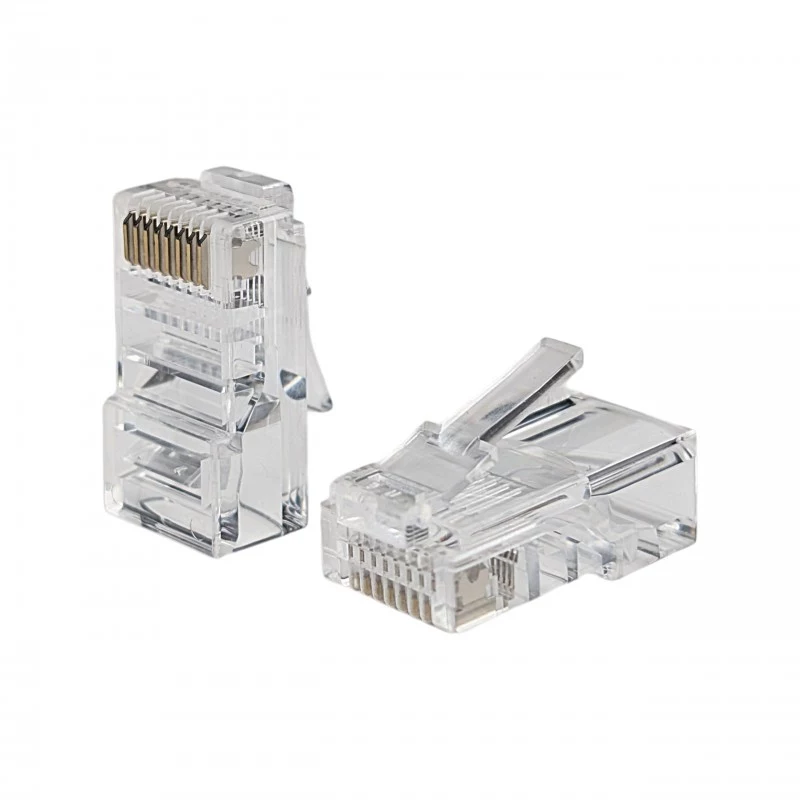

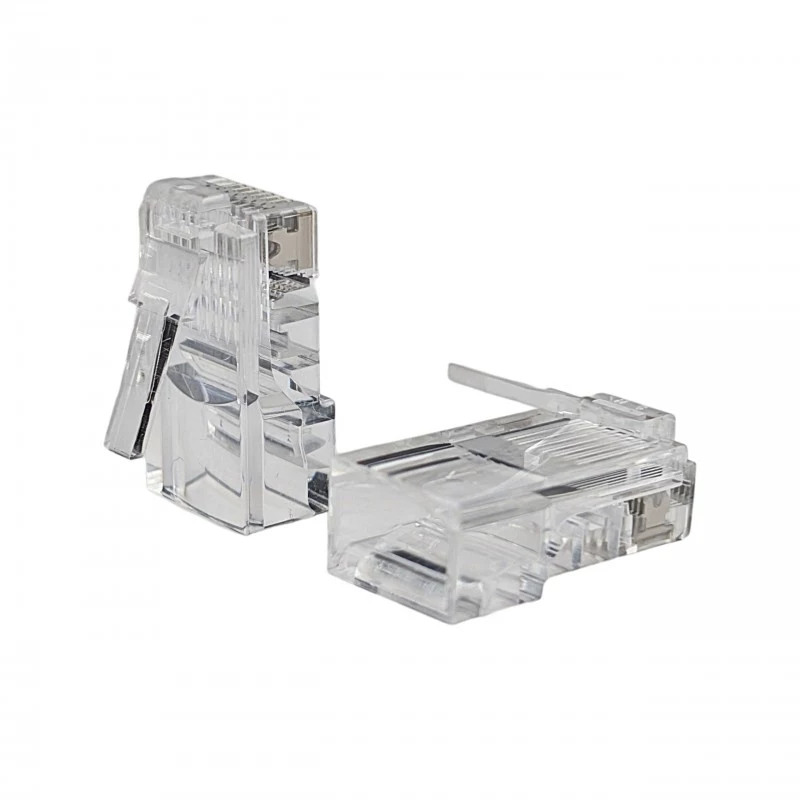

NETRACK RJ45 8P8C UTP Cat5e Fichas 100 unidades

The NETRACK 105-50 RJ45 8P8C UTP connector plugs are designed for high-performance Ethernet networking. Each pack contains 100 unshielded plugs, ideal for terminating stranded patch cables in Category 5e systems. These connectors support Gigabit Ethernet (1000 Mbps) and are compliant with TIA/EIA-568-C.2 standards.

Advantages

Gold-plated contacts ensure reliable connectivity and corrosion resistance. The transparent high-impact polycarbonate housing allows for easy inspection of wire placement. With support for 24-26 AWG stranded wires, these plugs are versatile for various patch cable applications.

Suitable for

• Ethernet networking installations
• Patch cable termination in data centers and offices
• Category 5e structured cabling systems

Key specifications

• Connector Type: RJ45 8P8C
• Cable Compatibility: UTP, stranded
• Performance: Cat5e, up to 1000 Mbps
• Contact Plating: Gold (3µ") over Phosphor Bronze
• Housing Material: Polycarbonate (transparent)
• Quantity: 100 plugs per pack
• Wire Gauge: 24-26 AWG
• Operating Temperature: -10°C to 60°C
• Mating Cycles: 750

Recommendations

Use with a standard RJ45 crimping tool for best results. Ensure proper wire sequence (T568A or T568B) before crimping.
