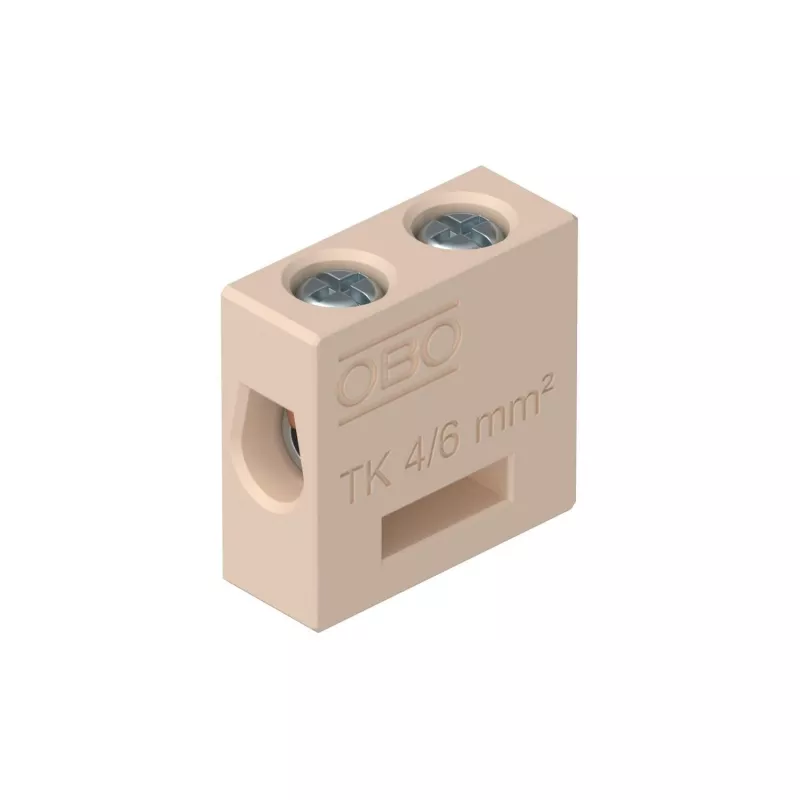

OBO BETTERMANN Barra de terminais cerâmica com proteção de arame para FireBox T Data (7205700)

This OBO BETTERMANN ceramic terminal block is specifically engineered for fire protection junction boxes in the FireBox T Data series. Its ceramic housing withstands continuous operating temperatures up to 400 °C, ensuring reliable electrical connections even under extreme heat conditions. The integrated stainless steel wire protection prevents damage to conductors during installation, making it a robust choice for safety-critical applications.

Highlights

• 2-pole screw terminal for secure connections
• Ceramic housing rated for 400 °C continuous temperature
• Stainless steel wire protection for conductor integrity
• Compatible with OBO Bettermann FireBox T Data series

In daily use

Ideal for electricians and installers working on fire protection systems, this terminal block simplifies wiring in junction boxes. The screw terminals accept rigid and flexible conductors from 0.5 to 2.5 mm², and the ceramic material provides excellent thermal and electrical insulation. Its white color blends seamlessly into standard installations.

Full specifications

• Product type: Ceramic Terminal Block
• Number of poles: 2
• Connection type: Screw terminal
• Conductor cross-section (rigid): 0.5 - 2.5 mm²
• Conductor cross-section (flexible): 0.5 - 2.5 mm²
• Rated voltage: 400 V AC
• Rated current: 24 A
• Housing material: Ceramic
• Screw material: Steel
• Wire protection material: Stainless steel
• Max. continuous operating temperature: 400 °C
• Color: White
• Mounting type: Internal, for FireBox T series
• Certifications: VDE, DIN EN 60998-1

Final note

For fire protection installations where reliability under heat is non-negotiable, this ceramic terminal block from OBO BETTERMANN delivers the performance and durability required.
