OBO BETTERMANN Garra de fixação para cargas pesadas com porca deslizante M12x65, revestida a zinco lamelar, para flange de 30 mm, TKH-S-30 6355805

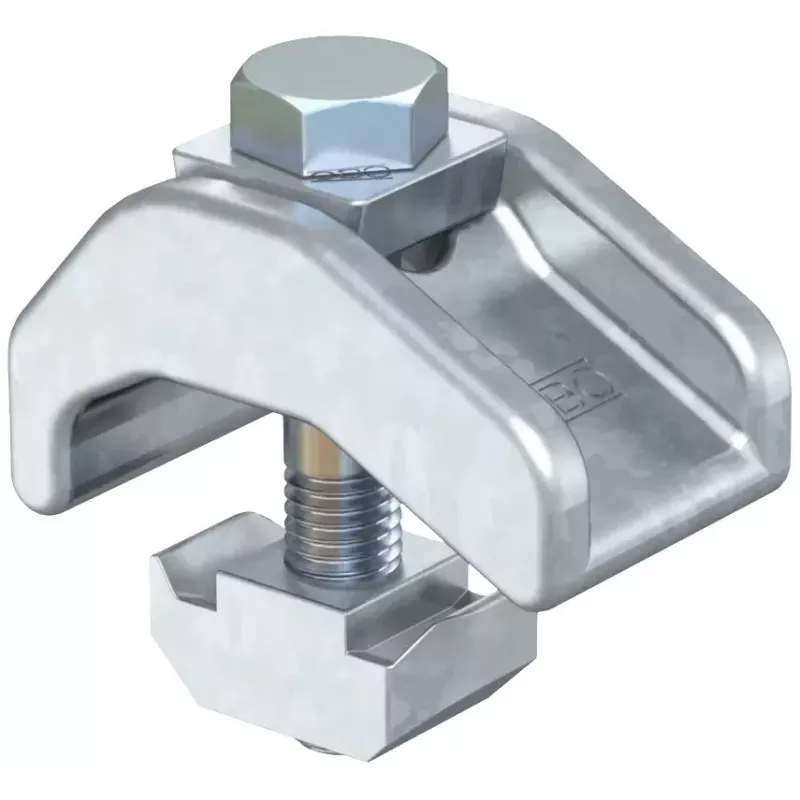

Heavy-duty clamping claw for secure mounting on steel beams, profiles, and channels. The pre-assembled M12 bolt with sliding nut allows quick, tool-friendly installation without welding or drilling.

Advantages

Zinc flake coating provides high corrosion protection for indoor and protected outdoor use. The sliding nut enables flexible positioning along the profile, and the clamp can be reused after disassembly.

Suitable for

• C-profiles and similar structural steel elements
• Flange thickness up to 30 mm
• Static loads up to 2.5 kN

Key specifications

• Product type: Clamping claw
• Design: Heavy-duty
• Thread size: M12
• Bolt length: 65 mm
• Material: Steel
• Surface finish: Zinc flake coated (ZL)
• Max flange thickness: 30 mm
• Static load capacity: 2.5 kN
• Bolt standard: DIN EN ISO 4014
• Colour: Metallic grey

Recommendations

Verify flange thickness and load requirements before installation. For outdoor use, ensure additional protection if exposed to aggressive environments.
