ORNO Conector de cabo reto IP68 5x2,5mm² 400V/25A preto OR-AE-13617

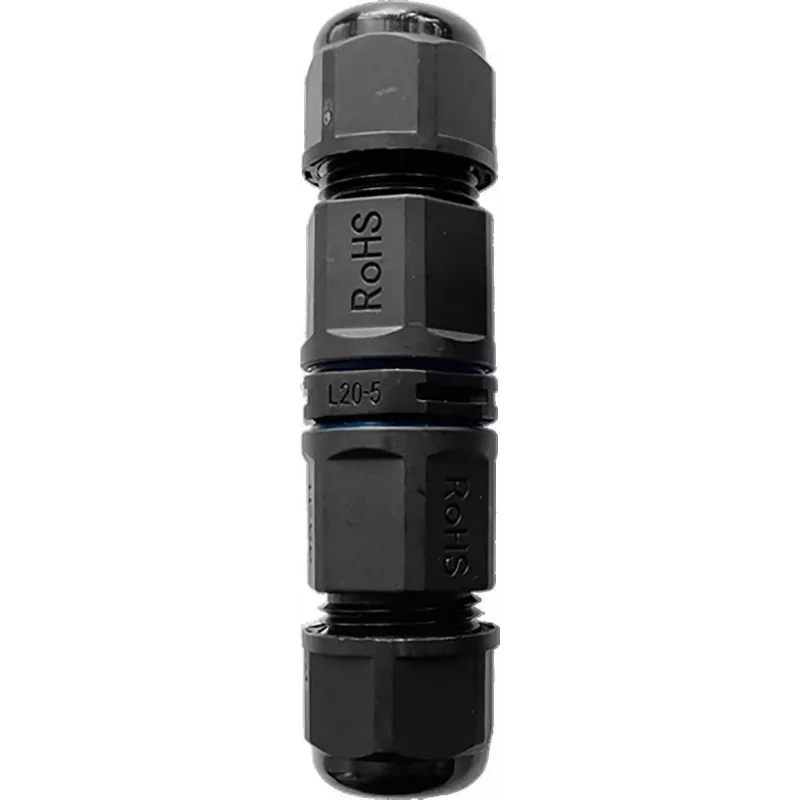

The ORNO OR-AE-13617 is a high-quality straight cable joint (connector sleeve) designed for reliable and waterproof electrical connections. With an IP68 rating, it is suitable for outdoor, underground, and wet environments. This connector accommodates cables with a cross-section of up to 2.5 mm² and supports 5 poles, making it ideal for power distribution and industrial applications.

Advantages

IP68 protection ensures dust-tight and continuous immersion in water. Screw terminals provide secure and easy installation. The robust PA66 housing offers excellent mechanical strength and thermal resistance. Rated for 400V/25A, it handles demanding electrical loads safely.

Suitable for

• Outdoor power connections
• Underground cable joints
• Industrial and agricultural installations
• Waterproof electrical splices

Key specifications

• Connector Type: Straight Cable Joint / Sleeve
• Ingress Protection: IP68
• Number of Poles: 5
• Max. Conductor Cross-section: 2.5 mm²
• Rated Voltage: 400V AC
• Rated Current: 25A
• Cable Outer Diameter Range: 6 - 12 mm
• Terminal Type: Screw Terminals
• Housing Material: Polyamide (PA66)
• Color: Black
• Operating Temperature: -40°C to +105°C
• Flammability Rating: UL94-V0
• Certifications: CE, RoHS
• Connection Method: Screw-on
• Mounting Type: In-line

Recommendations

For optimal performance, ensure cables are properly stripped and inserted fully into the terminals. Tighten screws securely to maintain IP68 integrity. Suitable for use with cables having outer diameters between 6 and 12 mm.
