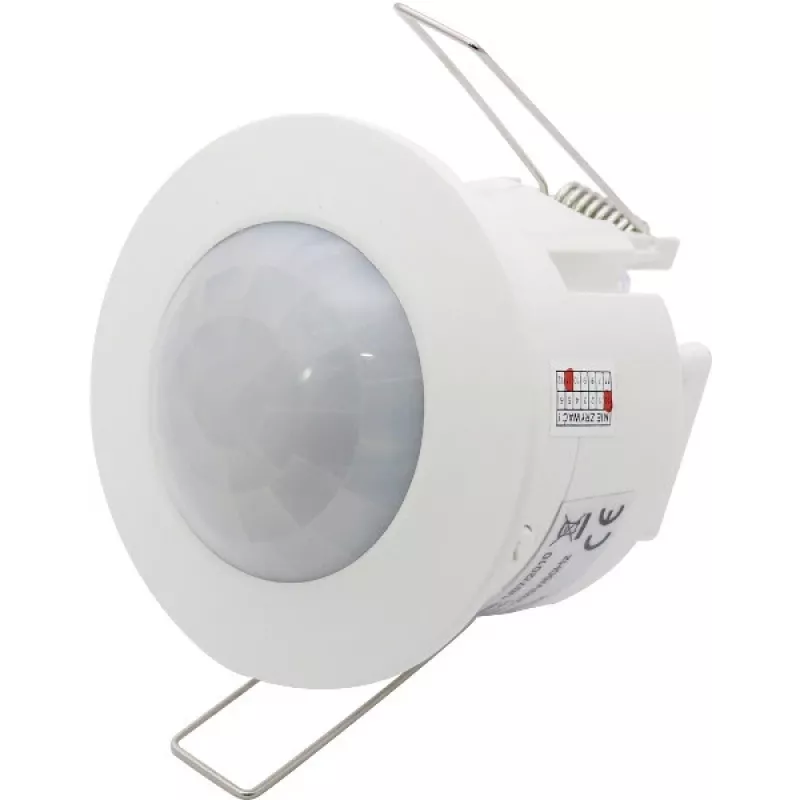

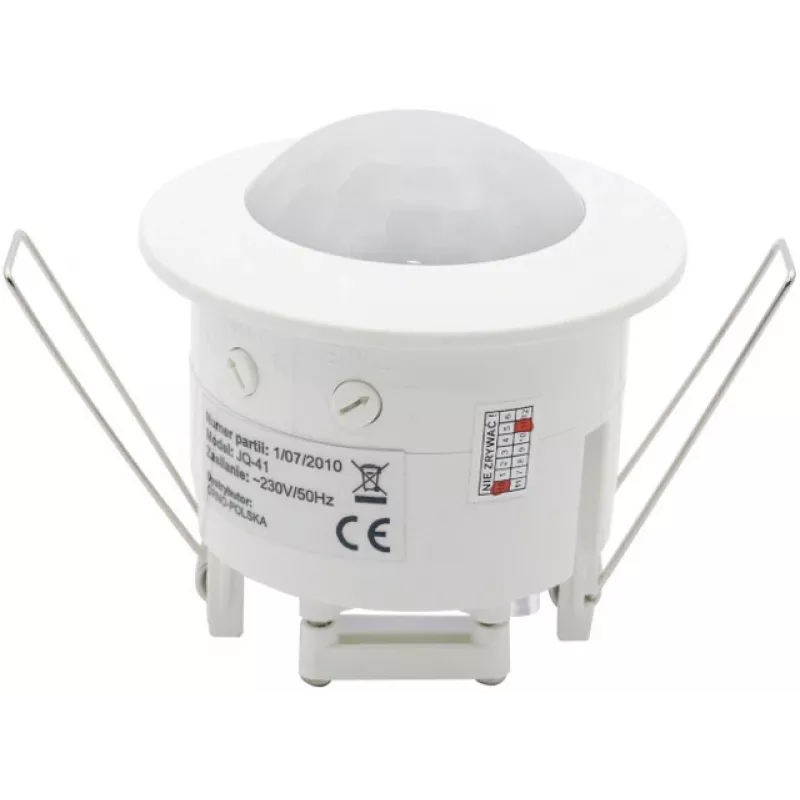

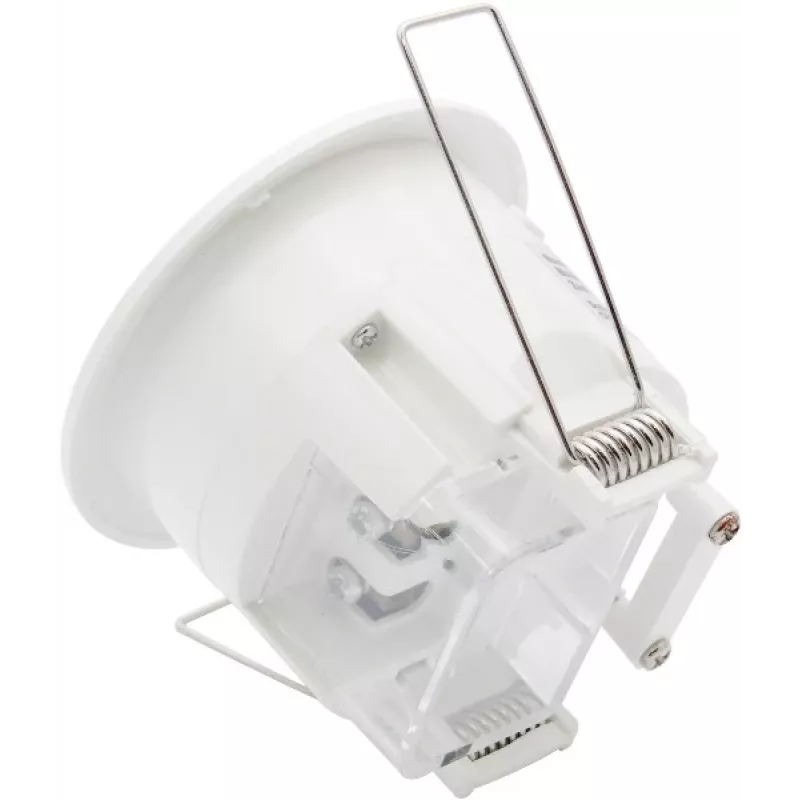

ORNO OR-CR-207 Detetor de movimento PIR 360° montagem no teto branco 1200W

The ORNO OR-CR-207 is a high-quality passive infrared (PIR) motion sensor designed for indoor ceiling mounting. It provides reliable automatic lighting control in residential, commercial, and industrial spaces. With a 360° detection angle and a range of up to 6 meters, it ensures comprehensive coverage. The sensor features adjustable light sensitivity (3-2000 LUX) and time delay (10s to 15min), making it versatile for energy-saving applications.

Advantages

Energy-efficient automatic lighting control; easy surface mounting on ceilings; adjustable settings for different environments; robust plastic housing with IP20 protection; suitable for incandescent and LED/fluorescent loads up to 1200W and 300W respectively.

Suitable for

• Corridors, staircases, and hallways
• Offices and meeting rooms
• Warehouses and storage areas
• Garages and basements
• Any indoor area requiring automated lighting

Key specifications

• Sensor Type: PIR (Passive Infrared)
• Detection Angle: 360°
• Detection Range: Max 6m (<24°C)
• Power Supply: 220-240V AC, 50/60Hz
• Max Incandescent Load: 1200W
• Max LED/Fluorescent Load: 300W
• Light Sensitivity: 3-2000 LUX
• Time Delay: 10s (±3s) to 15min (±2min)
• Mounting: Surface Mounted (Ceiling)
• Recommended Mounting Height: 2.2 - 4m
• IP Rating: IP20
• Operating Temperature: -20°C to +40°C
• Operating Humidity: <93% RH
• Installation Location: Indoor
• Colour: White
• Material: Plastic (PC)

Recommendations

For optimal performance, mount the sensor at the recommended height and avoid placing it near heat sources or air conditioning vents. Ensure the detection area is free from obstructions. This sensor is ideal for energy-saving projects and complies with standard electrical safety regulations.
