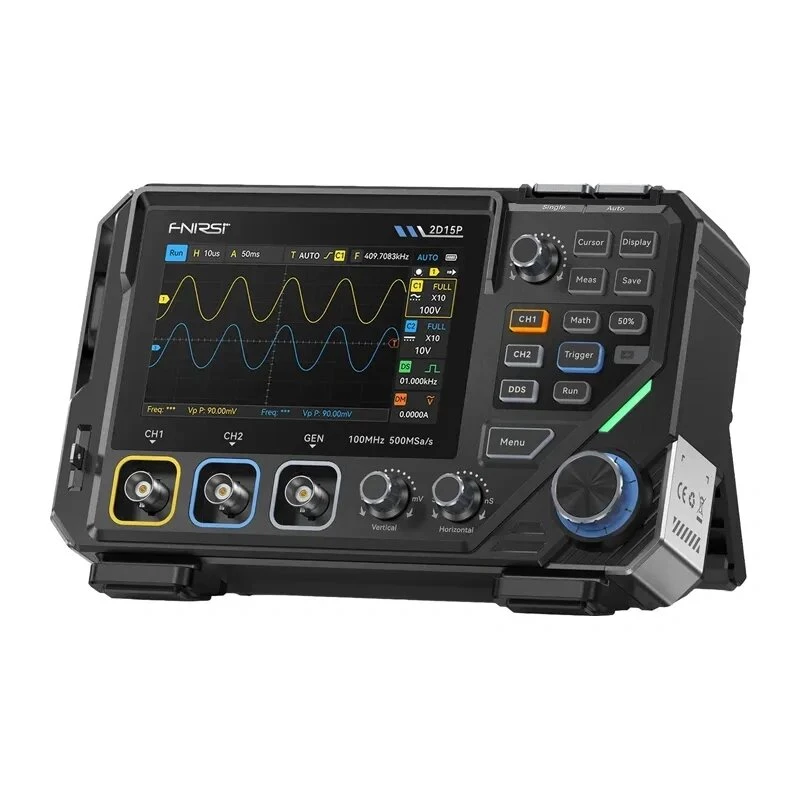

Osciloscópio FNIRSI 2D15P 15MHz com multímetro e gerador de sinal

Carrying separate instruments for waveform analysis, electrical measurements, and signal generation is cumbersome and costly. The FNIRSI 2D15P integrates a 2-channel digital oscilloscope, a true RMS multimeter, and a function generator into one portable, battery-powered device, eliminating the need for multiple tools in field service, education, and hobbyist work.

Who is it for

This all-in-one instrument is ideal for electronics repair technicians, engineering students, automotive diagnosticians, and embedded system developers who need reliable measurements on the bench or in the field. Its compact form factor and rechargeable battery make it easy to carry to any job site.

Main features

• 2-channel digital oscilloscope with 15 MHz bandwidth and 100 MSa/s real-time sampling
• Built-in multimeter measures AC/DC voltage up to 1000 V DC / 750 V AC, resistance up to 100 MΩ, and capacitance up to 100 mF
• Integrated signal generator outputs sine, square, triangle, and pulse waveforms from 0 to 2 MHz
• 2.8-inch TFT color LCD with 320x240 resolution for clear waveform and reading display
• 3000 mAh rechargeable lithium battery with USB Type-C charging for all-day use
• Safety rated CAT II 600 V and CAT III 300 V for professional environments

Specifications

• Oscilloscope bandwidth: 15 MHz
• Real-time sample rate: 100 MSa/s
• Input channels: 2
• Vertical sensitivity: 10 mV/div to 10 V/div
• Time base range: 5 ns/div to 10 s/div
• Storage depth: 12 KB
• DC voltage range: 0-1000 V
• AC voltage range: 0-750 V
• Resistance range: 0 Ω to 100 MΩ
• Capacitance range: 0 F to 100 mF
• Signal generator frequency: 0-2 MHz
• Input impedance: 1 MΩ
• Display: 2.8-inch TFT LCD, 320x240 pixels
• Battery: 3000 mAh rechargeable lithium
• Charging: USB Type-C

Tips

Before taking measurements, ensure the device is fully charged and the test leads are properly connected. Use the appropriate CAT rating for your working environment to maintain safety.
