Painel de ligação 1U DeLOCK 43308

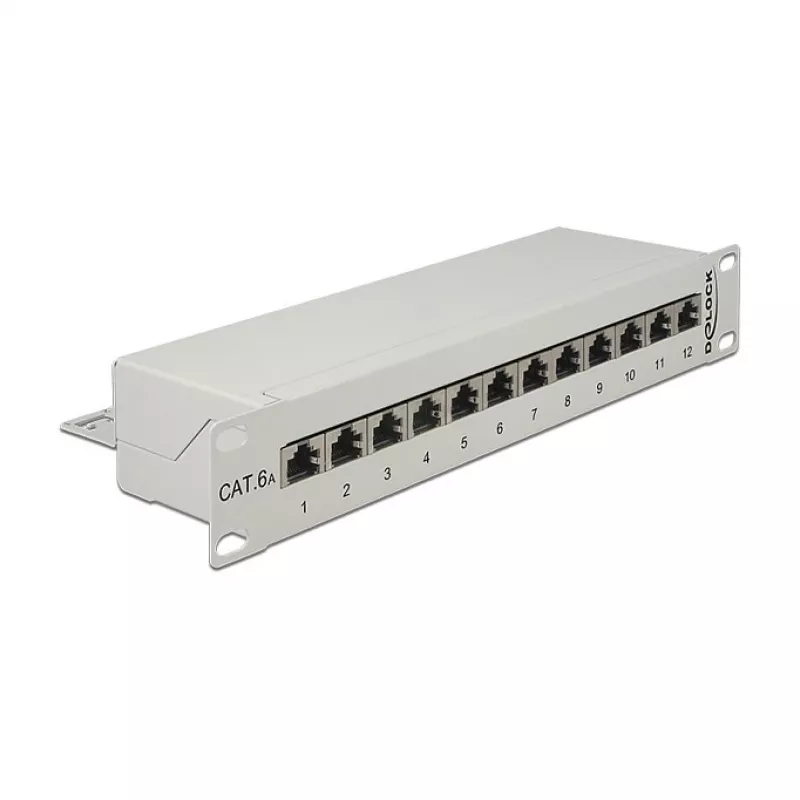

The DeLOCK 43308 patch panel is a 1U rack-mounted unit for 10" racks, designed for Cat6a cabling. It provides 12 RJ-45 ports and LSA punch-down blocks for termination of up to 12 network cables. Constructed from durable metal with a grey finish, the panel measures 254 mm × 44 mm × 109 mm and fits standard racks.

Advantages

The metal housing ensures mechanical strength and long service life while the preconfigured 12-port layout simplifies installation in a 1U space. LSA punch-down blocks enable secure, tool-based termination and the RJ-45 ports support standard Cat6a connections. Compact dimensions and a standard 10" rack form factor make the unit easy to integrate into existing rack systems.

Suitable for

• Structured network cabling in server rooms and wiring closets
• Cat6a Ethernet installations requiring a 1U patch panel
• Small to medium-sized network racks with 10" mounting

Key specifications

• Manufacturer: DELOCK
• Model: 43308
• Form factor: 1U rack mount (10")
• Ports: 12 RJ-45
• Cable termination: LSA punch-down blocks
• Compatible standard: Cat6a
• Material: Metal
• Colour: Grey
• Dimensions (W×H×D): 254 mm × 44 mm × 109 mm
• MPN: 43308
• EAN: 4043619433087

How to use

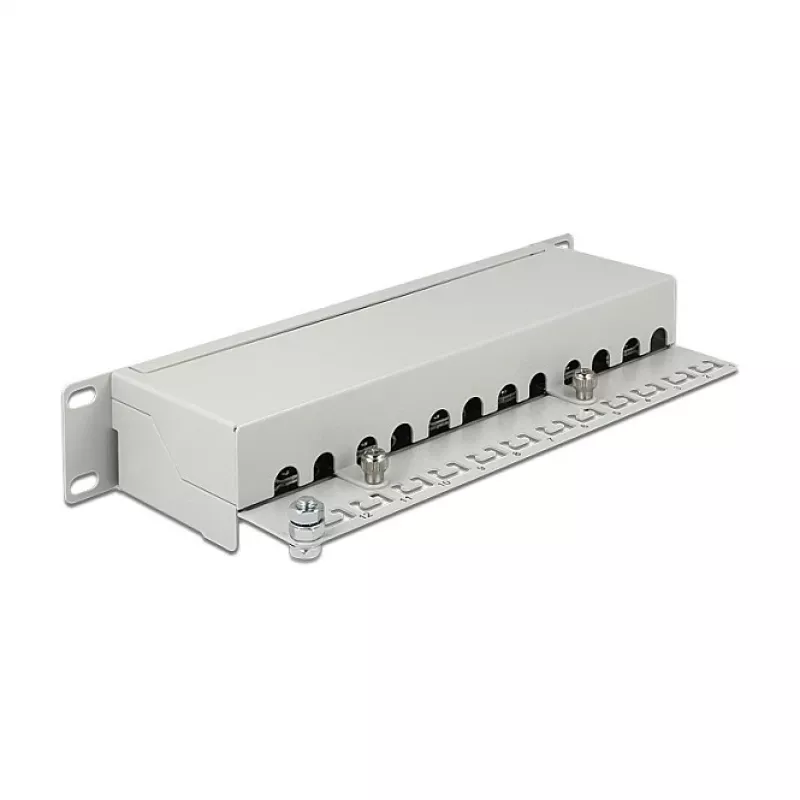

Mount the patch panel into a 10" rack occupying one unit (1U) of height. Strip and prepare each network cable, then terminate wires into the corresponding LSA punch-down block positions using a punch-down tool. After punch-down termination, connect the external devices to the front RJ-45 ports. Verify continuity and correct wiring with a cable tester before putting the network into production.

Recommendations

For reliable performance, use Cat6a-rated cables and ensure proper cable management to avoid excessive bending or strain on terminated cables. Label ports after installation to simplify future maintenance and testing.
