Painel de ventiladores Rittal 3342024 — unidade de 3 ventiladores incorporada, caudal de ar 480 m³/h, branco

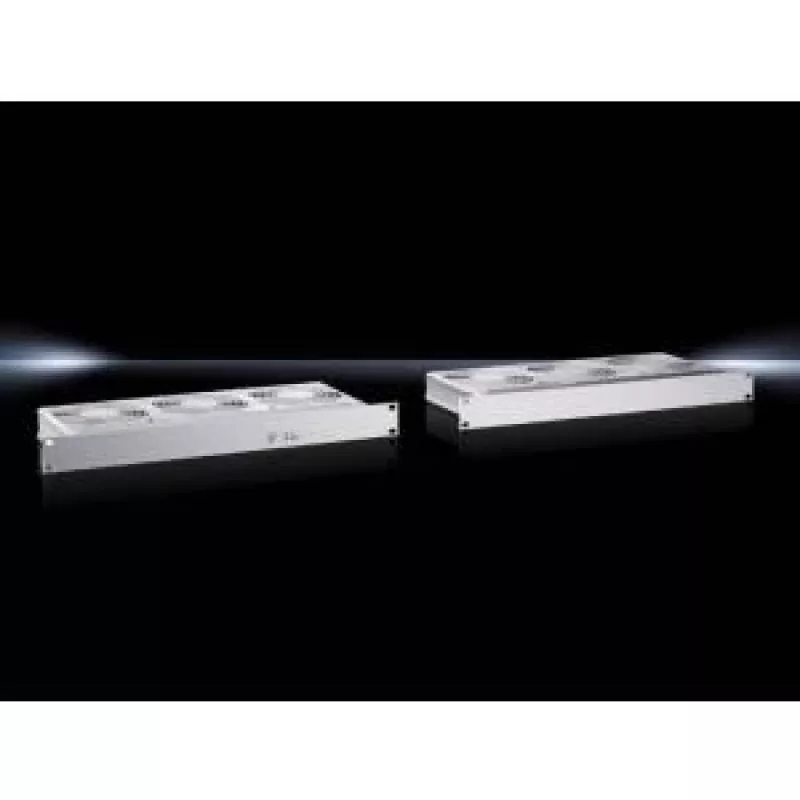

Rittal 3342024 is a built-in fan panel designed to provide forced ventilation for electrical enclosures, control cabinets and similar housings. The unit integrates three fans in a single white panel and delivers a combined airflow of 480 m³/h. With a compact footprint and a weight of 1.86 kg, the panel is intended for installation in cabinets where controlled air exchange is required to manage internal temperatures and protect sensitive components.

Advantages

The three-fan configuration provides a balanced airflow distribution across the panel, enabling steady removal of heat generated by electronic components. The registered airflow rate of 480 m³/h helps maintain lower internal temperatures compared with passive ventilation. The white finish contributes to a neutral appearance for industrial and technical environments, while the relatively low weight simplifies handling and installation. The product is built for integration into standard enclosure cutouts and supports continuous operation under typical industrial conditions.

Suitable for

Key specifications

How to use

Prepare the enclosure cutout according to the panel dimensions and mounting instructions supplied by the enclosure or system manufacturer. Position the fan panel in the cutout and secure it with appropriate fasteners, ensuring correct orientation for intake or exhaust based on the intended airflow direction. Connect the electrical supply following local electrical codes and the product’s wiring guidelines, verifying correct voltage and grounding before powering the unit. After installation, monitor the enclosure temperature and fan operation to confirm effective ventilation.

Recommendations

Install the fan panel in a location that provides unobstructed airflow paths into and out of the enclosure. Maintain at least the manufacturer-recommended clearance from internal components and filters to avoid airflow restriction. Regularly inspect and clean fan impellers and any filters to preserve rated airflow and prolong service life.
