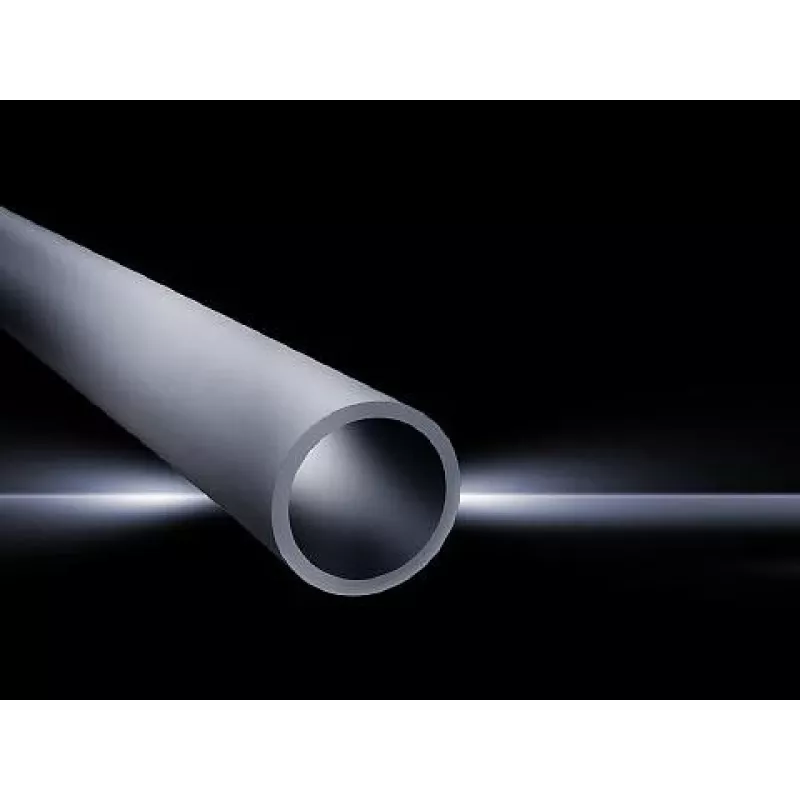

Perfil de suporte Rittal CP para sistema de caixa PC, RAL 7035, 1 m

The Rittal CP support section for the PC enclosure system, finished in RAL 7035 and 1 m long, is a structural support profile designed for integration into modular CP housings. It provides a stable mounting surface for control and instrument enclosures, internal panels and cable routing inside cabinets used in industrial, electrical and IT installations. The powder-coated RAL 7035 surface offers corrosion-resistant protection and a neutral appearance that matches standard control cabinet interiors.

Advantages

This support section delivers consistent dimensional accuracy and mechanical strength to maintain alignment of internal components within a CP enclosure system. Its 1 m length simplifies planning and installation in standard cabinet depths while the RAL 7035 finish ensures visual compatibility with common cabinet systems. The profile supports reliable mounting of panels, terminal blocks and accessories and contributes to orderly cable management.

Key specifications

How to use

Position the support section at the intended mounting height inside the CP enclosure and secure it to the cabinet frame using the appropriate fasteners and mounting points provided by the enclosure system. Attach internal panels, terminal blocks or accessories to the support profile according to the component manufacturer’s instructions, ensuring correct alignment and torque on fasteners. Route cables alongside or through the profile as part of an organised internal wiring scheme, keeping clearances for ventilation and access to serviceable parts.

Recommendations

Verify compatibility with the specific CP housing model before installation and use hardware rated for the expected mechanical loads. Store and handle the support section to avoid surface damage to the powder coat; install in dry conditions to limit contamination during assembly.
