Pigtail de fibra ótica Alantec FOI-SCA-9SM-2-G657A monomodo 9/125 SC/APC 2 m LSOH OS2

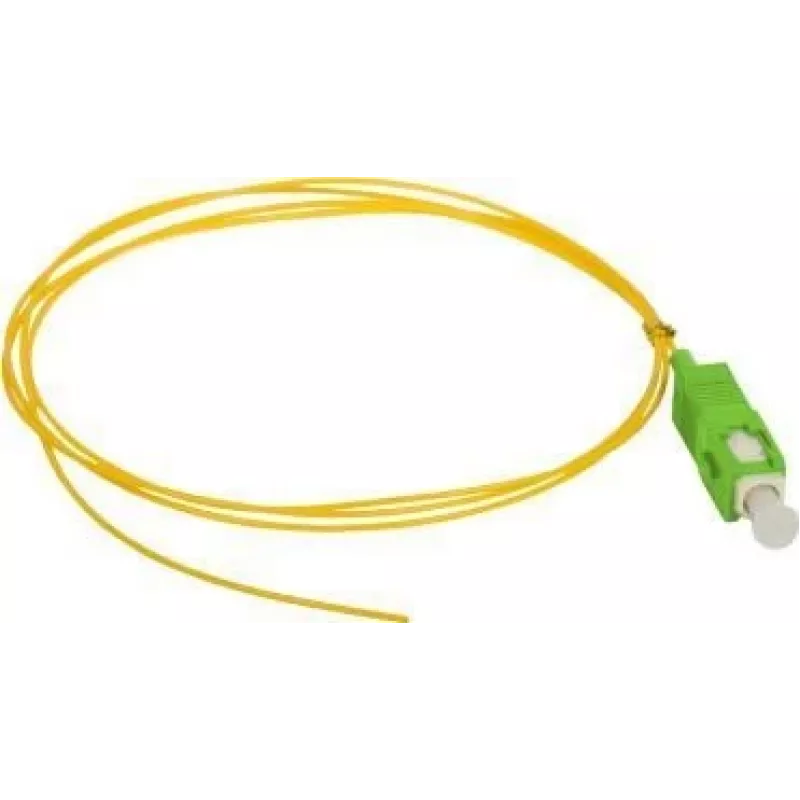

Singlemode fiber optic pigtail from Alantec with a 9 µm core and 125 µm cladding, terminated with an SC/APC connector. The fiber is OS2 type with a 2 m LSOH (Low Smoke Zero Halogen) jacket. Supplied as a single unit and compliant with RoHS, this pigtail is intended for fusion splicing and trunk connections in singlemode networks that require low-smoke, halogen-free cabling.

Advantages

The pigtail uses OS2 singlemode fiber with a 9/125 µm structure and SC/APC termination for low insertion loss and stable optical performance. The LSOH jacket reduces smoke and hazardous halogen emissions in case of fire. RoHS compliance ensures the product meets common environmental restriction standards. The 2 m length provides flexibility for routing and splicing in patch panels or distribution enclosures.

Suitable for

• Fusion splicing to singlemode fiber trunks
• Patching and connecting equipment in telecom and datacom cabinets
• Fiber distribution panels and splice enclosures
• Installations requiring low-smoke, halogen-free cabling

Key specifications

• Fiber type: OS2 singlemode
• Core diameter: 9 µm
• Cladding diameter: 125 µm
• Connector: SC/APC
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Cable length: 2 m
• Product colour: Yellow
• Certification: RoHS

How to use

Prepare the singlemode trunk and the pigtail ends according to standard fiber preparation procedures, perform precise cleaving, and fusion splice the pigtail to the network fiber. After splicing, secure the splice in a splice tray or enclosure and route the pigtail to the patch panel or adapter panel, terminating the SC/APC connector in the designated adapter. Verify optical continuity and loss with appropriate test equipment.

Recommendations

Handle the fiber and SC/APC connector with care to avoid contamination and end-face damage. Use proper stripping, cleaning and cleaving tools for singlemode fiber, and perform splicing under suitable environmental conditions. Select LSOH-rated pathways where low smoke and halogen-free materials are required.
