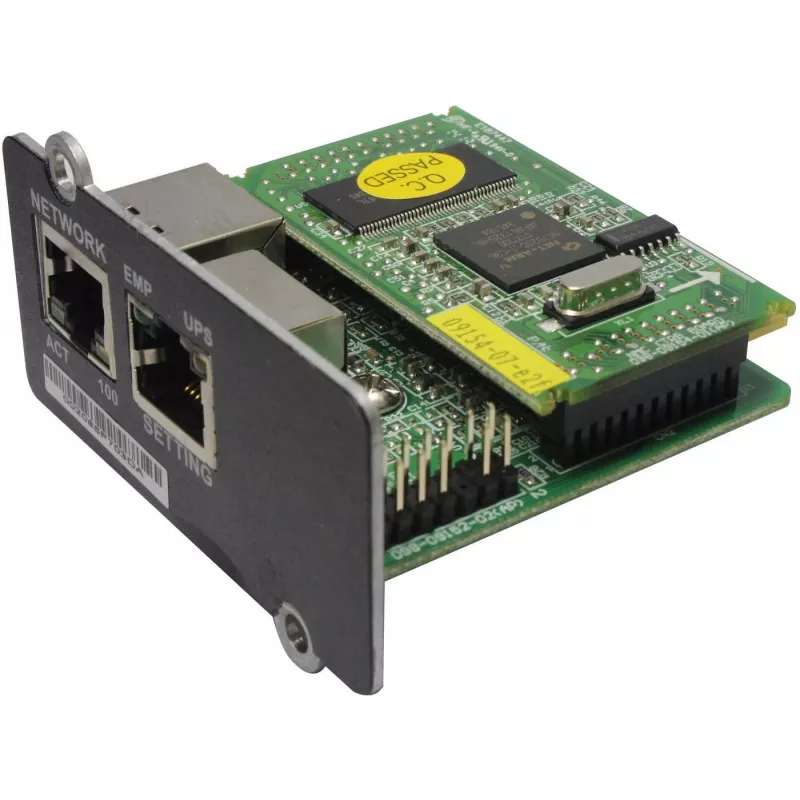

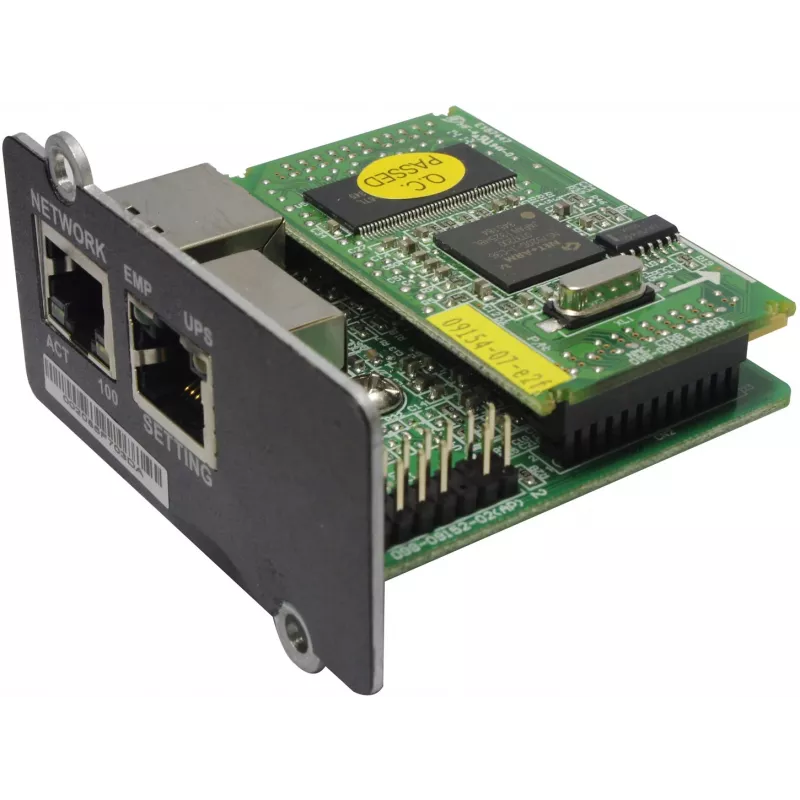

Placa de gestão de rede PowerWalker 10120599

PowerWalker Mini NMC Card (model 10120599) is a network management card for UPS monitoring and control. Compatible with several PowerWalker UPS models, it provides SNMP-based remote monitoring and management via a Fast Ethernet (10/100 Mbit/s) RJ45 connection and supports SNMP v1 and v3. The integrated web interface allows remote configuration, shutdown and firmware updates, enabling centralized supervision of UPS units located on different floors or sites.

Advantages

The card enables remote control and monitoring of multiple UPS units over a network, displaying real-time dynamic graphs for voltage, frequency, load level and battery level. It offers audible alarms, e-mail alerts and SNMP trap notifications, maintains historic data logs and includes one-click firmware upgrade and password-protected remote access management for secure operation.

Suitable for

• Remote monitoring and management of PowerWalker UPS systems
• Data centers or server rooms with multiple UPS units on different floors
• Facilities requiring centralized alerting and historic UPS data logging
• IT administrators who need SNMP v1/v3 compatibility and Fast Ethernet connectivity

Key specifications

• Brand: PowerWalker
• Model / MPN: 10120599
• Interface: Fast Ethernet RJ45
• Data rate: 10/100 Mbit/s
• SNMP support: v1 and v3
• Compatibility: VFI 20000-30000-40000 TP 3/3 BX-BE-BI, VFI 15000 MP 3/3, VFI 1000-2000-3000 T/E LCD

How to use

Install the Network Management Card into the compatible PowerWalker UPS following the UPS user manual. Connect the card to your Ethernet network via the RJ45 port and access the integrated web interface using the card's IP address. Configure SNMP settings, user access and alert parameters through the web GUI. Use the interface to view real-time graphs, check historic logs and perform remote shutdowns or restarts when required.

Recommendations

Assign a static IP or reserve an address via DHCP for reliable access, enable SNMP v3 for encrypted management, and keep the firmware up to date using the one-click upgrade to ensure compatibility and security.
