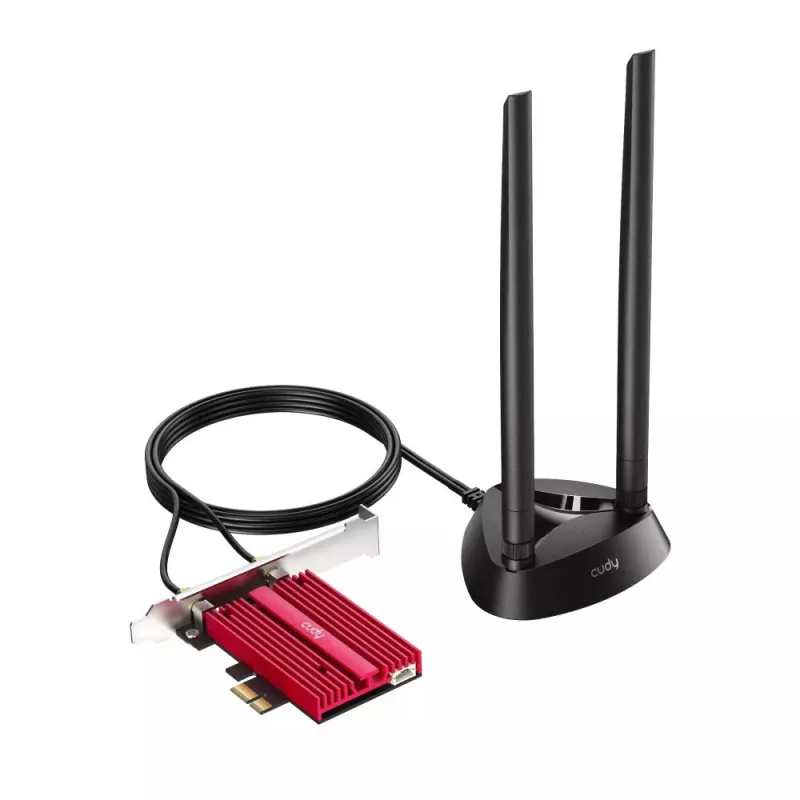

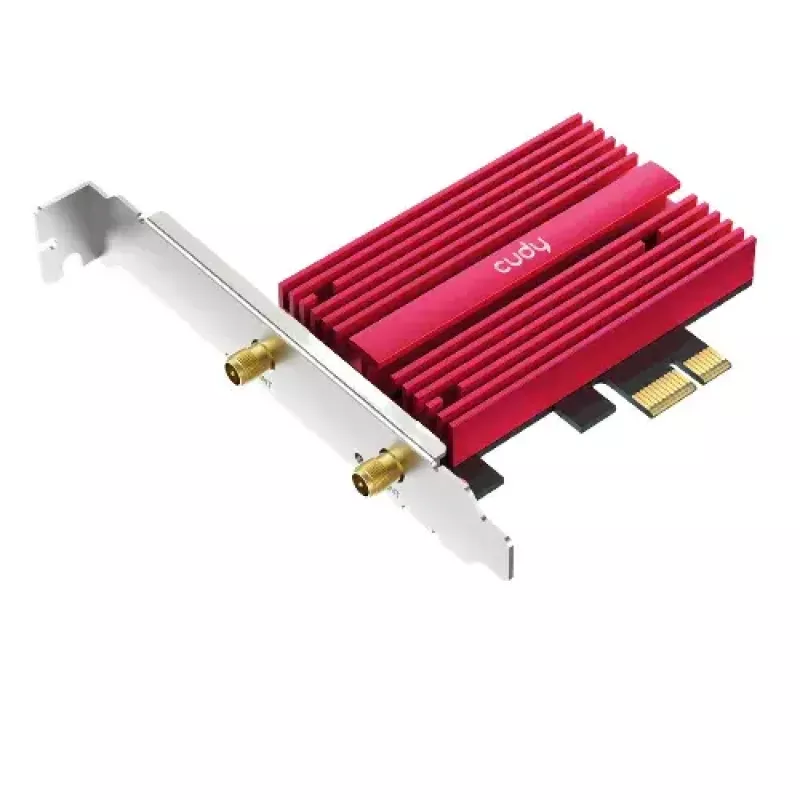

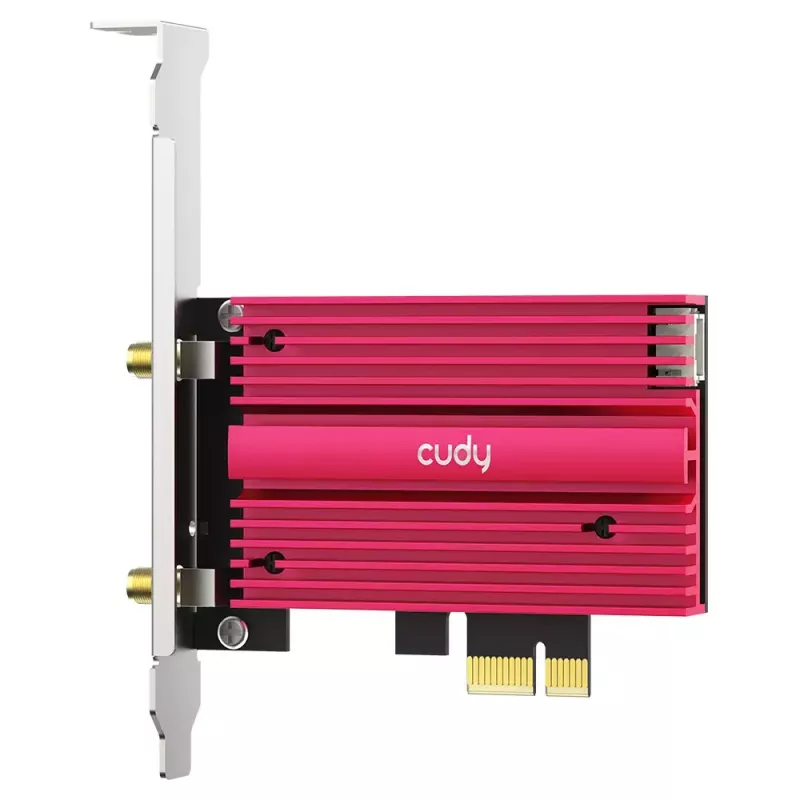

Placa de rede WLAN/Bluetooth interna Cudy WE4000 — PCIe, Intel AX200, Wi‑Fi 6 tri-band (2,4/5/6 GHz), 2400 Mbit/s, Bluetooth 5.0

The AX200 Wi-Fi 6 PCIe card with Bluetooth 5.0 integrates Wi‑Fi 6 performance and modern Bluetooth connectivity in a single expansion card. It supports dual‑band 2.4 GHz and 5 GHz operation, offering up to 574 Mbps on 2.4 GHz and up to 2402 Mbps on 5 GHz when paired with a compatible Wi‑Fi 6 router. The card includes an AX200 module and is designed for desktop systems that support PCIe slots and Windows 10 64‑bit.

Advantages

The built‑in Bluetooth 5.0 delivers faster data transfer and wider coverage compared with Bluetooth 4.2, allowing connection of multiple peripherals such as controllers, headphones, and keyboards. Wi‑Fi 6 capabilities with OFDMA reduce latency and improve responsiveness for gaming and high‑bandwidth tasks like 4K streaming. WPA3 support enhances wireless security with stronger, individualized encryption. A driver CD and a manual link for driver download are provided for installation on Windows 10 (64‑bit).

Key specifications

• Wi‑Fi standard: 802.11ax/ac/a/b/g/n
• Module: AX200
• Bluetooth: Bluetooth 5.0
• 2.4 GHz maximum speed: up to 574 Mbps
• 5 GHz maximum speed: up to 2402 Mbps
• Latency reduction technology: OFDMA (lower latency for gaming/VR)
• Security: WPA3
• OS compatibility: Windows 10 64‑bit
• Interface: PCIe

How to use

Install the PCIe card into an available PCIe slot on a desktop motherboard, secure it in place, and connect any included antenna if present. Insert the provided driver CD into your optical drive or download the driver using the link printed in the manual. Follow the on‑screen instructions to install the AX200 drivers, then enable Wi‑Fi and Bluetooth in Windows 10 network and device settings. Pair Bluetooth peripherals through Windows Bluetooth settings and connect to Wi‑Fi networks using standard network selection and password entry.

Recommendations

For optimal performance, use the card with a Wi‑Fi 6 (802.11ax) router and place the desktop in an area with minimal physical obstructions. Ensure your system runs Windows 10 64‑bit and install the latest drivers from the provided CD or the manufacturer’s download link to maintain security and stability.
