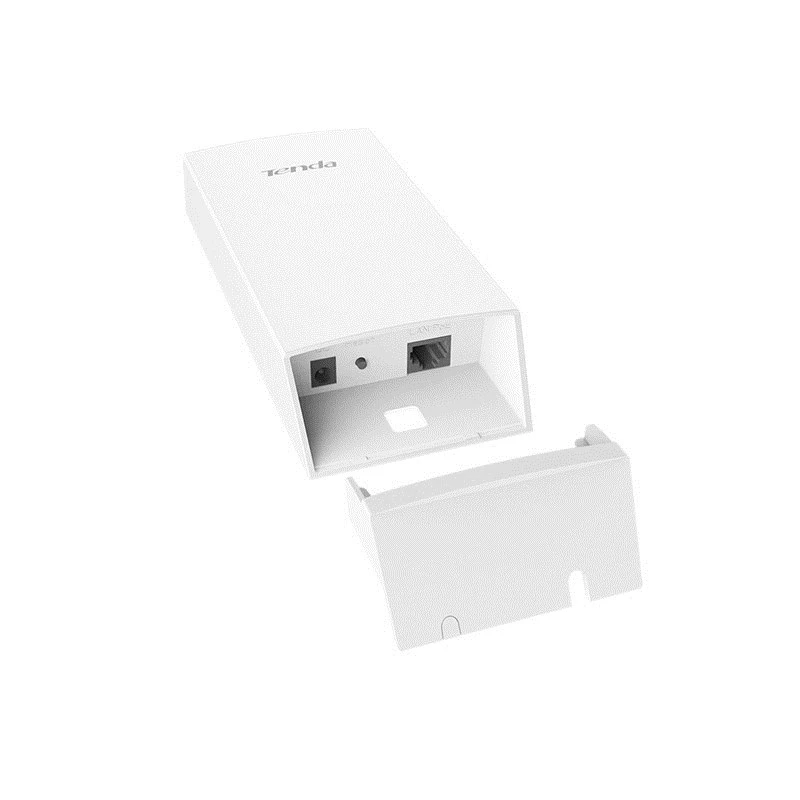

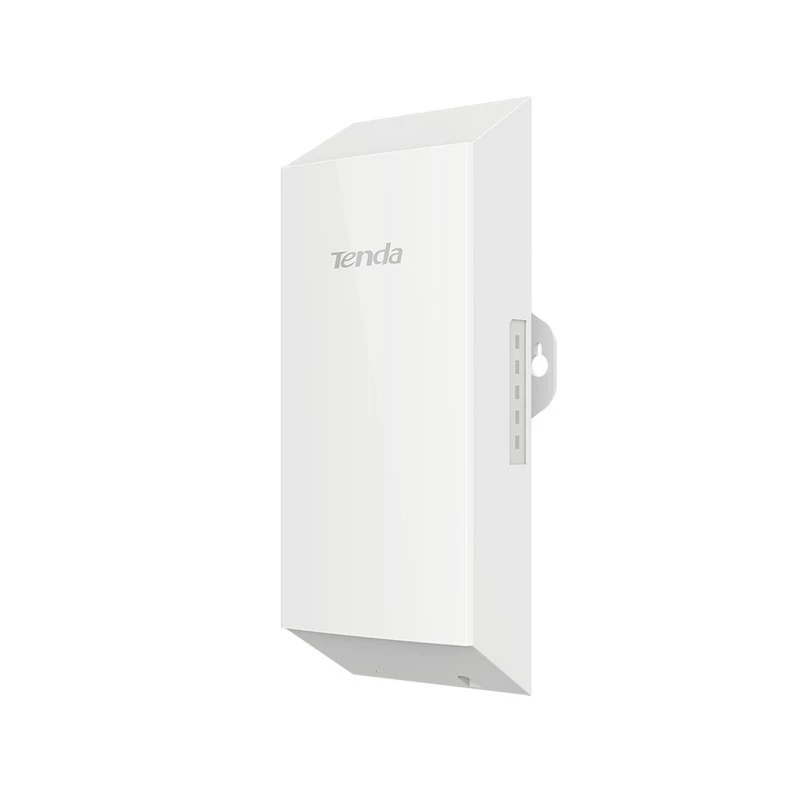

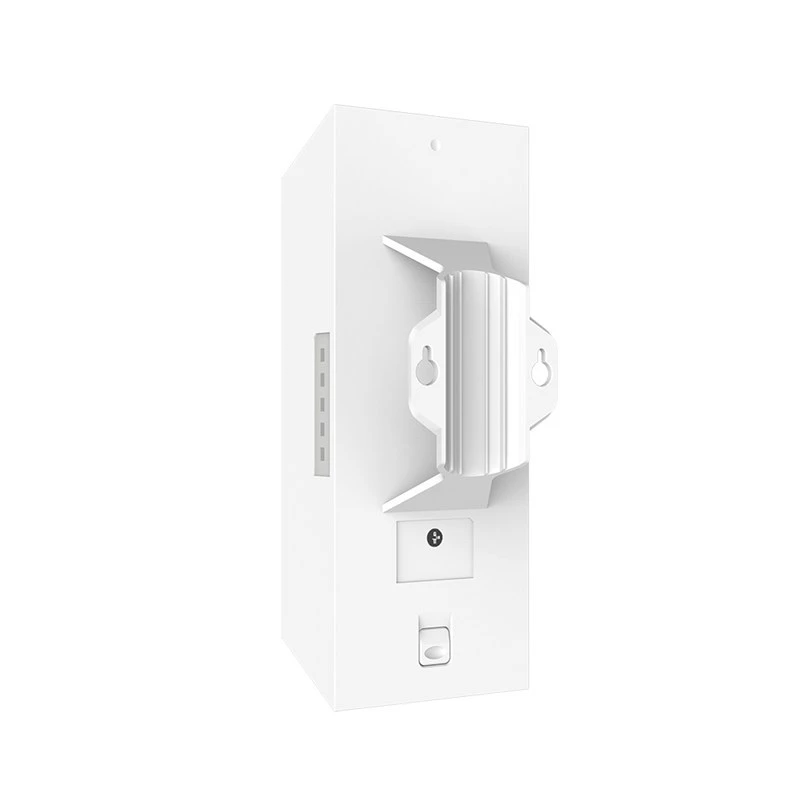

Ponto de acesso wireless TENDA O1 2.4 GHz 802.11n, 300 Mbit/s, PoE, montagem na parede, IP64, 1x RJ-45

The Tenda O1 2.4 GHz Wireless Access Point is a compact outdoor CPE designed for WISP CPE solutions and long-distance wireless links for video surveillance and data transmission. It integrates an 8 dBi directional antenna, supports auto-bridge for quick pairing of two units, and offers PoE support and robust outdoor protection for reliable operation in varied weather conditions.

Advantages

The O1 provides stable wireless connections up to 500 meters using an integrated 8 dBi directional antenna. Auto-bridge technology allows two O1 units to connect automatically when powered on and aligned, simplifying setup. The unit features an IP64-rated enclosure and quality hardware for outdoor use, a smart signal-strength LED for easier alignment, and centralized management via CPE Assistant. It supports common security protocols and offers low power consumption with PoE for convenient installation.

Suitable for

• Long-distance wireless links between two points (AP ↔ Station) for video surveillance
• Extending internet from a WISP station/hotspot to local wired and wireless networks (Client + Router mode)
• Outdoor deployments requiring weather-resistant CPE

Key specifications

• Wireless band: 2.4 GHz
• Wireless standard: IEEE 802.11n / 802.11g / 802.11b
• Maximum data rate: 300 Mbit/s
• Antenna: integrated directional 8 dBi
• Ethernet: 1 × RJ-45 LAN (PoE supported)
• Power consumption: approx. 2.6 W
• Ingress protection: IP64
• Security: WEP, WPA-PSK, WPA2-PSK
• Product colour: White

How to use

Mount the O1 outdoors with line-of-sight toward the remote device or WISP station. Connect the unit to a PoE injector/switch using an Ethernet cable to provide both power and network. For a point-to-point link, place one device in AP mode and the other in Station mode and power them on facing each other; auto-bridge will establish the connection. Use the signal-strength LEDs to fine-tune alignment for optimal link quality. Configure network settings and security via the web interface or the CPE Assistant management software.

Recommendations

Install with clear line-of-sight and elevated mounting to maximize range; avoid obstructions and severe interference sources. Verify firmware and use the CPE Assistant for centralized management and firmware updates where available.
