Pulsar PSD12010 Fonte de alimentação comutada de mesa 12V/1A para CCTV

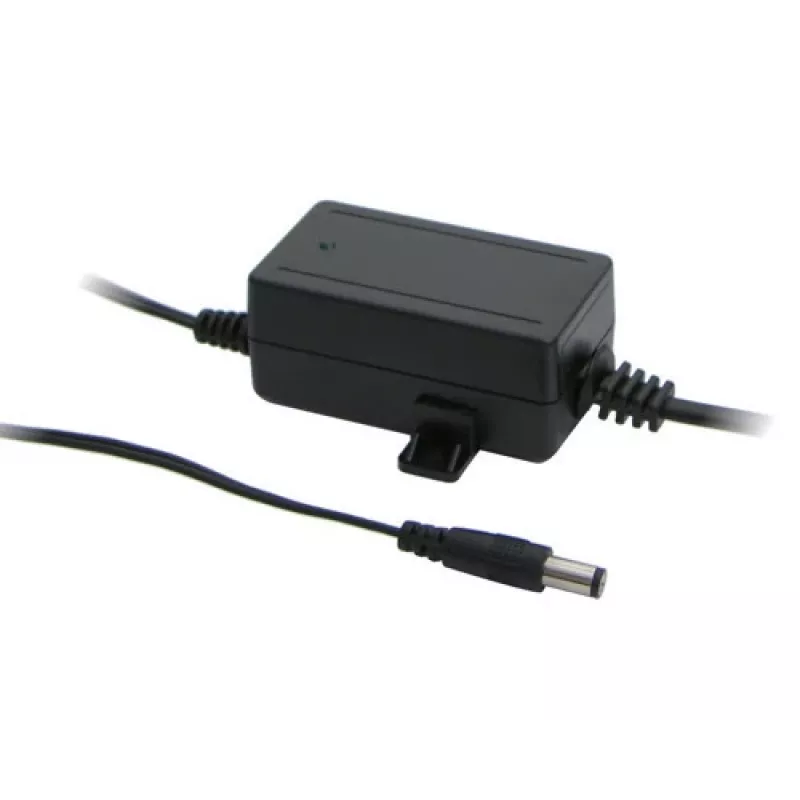

The Pulsar PSD12010 is a high-quality desktop switching power supply designed specifically for CCTV systems and access control applications. It provides a stable 12V DC output with 1A current, ensuring reliable power to your security cameras and other low-voltage devices. With its compact desktop enclosure and universal AC input, it is easy to install and use in various environments.

Advantages

This power supply offers multiple protection features including short circuit, overload, and over voltage protection, safeguarding your connected equipment. Its high efficiency (>80%) reduces energy waste and heat generation. The LED indicator provides clear power status at a glance.

Suitable for

• CCTV cameras and DVRs
• Access control systems
• Low-voltage LED lighting
• Security and surveillance equipment

Key specifications

• Input: 100-240V AC, 50/60Hz
• Output: 12V DC, 1A, 12W
• Connector: DC 2.1/5.5mm plug, center positive
• Input connector: IEC C8 (figure-8)
• Protections: SCP, OLP, OVP
• Ripple & noise: <100mVp-p
• Operating temperature: -10°C to +40°C
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with devices that require 12V DC and draw up to 1A. Ensure proper ventilation and avoid exposure to moisture. This power supply is not suitable for outdoor use without additional weatherproofing.
