Rack autónomo Triton RCA-12-A61-CAX-A1 Capacidade 12U 20000 kg

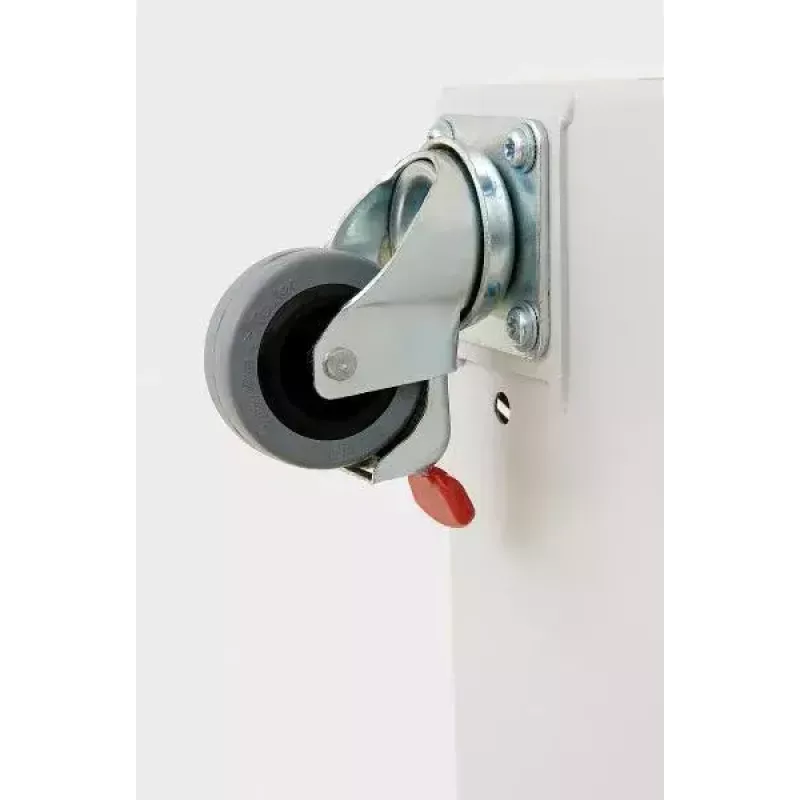

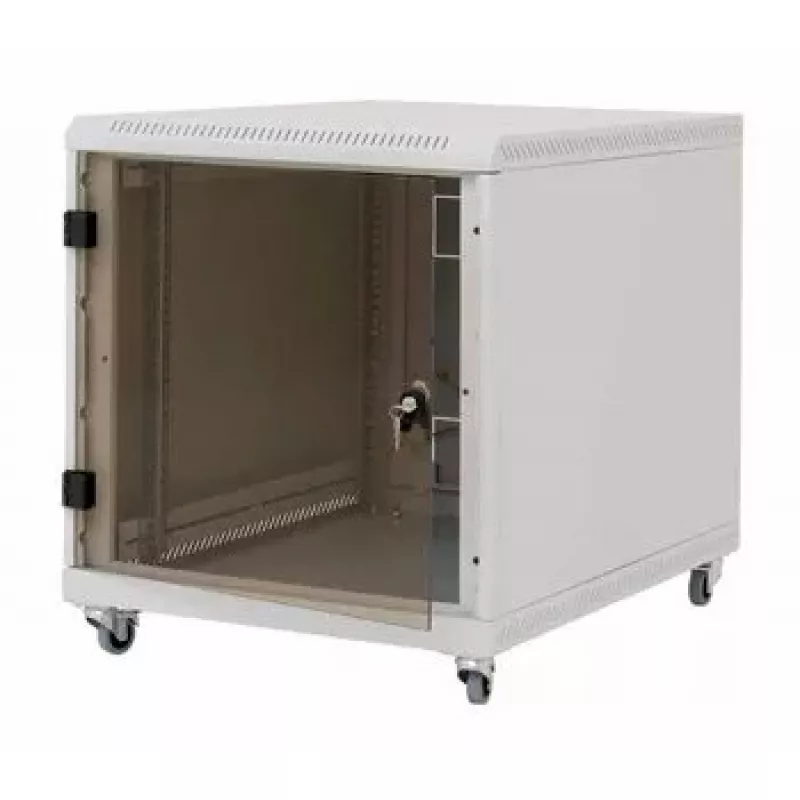

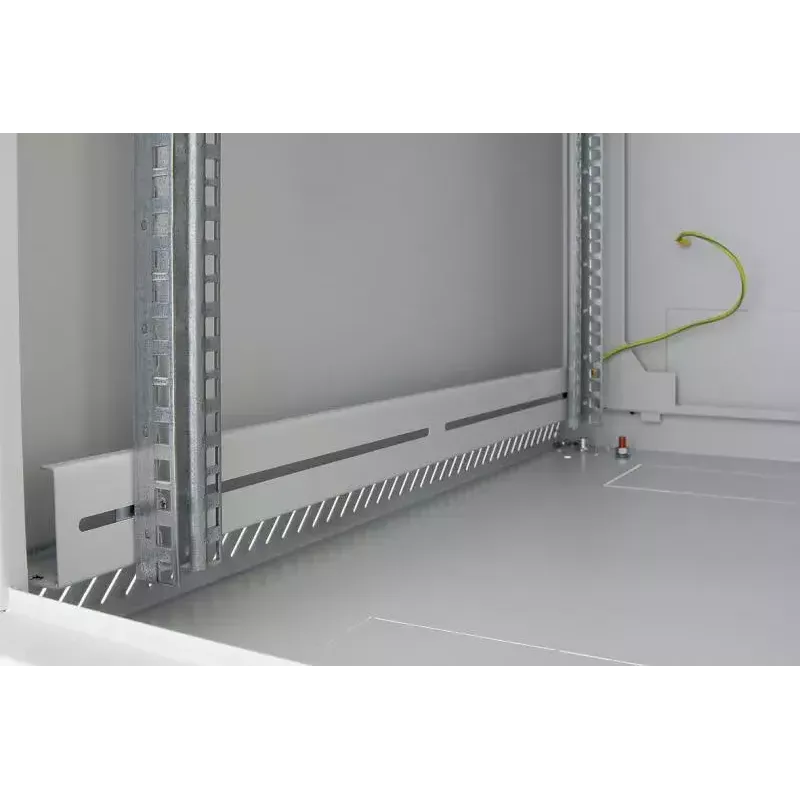

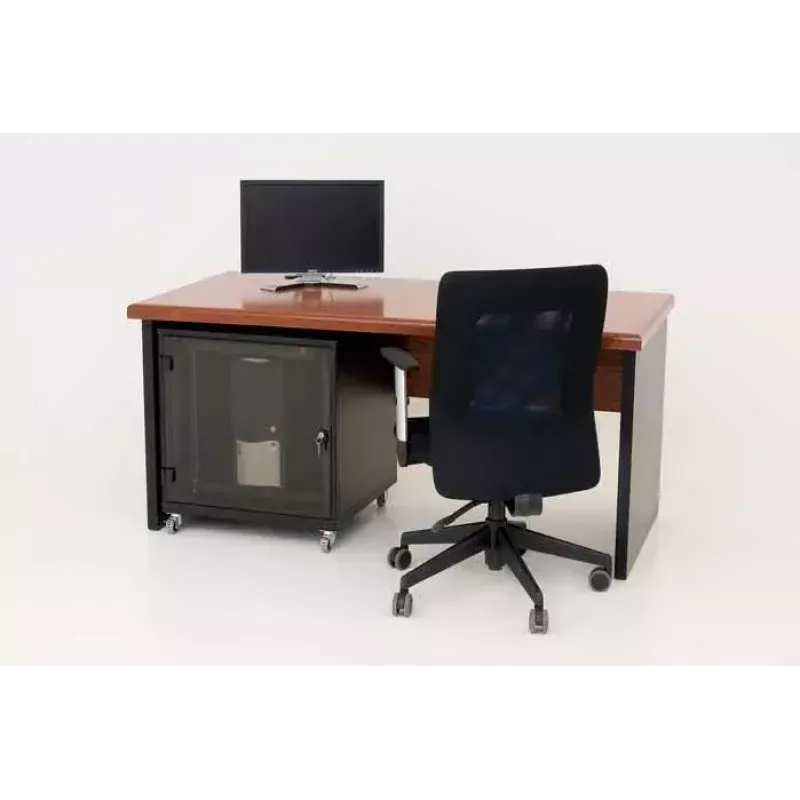

RCA represents one of the non-standard data cabinet solutions. Its construction is right from the beginning designed to concentrate an office network infrastructure under one of the office tables Cabinet has a robust welded construction. High quality processing and the up-to-date technology ensure a perfect look of the cabinet. Cabinet door is glass standardly but it can be steel or perforated as required. The hinge system enables almost 180° wide opening of the door. Doors can be easily removed. CASTORS: This type of cabinet is installed on castors (included in the supply). Two of them are with a brake ADJUSTABLE VERTICAL RAILS: Two pairs of freely adjustable vertical 19" rails are supplied with a pair of middle rails on the cabinet types with 900 and 1000 mm depths BREAKOUT-TYPE BLANKING PANELS: Cable openings covered with breakout-type blanking panels are located in the bottom and rear part of the cabinet HIGH RIGIDITY CONSTRUCTION: Cabinet has a robust welded construction. High quality processing and the up-to-date technology ensure a perfect look of the cabinet. FLEXIBLE DOOR OPENING: The hinge system enables almost 180° wide opening of the door. Doors can be easily removed. DOOR LOCK It enables an easy and quick access into the cabinet. DOOR The cabinet has fully glass door in standard. It can be steel or perforated if required. FAN UNIT INSTALLATION On the back wall is the preparation in form of break-out openings for the installation of fan units RAx-CH-X2x-X1 or fans RAX-CH-X07-X9 for wall mounting cabinet to support cooling of installed equipment (see Active cooling). DESCRIPTION, PURPOSE OF USE 19" container cabinet with IP30 protection Cabinet is intended to be placed on castors under a work desk The cabinet includes two pairs of vertical rails (three pairs at cabinets deeper than 800 mm). Cabinet construction: Compact welded cabinet / Safety hardened glass door, thickness 4 mm. On demand may be metal or perforated. Max. permissible load of the door is 10 kg Min. thickness of the surface finish is 65 micrometer Cabinets are intended for installation of data and telecommunication devices and their distribution systems The frame of the cabinet and all the removable parts are connected with earthing cables that have to be properly fixed and inserted into connectors during all the time when using the cabinet. There is one M8 screw placed on the bottom part of the cabinet as an earthing main point. Cable openings covered with breakout-type blanking panels are placed in the top and the bottom part of the cabinet rear side, others are in the bottom side of the cabinet OPERATION CONDITIONS Operation environment: Office The cabinet is not intended for outdoor installations and for installations in environment that can influence negatively the functionality of the cabinet and the mounted devices (e.g. environment with danger of explosion or humid and wet surroundings) Must be protected against: Mechanical damage Improper manipulation A different usage than the cabinet is intended for Improper manipulation is especially: Overloading (maximum recommended load exceeding) Device installation that can influence negatively operation and function of the cabinet or the installed equipment Change of the construction or design of the cabinet INSTALLATION OF THE CABINET This type of cabinet is installed on castors (included in supply). Two of them are with brake ENVIRONMENT PROTECTION All parts are made of recyclable materials and after its discard, it is necessary to dispose the cabinet according to valid regulations Supply includes: 2x key - front door, 2x castor with brake, 2x castor without brake Material: Safety hardened glass 5 mm thick, steel sheet

• Height unit: 12U
• Recommended maximum load: 200kg
• Door width: 490mm
• Door height: 515mm
• Manufacturer No.: RCA-12-A61-CAX-A1
• Colour: Grey (RAL7035)
• Demountable: No
• Detachable side panels: No
• Detachable rear panel: No
• Height (outside): 620mm
• EAN Barcode: 8595105042441
• Front door: Glass door left hinge
• Locking of front door: Single-point locking, safety lock

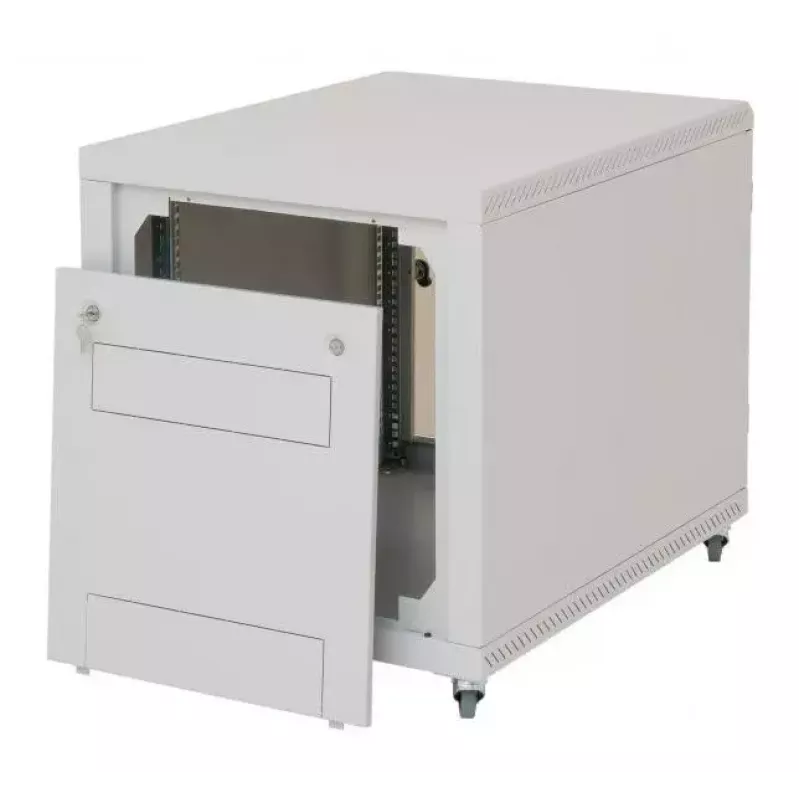

• Rear panel/door: Solid sheet metal rear panel, with two safety locks
• Locking of rear door: Safety lock for rear panel
• Side panel right: Solid sheet metal, bolted
• Side panel left: Solid sheet metal, bolted
• Manufacturer information: Triton Chemnitz GmbH
  Teichstraße 11
  09366 Niederdorf
  Deutschland
  [email protected]
• Country of origin: Czech Republic
• Im Angebot: No
• Stark reduziert: No
• Weight: 48.520kg
• Brand: Tritón
• Customs tariff number: 8538100090
• Protection class: IP30
• Width: 600mm
• Depth: 1000mm

How to use

Position the freestanding rack where it will be used and engage the castor brakes to secure it. Install equipment into the adjustable 19" vertical rails, moving the rails to the required positions and using the removable door when greater access is needed. Route cables through the bottom or rear cable entry points, and seal openings using the supplied plastic frame and blanking panels with brush to reduce dust. If required, replace the glass door with a steel or perforated door according to ventilation and security needs.

Recommendations

Install the rack on a level surface and avoid overloading beyond specified rack capacity. Use the castor brakes during maintenance and ensure adequate ventilation if installing heat-generating equipment. Follow standard ESD and mounting procedures for 19" devices.
