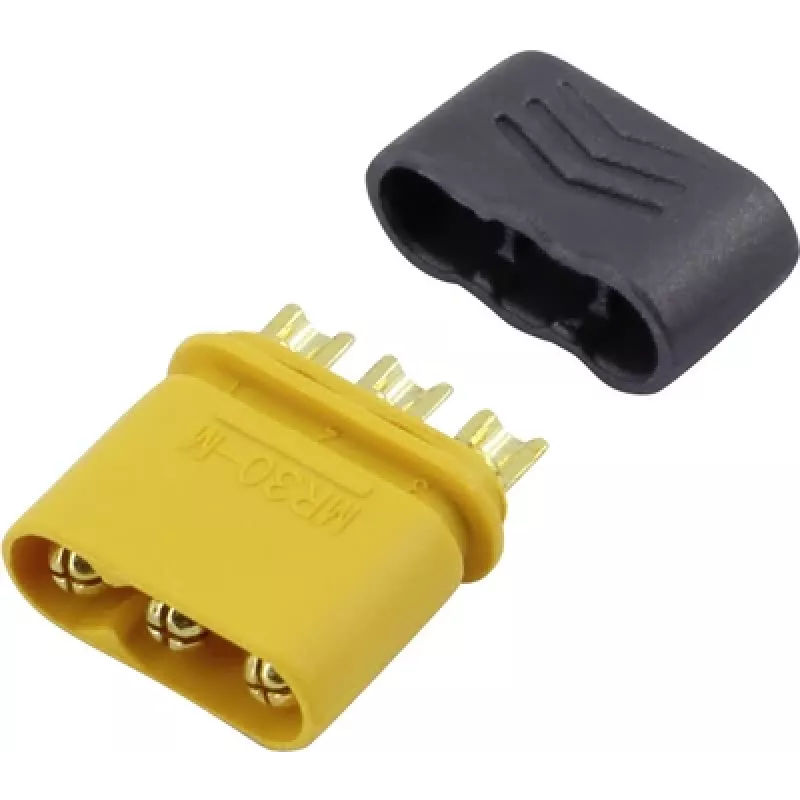

Reely MR30 conector de servo macho 3 pinos 30A 500V para modelos RC drones RE-6767715

MR30 servo connector plug with gold-plated contacts for high-current RC applications. Supports 30 A continuous current and 500 V DC, ideal for connecting servos, ESCs, and batteries in drones and RC models.

Advantages

Gold-plated copper pins ensure low contact resistance below 0.5 mΩ and reliable signal integrity. High-temperature nylon housing withstands -20°C to +120°C, making it suitable for demanding environments. Solder termination provides a secure, vibration-resistant connection.

Suitable for

• RC model servo connections
• Drone power distribution
• ESC to motor connections
• Battery connectors for high-current applications

Key specifications

• Connector system: MR30
• Type: Servo plug, male
• Pins: 3
• Continuous current: 30 A
• Peak current: 60 A
• Voltage rating: 500 V DC
• Contact resistance: < 0.5 mΩ
• Insulation resistance: > 2000 MΩ
• Temperature range: -20°C to +120°C
• Housing material: High-temperature nylon (PA), UL94 V-0
• Pin material: Gold-plated copper
• Connection method: Solder
• Recommended cable gauge: 16 AWG - 18 AWG
• Colour: Yellow

Recommendations

For secure, high-current connections in RC models and drones, this MR30 plug delivers reliable performance with gold-plated contacts and a robust nylon housing.
