Refrigeração Líquida All-in-One Corsair CW-9060072-WW

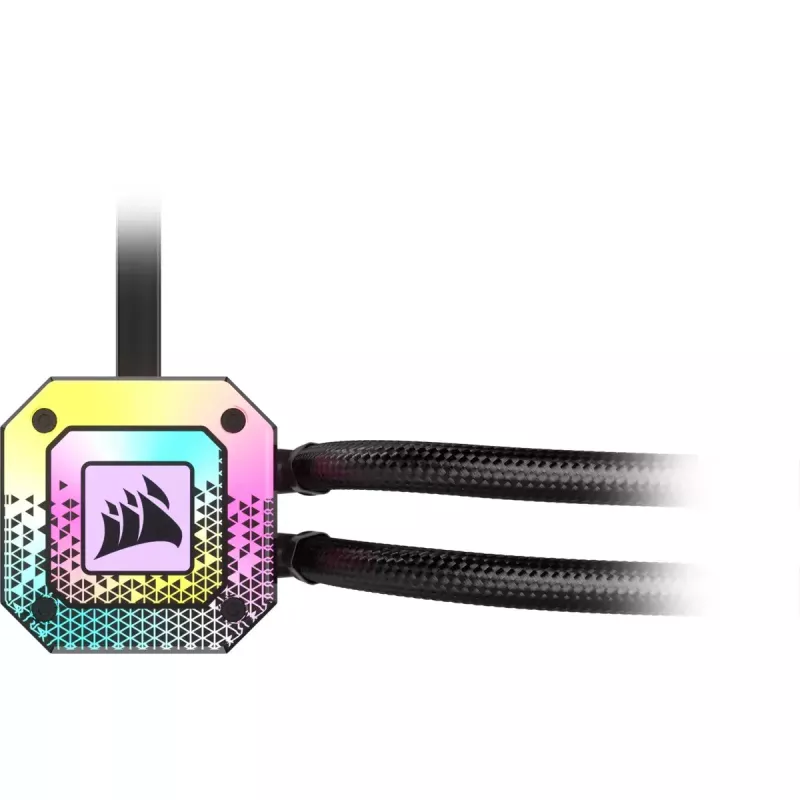

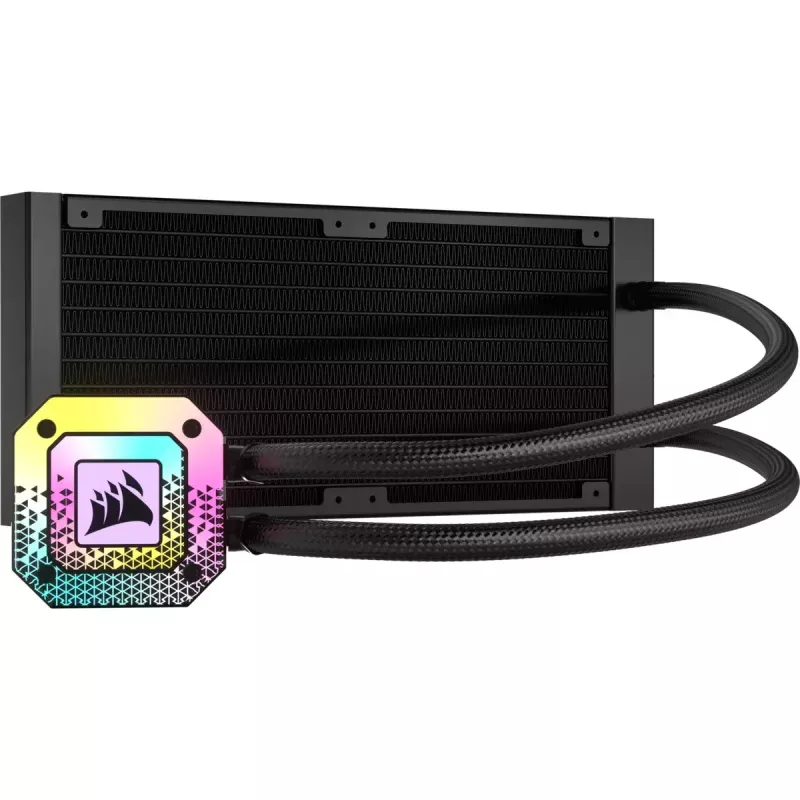

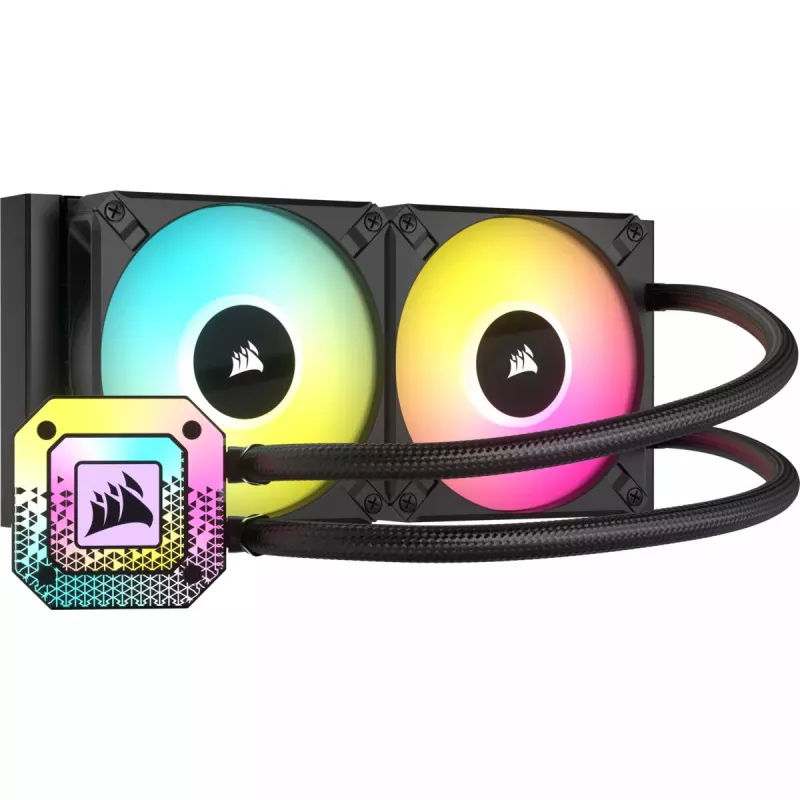

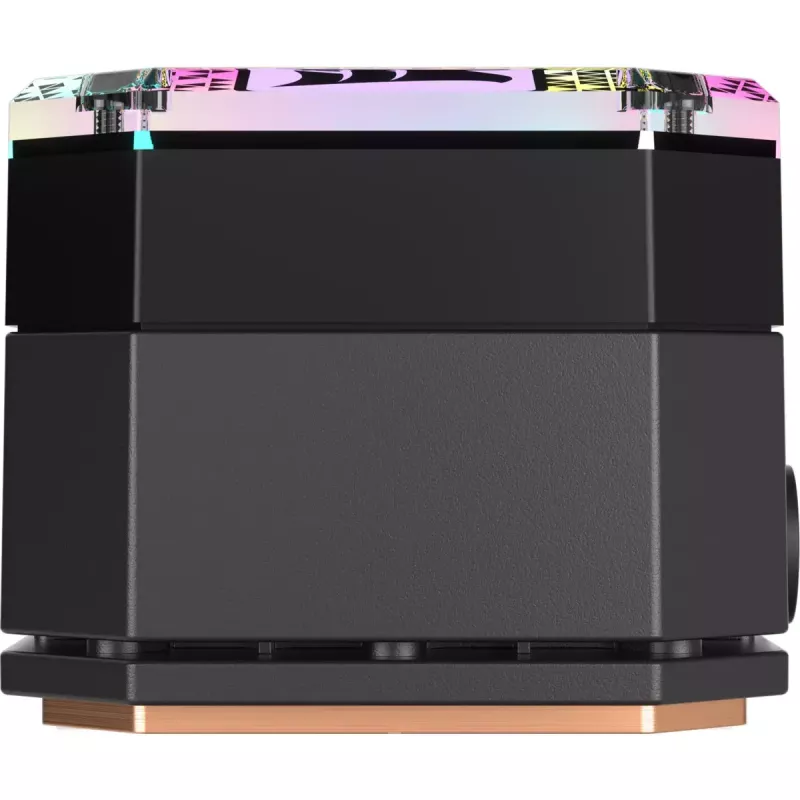

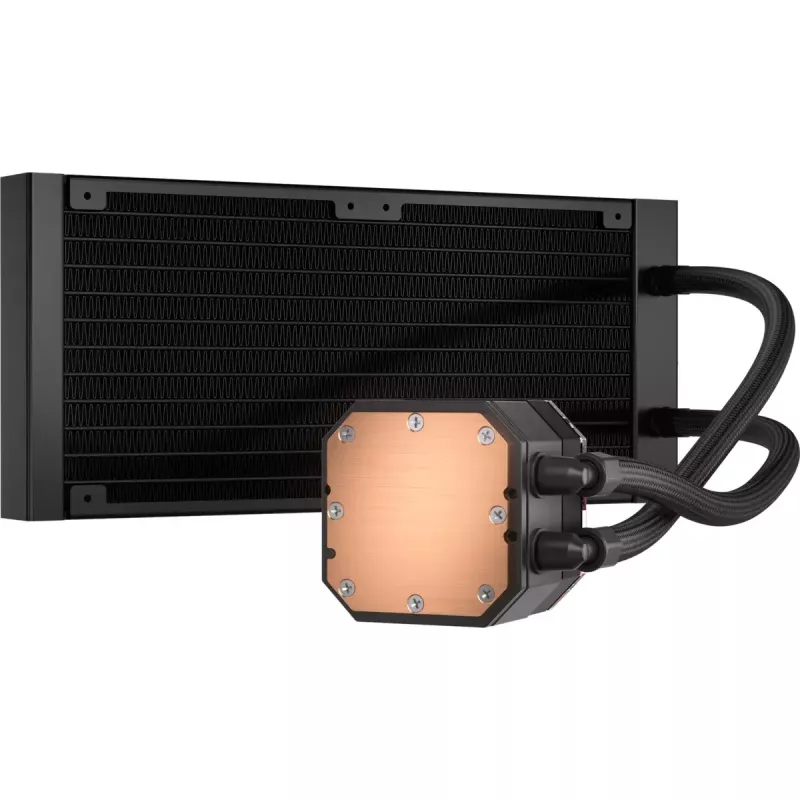

The CORSAIR ELITE CAPELLIX XT Series All-in-one liquid cooler (model CW-9060068-WW) is a high-performance CPU cooling solution that relocates processor heat to the edge of the case and expels it with dedicated radiator fans. This AIO cooler includes CORSAIR AF RGB ELITE PWM fans, a pump head with 33 CAPELLIX LEDs, and pre-applied XTM70 extreme performance thermal paste. Extended tubing and modular, tool-free mounting brackets support modern Intel and AMD sockets while keeping installation straightforward.

Advantages

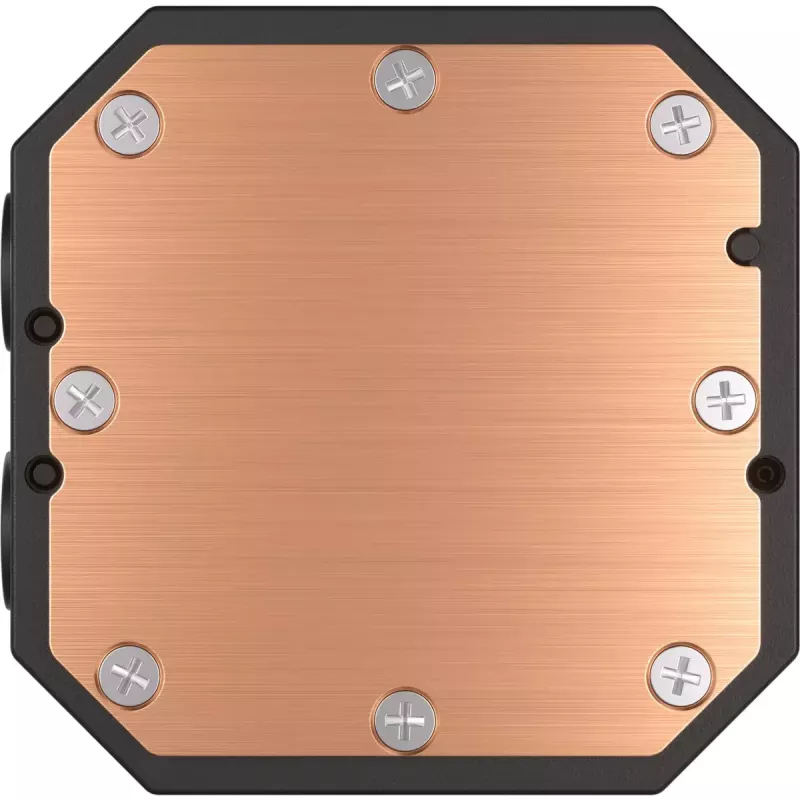

The ELITE CAPELLIX XT provides efficient heat transfer from CPU to radiator thanks to pre-applied XTM70 thermal paste and a cold plate design. AF RGB ELITE fans deliver high airflow with low noise using AirGuide and anti-vortex vane technology for improved radiator flow. A pump head with 33 CAPELLIX LEDs and integrated RGB fans offers synchronized lighting, and included iCUE COMMANDER CORE lets you control fan speeds and lighting for up to six CORSAIR RGB fans. Zero RPM profiles in CORSAIR iCUE reduce noise by stopping fans when active cooling is unnecessary.

Suitable for

• High-performance gaming desktops and workstations
• Overclocked CPUs requiring strong thermal management
• Systems that prioritize low-noise cooling
• Builders who want RGB lighting synchronized via CORSAIR iCUE

Key specifications

• Type: All-in-one liquid cooler
• Model: CW-9060068-WW (ELITE CAPELLIX XT Series)
• Fan diameter: 120 mm (AF RGB ELITE PWM)
• Fan speed range: 550–2100 RPM
• Max air pressure: 2.68 mmH2O
• Product weight: 0.91 kg
• Product colour: Black
• Supported sockets: Intel LGA 1700, 1200, 1156, 1155, 1151, 1150, 2011, 2066; AMD AM4, sTR4, sTRX4

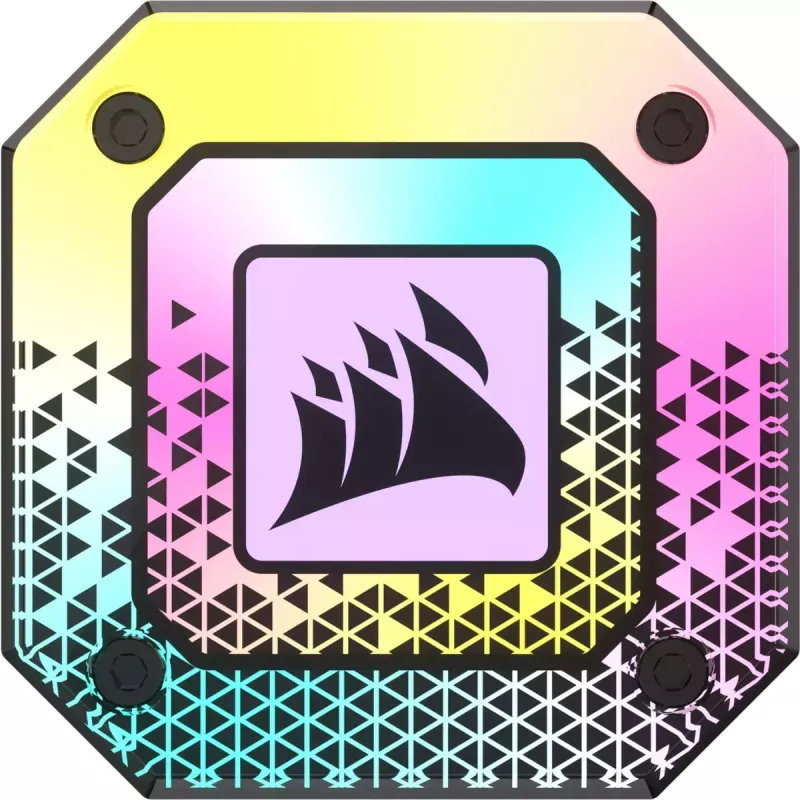

• Pump LEDs: 33 CAPELLIX LEDs
• Thermal paste: Pre-applied CORSAIR XTM70
• Tubing length: 400 mm (H100i/H115i) or 450 mm (H150i/H170i) — depending on radiator size

How to use

Install the radiator and fans in your case according to the radiator size and available mounting points, connect the pump head to the CPU socket using the supplied modular tool-free brackets, and apply the pre-applied XTM70 thermal paste between CPU and cold plate. Connect the fans and pump to the included iCUE COMMANDER CORE for power, fan speed control, and RGB synchronization, and install CORSAIR iCUE software to configure Zero RPM profiles and lighting effects.

Recommendations

For reliable performance, ensure case airflow supports the radiator placement and use CORSAIR iCUE to fine-tune fan curves; verify compatibility with your motherboard socket before installation and consider the larger radiator sizes for higher thermal loads or overclocked processors.
