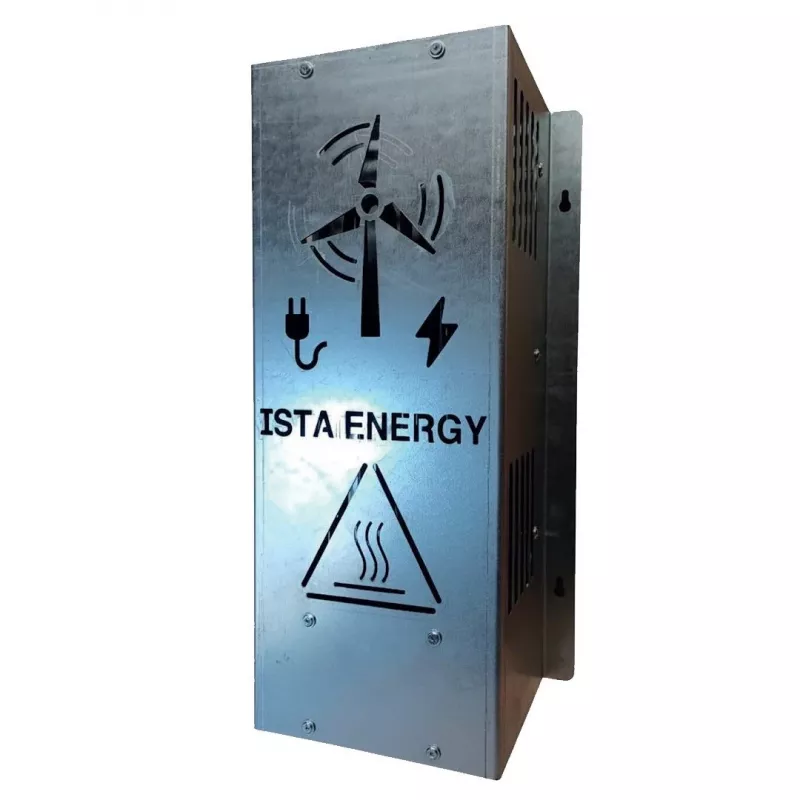

Resistência de travagem 6 kW para aerogeradores até 4 kW

The 6 kW braking resistor is a high-performance dynamic braking resistor specifically designed for wind turbine systems with a maximum power rating of 4 kW. It ensures safe energy dissipation during overspeed conditions, protecting the turbine and connected equipment.

Advantages

Reliable overspeed protection with 6 kW power dissipation capacity. Robust aluminum alloy enclosure with IP54 rating for outdoor use. Natural convection cooling eliminates moving parts for low maintenance. Screw terminals simplify installation.

Suitable for

• Wind turbines up to 4 kW
• Overspeed protection and energy dissipation systems
• Renewable energy installations requiring dynamic braking

Key specifications

• Rated Power Dissipation: 6 kW
• Compatible Wind Turbine Power: Up to 4 kW
• Resistance Value: 10 Ohm
• Rated Voltage: 400 V (AC/DC)
• Resistance Tolerance: ±5%
• Cooling Type: Natural Convection
• Enclosure Material: Aluminum Alloy
• IP Rating: IP54
• Operating Temperature Range: -25°C to +55°C
• Termination Type: Screw Terminals
• Mounting Type: Wall Mount Brackets
• Insulation Class: Class F
• Dielectric Strength: 2.5 kV
• Overload Capacity: 1.5x for 10 seconds
• Number of Resistive Elements: 1

Recommendations

Ensure proper ventilation and mounting per manufacturer guidelines. Verify compatibility with your wind turbine system before installation.
