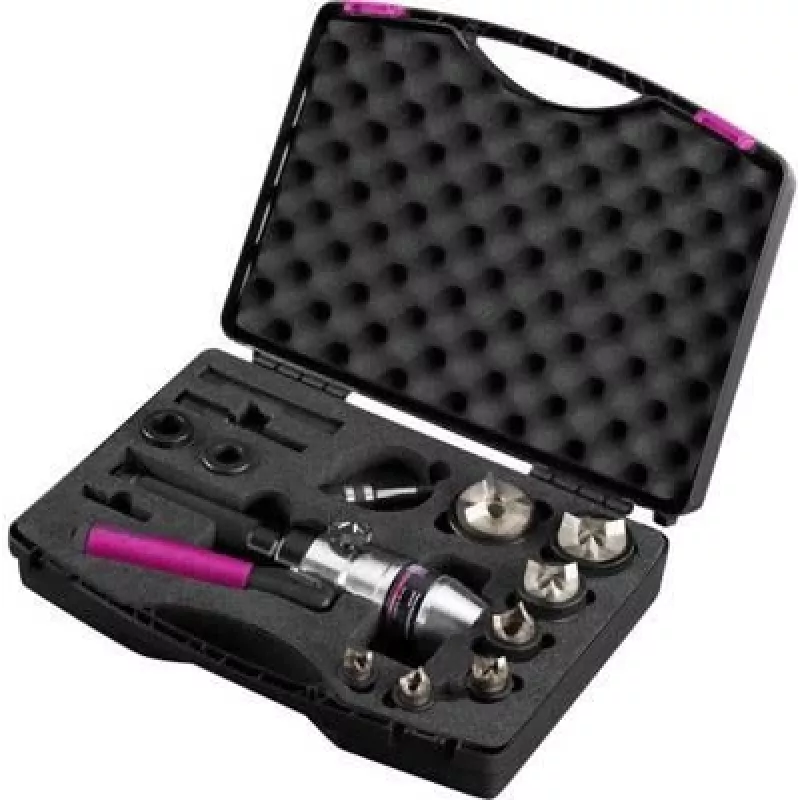

Rittal Cabeça de perfuração hidráulica 4055070

Creating precise cut-outs in control cabinet panels and sheet metal often requires heavy machinery or risks burred, deformed edges. The Rittal Hydraulic Punch Head 4055070 solves this by delivering clean, burr-free holes in steel, stainless steel, and aluminium with a compact, powerful hydraulic tool. It is engineered for industrial and electrical enclosure manufacturing where accuracy and repeatability are critical.

Who is it for

This punch head is ideal for panel builders, enclosure manufacturers, and maintenance teams who need to produce round, square, rectangular, or special cut-outs in sheet metal up to 3 mm thick. It suits professionals who already own or plan to use a compatible external hydraulic pump and draw bolts from Rittal's system.

Main features

• Hydraulic operation delivers approximately 75 kN of punching force, handling steel up to 3 mm, stainless steel up to 2 mm, and aluminium up to 3 mm.
• Compatible with Rittal draw bolts (e.g., 4055.000, 4055.010, 4055.020) and punch shapes including round, square, rectangular, and special profiles.
• High-strength steel alloy construction ensures durability and long service life in industrial environments.
• Produces burr-free and deformation-free cut-outs, reducing secondary finishing work.
• Compact design with blue and silver finish integrates seamlessly into existing Rittal punching systems.

Specifications

• Product type: Hydraulic punch head
• Operation principle: Hydraulic
• Maximum sheet steel thickness: 3 mm
• Maximum stainless steel thickness: 2 mm
• Maximum aluminium thickness: 3 mm
• Required punching force: Approx. 75 kN (7.5 tons)
• Required accessory: External hydraulic pump (e.g., Rittal 4055.080, 4055.090)
• Required accessory: Draw bolts (e.g., Rittal 4055.000, 4055.010, 4055.020)
• Compatible punch shapes: Round, square, rectangular, special
• Connection thread (draw bolt): M10 / M16 (depending on draw bolt)
• Tool material: High-strength steel alloy
• Product colour: Blue, Silver

Tips

Always use the correct draw bolt and die set for your material thickness and desired cut-out shape. Ensure the external hydraulic pump is rated for at least 75 kN and follow Rittal's recommended maintenance schedule to keep the punch head in optimal condition.
