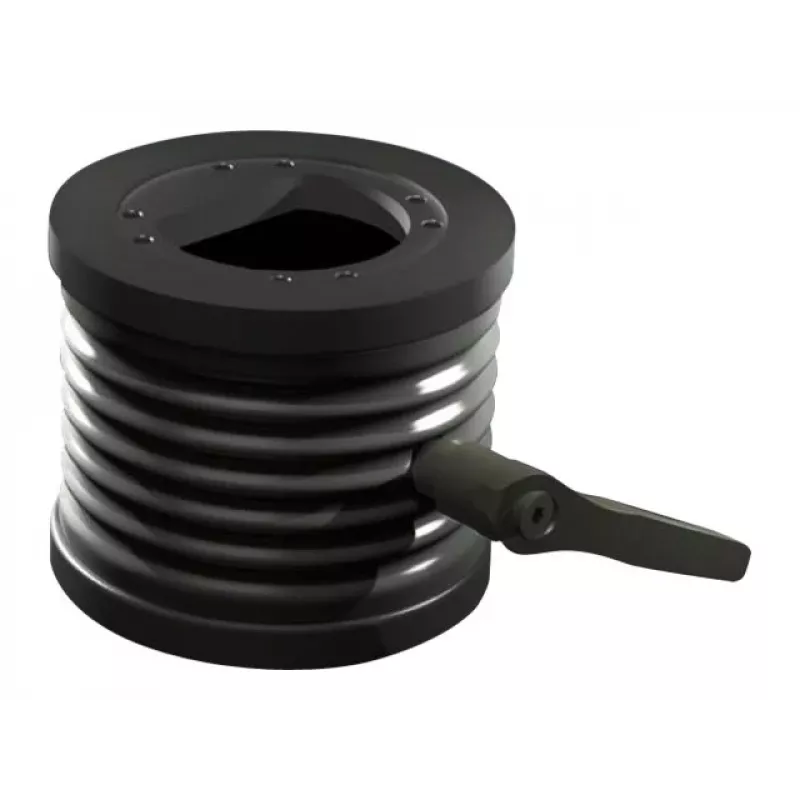

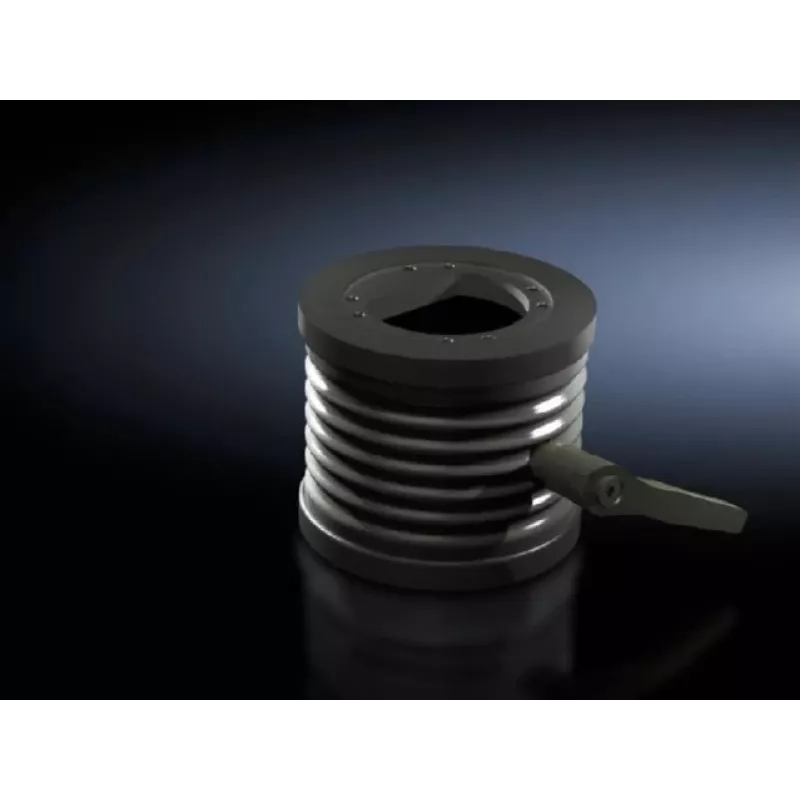

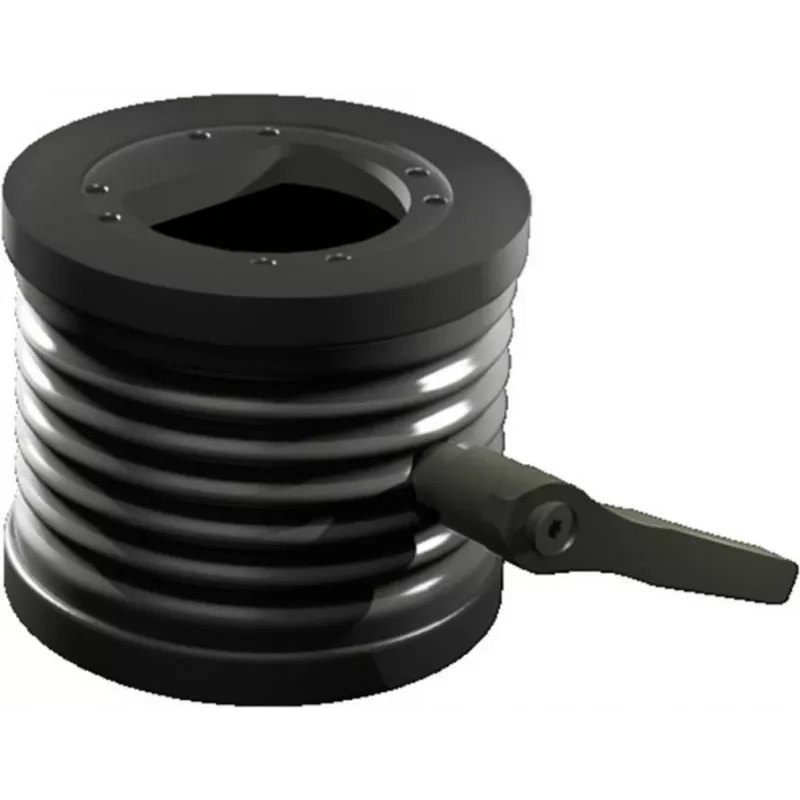

Rittal CP adaptador de inclinação ±45° para ligação de braço de suporte Ø 130 mm, alumínio fundido, cinzento grafite RAL 7024 6206.420

When control panels or enclosures need to be positioned at an ergonomic angle for operators, a fixed mounting often falls short. The Rittal CP Tilt Adapter solves this by allowing a ±45° continuous tilt adjustment, so screens and control units can be angled precisely for comfortable viewing and operation.

Who is it for

This tilt adapter is built for industrial environments where control panels, HMI devices, or enclosures are mounted on Rittal CP support arm systems with a 130 mm connection diameter. It suits system integrators, machine builders, and maintenance teams who need reliable, adjustable positioning of operator interfaces.

Main features

• ±45° tilt range for flexible angular adjustment of attached components
• Integrated locking mechanism to securely hold the chosen position
• Die-cast aluminium construction with plastic elements for durability and reduced weight
• Graphite grey finish (RAL 7024) to match Rittal CP system aesthetics
• Designed for Ø 130 mm support arm connections, ensuring compatibility with Rittal CP series
• Includes all necessary assembly parts for straightforward installation

Specifications

• Product type: Tilt adapter
• Series: Rittal CP (Comfort Panel / Command Panel)
• Tilt angle: ±45°
• Connection diameter: 130 mm
• Material: Die-cast aluminium, plastic
• Color: Graphite grey (RAL 7024)
• Mounting type: For CP support arm connections
• Adjustability: Continuously adjustable tilt
• Locking mechanism: Integrated
• Included components: Assembly parts

Tips

For optimal ergonomics, adjust the tilt angle while the attached device is in its typical operating position. Ensure the locking mechanism is fully engaged after adjustment to prevent unintended movement. The adapter is designed for indoor industrial use; avoid exposure to harsh chemicals that may damage the finish.
