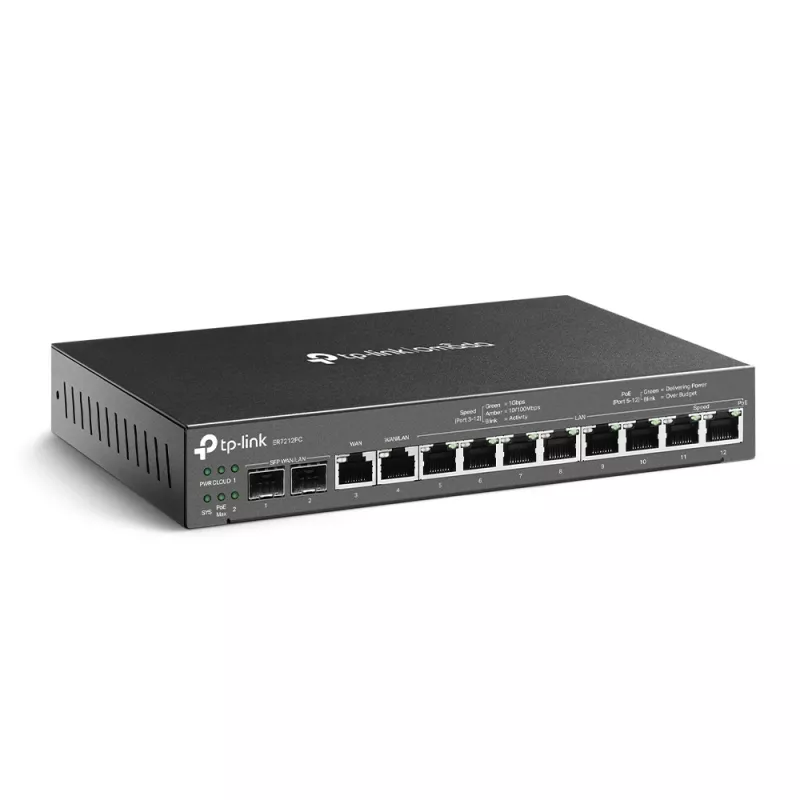

Router TP-Link Omada 3-em-1 Gigabit VPN ER7212PC

The Omada ER7212PC is a compact 3-in-1 Gigabit VPN router that combines routing, PoE+ switching and a hardware controller in a single device. Designed for home and small business use, it supports multiple WAN ports for load balancing, high-security VPN protocols, and centralized management via the Omada app or web interface. The fanless, minimalist design allows quiet operation and flexible placement on a desk or ceiling.

Advantages

The ER7212PC replaces separate router, controller and PoE+ switch hardware, simplifying deployment and reducing equipment footprint. Multiple Gigabit WAN ports and multi-WAN load balancing improve bandwidth utilization across several internet lines. Built-in centralized management lets you configure and update connected devices in bulk and monitor the network remotely. The device supports a range of VPN protocols for secure remote connections and implements layered security features including firewall policies, VLAN support, DoS protection, filtering and IP–MAC binding.

Key specifications

• Form factor: compact, fanless design suitable for desk or ceiling installation
• Device type: 3-in-1 router combining router, PoE+ switch functionality and controller capability
• WAN: up to four Gigabit WAN ports with multi-WAN load balancing
• VPN: supports OpenVPN, IPSec, PPTP and L2TP (Client/Server); one-click auto IPSec VPN
• Security: advanced firewall policies, DoS defense (TCP/UDP/ICMP floods, Ping of Death), IP/MAC/URL/keyword filtering, IP–MAC binding
• Management: centralized management via Omada app and web browser, remote monitoring and bulk updates

How to use

Connect your internet lines to the WAN ports and attach PoE devices to the PoE+ ports as needed. Use the web interface or the Omada app to run initial setup, select WAN load balancing or failover as required, and enable VPN services. Configure firewall rules, VLANs and filtering options from the centralized management console. For remote access or site-to-site connections, create VPN profiles using the supported protocols and enable one-click IPSec where appropriate.

Recommendations

For optimal performance, place the ER7212PC in a well-ventilated, dust-free location and keep firmware updated through the Omada controller. Use multi-WAN load balancing when multiple internet lines are available, and enable IP–MAC binding and VLAN segmentation to enhance security in multi-client environments.
