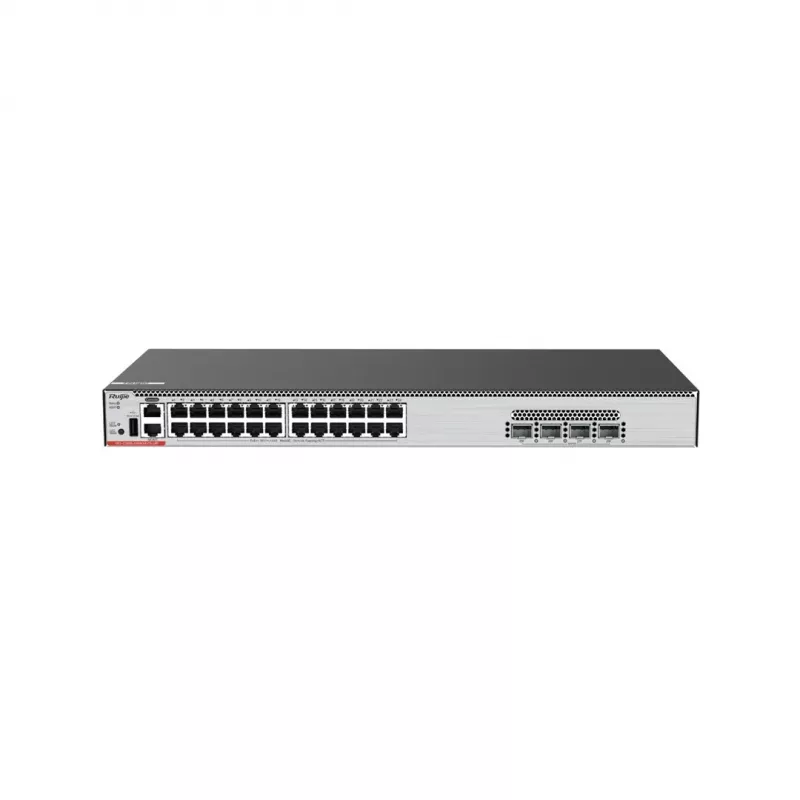

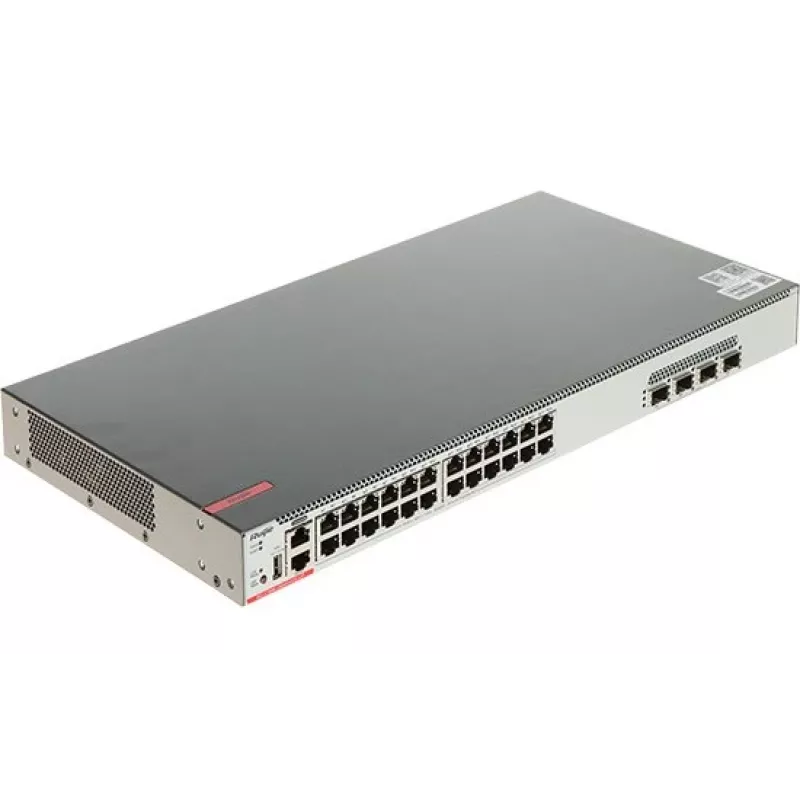

Ruijie RG-CS86-24MG4VS-UP Switch PoE 24 portas Multi-Gigabit 4x25G SFP28 Cloud Managed

The Ruijie RG-CS86-24MG4VS-UP is a high-performance, cloud-managed PoE switch designed for modern enterprise networks. With 24 multi-gigabit PoE ports and 4 x 25 Gigabit SFP28 uplinks, it delivers exceptional power and connectivity for demanding applications such as high-density Wi-Fi 6/6E access points, IP cameras, and IoT devices.

Advantages

This switch offers a total PoE budget of 740W (expandable with optional PSUs) supporting IEEE 802.3af/at/bt standards, enabling power delivery up to 90W per port. Its Layer 3 capabilities, combined with Ruijie Cloud management, provide centralized control, monitoring, and troubleshooting. Virtual stacking (VSU) allows multiple switches to be managed as a single unit, simplifying network expansion.

Suitable for

• Enterprise campus networks requiring high-speed wired and wireless convergence
• Surveillance systems with high-power PoE cameras
• Smart building and IoT deployments
• Education, hospitality, and retail environments

Key specifications

• 24 x 100/1000/2500/5000/10000BASE-T PoE/PoE+/BT ports
• 4 x 25 Gigabit SFP28 uplink ports
• Switching capacity: 680 Gbps
• Forwarding rate: 505 Mpps
• MAC address table: 32K
• VLAN support: 4094
• Jumbo frame: 9KB
• Internal AC power supply (100-240V, 50/60Hz)
• Smart fan cooling
• 1U rack-mountable
• Operating temperature: 0°C to 50°C

Recommendations

Ideal for organizations seeking a future-proof, high-power PoE switching solution with cloud-based management. The RG-CS86-24MG4VS-UP ensures seamless scalability and robust security features including ACL, DHCP snooping, and ARP inspection.
