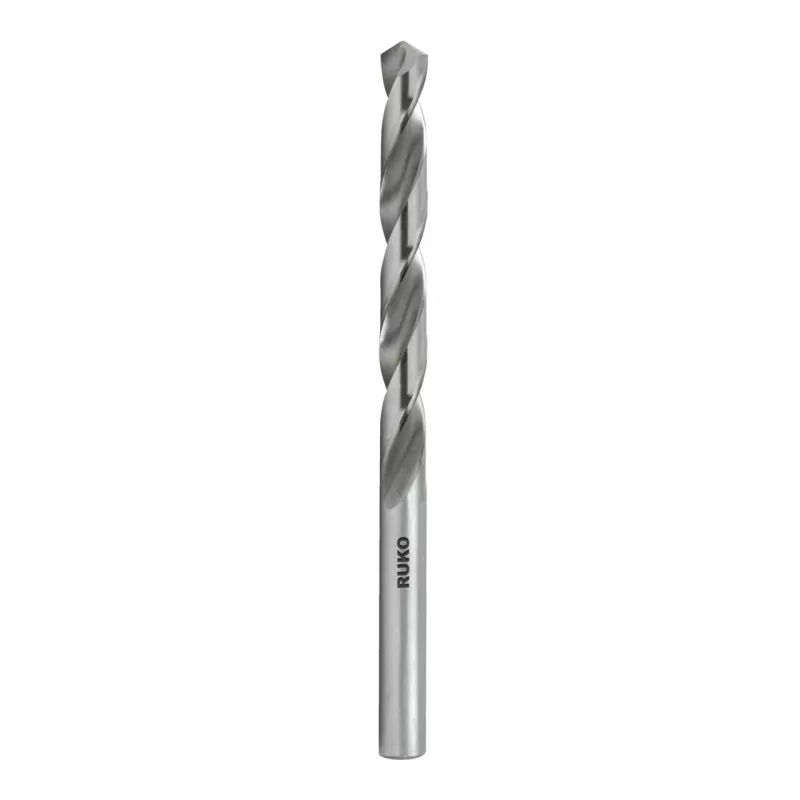

Broca helicoidal RUKO HSS-G totalmente retificada DIN 338, afiação em cruz, 9,7 mm

The RUKO SPB-DIN338-HSS-G-Kreuz-9.7mm stands out with its split point geometry, which eliminates the need for center punching and provides immediate self-centering on contact. This fully ground HSS-G drill bit is built for precision and efficiency in demanding metalworking tasks.

Highlights

• Split point (Kreuzanschliff) with 135° point angle for self-centering and reduced thrust
• Fully ground from high-speed steel (HSS-G) for excellent dimensional accuracy and surface finish
• DIN 338 standard ensures consistent quality and compatibility
• Uncoated bright finish reduces chip adhesion and improves chip evacuation

In daily use

This 9.7 mm twist drill bit is suitable for drilling alloyed and unalloyed steel up to 900 N/mm² tensile strength, cast iron, non-ferrous metals, and plastics. The cylindrical shank fits standard drill chucks, and the h8 tolerance guarantees a precise fit. Its 133 mm total length and 94 mm flute length provide ample reach for most workshop applications.

Full specifications

• Material: HSS-G (high-speed steel, ground)
• Standard: DIN 338
• Drill bit type: Twist drill bit
• Diameter: 9.7 mm
• Point type: Split point
• Point angle: 135°
• Shank type: Cylindrical
• Manufacturing process: Fully ground
• Coating: Uncoated (bright finish)
• Tolerance: h8
• Direction of cut: Right-hand cutting
• Total length: 133 mm
• Flute length: 94 mm
• Max. tensile strength: 900 N/mm²

Final note

A professional-grade drill bit that delivers clean, accurate holes in a wide range of materials, backed by RUKO's precision manufacturing.
