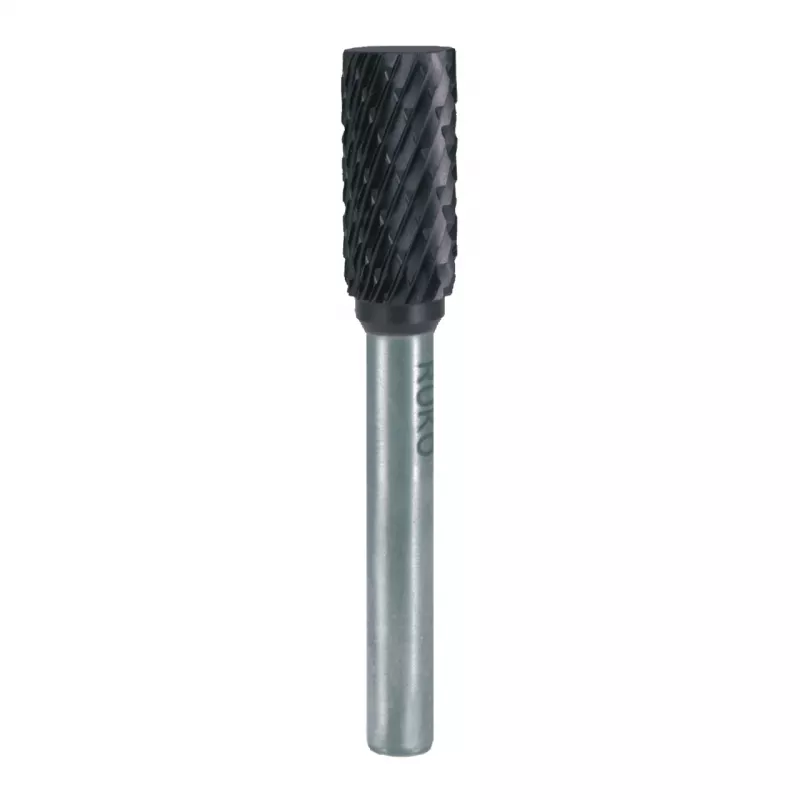

Fresa de topo RUKO FRS-DIN8033-HM-TiAlN Ø16,0mm VHM

The RUKO GMBH FRS-DIN8033-HM-TiAlN Ø16.0mm end mill stands out with its solid carbide construction and TiAlN coating, delivering high wear resistance and heat stability for demanding machining tasks. Its 4-flute square-end geometry and 30° helix angle are tailored for universal use across steel, stainless steel, cast iron, and hardened steel up to 55 HRC.

Highlights

• Solid carbide body with TiAlN coating for extended tool life
• 4-flute design with square end geometry
• 30° helix angle for efficient chip evacuation
• Precision ground to DIN 8033 standard
• Shank tolerance h6 for secure clamping

In daily use

This end mill excels in universal machining applications, from roughing to finishing. The TiAlN coating reduces friction and heat buildup, allowing higher cutting speeds and feeds. Its 16 mm cutting diameter and 32 mm cutting length provide a balanced mix of reach and rigidity, while the 16 mm shank fits standard Weldon, hydraulic, and shrink fit chucks. External coolant is recommended to maximize performance.

Full specifications

• Tool type: End Mill
• Material: Solid Carbide (VHM)
• Coating: TiAlN (Titanium Aluminum Nitride)
• Standard: DIN 8033
• Cutting diameter (D1): 16.0 mm
• Shank diameter (D2): 16.0 mm
• Number of flutes: 4
• Overall length (L1): 92 mm
• Cutting length (L2): 32 mm
• Helix angle: 30°
• Shank tolerance: h6
• Cutting edge geometry: Square End
• Application: Universal Machining
• Suitable materials: Steel, Stainless Steel, Cast Iron, Hardened Steel (up to 55 HRC)
• Coolant type: External
• Manufacturing process: Precision Ground
• Product series: FRAISA FRS
• Tool holder compatibility: Weldon, Hydraulic, Shrink Fit Chucks

Final note

Engineered for reliability and performance, this end mill is a solid choice for workshops requiring consistent results across a range of materials.
