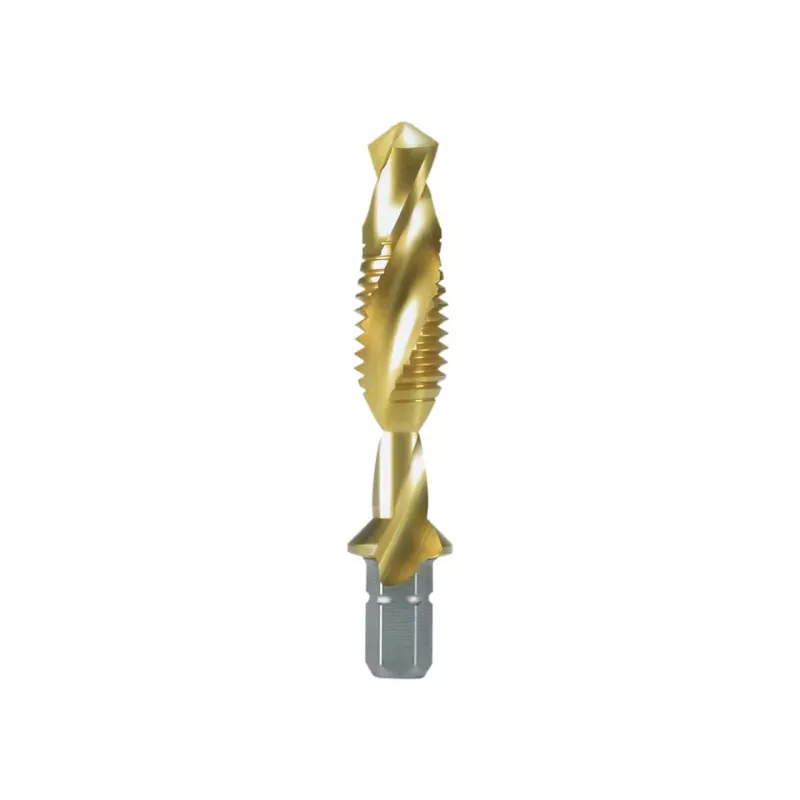

Macho de roscar à máquina RUKO KGB-Bit-HSS-TiN-60°-M8x1.25mm-S

Machine tap with titanium nitride coating for threading through holes in steel, stainless steel, cast iron and non-ferrous metals. The spiral point design pushes chips forward, preventing clogging and enabling high-speed tapping.

Advantages

TiN coating reduces friction and increases wear resistance, extending tool life. The 60° thread flank angle ensures precise thread geometry according to DIN 13. Straight flutes provide reliable chip evacuation in through-hole applications.

Suitable for

• Steel
• Stainless steel
• Cast iron
• Non-ferrous metals

Key specifications

• Thread: M8 x 1.25 mm
• Material: High-speed steel (HSS)
• Coating: Titanium nitride (TiN)
• Overall length: 90 mm
• Thread length: 20 mm
• Shank diameter: 6.0 mm
• Recommended core hole diameter: 6.8 mm

Recommendations

Use with a suitable tapping fluid for best results. Ensure the core hole is drilled to 6.8 mm before tapping.
