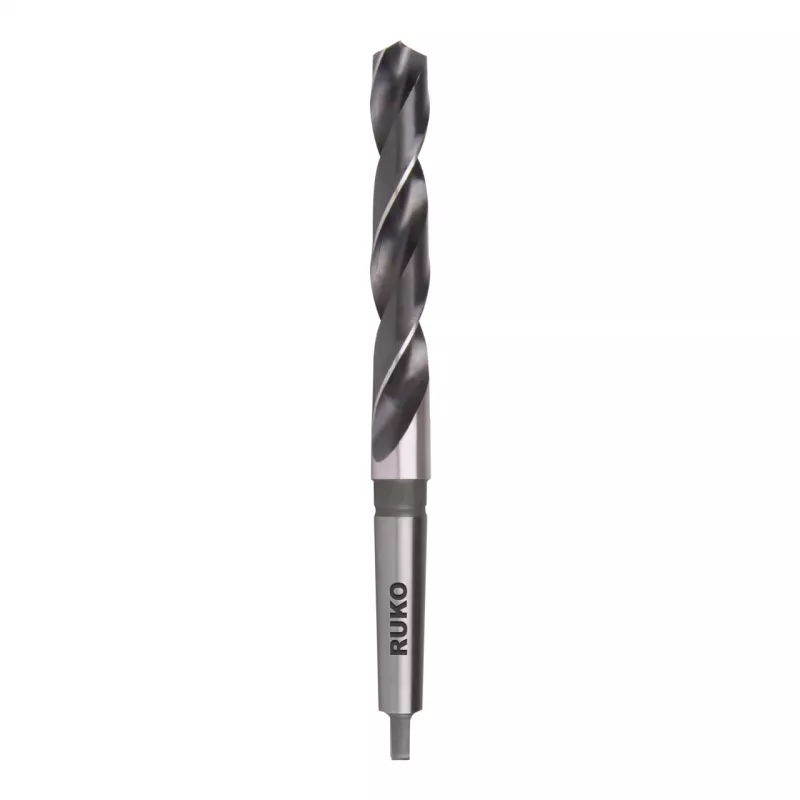

RUKO DIN 345 Broca helicoidal com haste cónica Morse 50,0 mm HSS

Large-diameter drilling in tough materials demands a tool that stays centered, cuts cleanly, and withstands heavy loads. The RUKO DIN 345 Morse Taper Shank Twist Drill Bit delivers that with a 50.0 mm diameter and robust HSS construction. Its Morse Taper Shank (MT5) locks securely into machine spindles, preventing slippage during high-torque operations.

Who is it for

Machinists, metalworkers, and maintenance professionals who need reliable, large-hole drilling in steel, cast iron, non-ferrous metals, and plastics. Ideal for use in drill presses, lathes, and milling machines equipped with an MT5 spindle.

Main features

• 50.0 mm diameter, ground from solid HSS for durability and precision.
• Morse Taper Shank size MT5 for secure, concentric mounting.
• DIN 345 standard geometry with 118° point angle for efficient cutting.
• Right-hand cutting direction, two flutes for effective chip evacuation.
• Bright uncoated finish, tolerance h8.

Specifications

• Drill Type: Twist Drill Bit
• Shank Type: Morse Taper Shank
• Standard: DIN 345
• Material: HSS (High-Speed Steel)
• Drill Diameter: 50.0 mm
• Morse Taper Size: MT5
• Overall Length: 380 mm
• Flute Length: 205 mm
• Point Angle: 118°
• Cutting Direction: Right-hand cut
• Surface Finish: Bright (Uncoated)
• Tolerance: h8
• Number of Flutes: 2
• Manufacturing Process: Ground from solid
• Recommended Application: Steel, Cast Iron, Non-Ferrous Metals, Plastics
• Coolant Through: No

Tips

Use appropriate cutting fluid and lower speeds for large diameters to manage heat. Ensure the Morse taper and spindle socket are clean before mounting to maintain accuracy.
