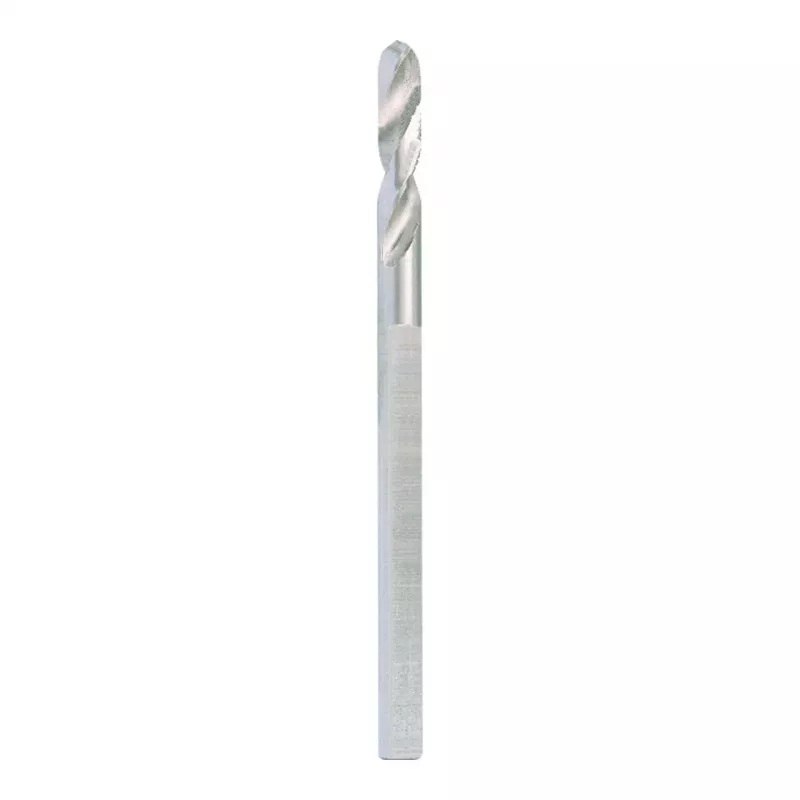

RUKO ERB-HSSCo broca para pontos de solda 6,35 mm para A4-L

Removing spot welds from high-strength steel and stainless steel sheet metal is slow and destroys ordinary drill bits. The RUKO ERB-HSSCo 6.35 mm spot weld drill bit is made from high-speed steel cobalt (HSSCo) with a 135° split point that self-centers on the weld and cuts cleanly without walking. The short 45 mm overall length and 12 mm flute length provide the rigidity needed for controlled drilling in automotive body repair and metal fabrication.

Who is it for

Auto body technicians, metal fabricators, and maintenance crews who regularly remove spot welds from sheet metal and need a drill bit that resists heat and wear in tough materials.

Main features

• High-speed steel cobalt (HSSCo) for high heat and wear resistance
• 6.35 mm diameter (1/4 inch) with cylindrical shank
• 135° split point for self-centering and reduced walking
• Short design: 45 mm overall length, 12 mm flute length
• Right-hand cutting direction, 2 flutes, uncoated bright finish
• Conforms to DIN 1897 for short drill bits

Specifications

• Product type: Spot weld drill bit
• Material: High-speed steel cobalt (HSSCo)
• Drill bit diameter: 6.35 mm
• Shank diameter: 6.35 mm
• Overall length: 45 mm
• Flute length: 12 mm
• Point angle: 135°
• Tip design: Split point
• Cutting direction: Right-hand
• Number of flutes: 2
• Shank type: Cylindrical
• Coating: Uncoated (bright finish)
• Standard: DIN 1897
• Suitable materials: High-strength steel, stainless steel, sheet metal, non-ferrous metals
• Recommended use: Automotive body repair, metal fabrication

Tips

Use a center punch to mark the weld before drilling to help the split point engage. Apply cutting fluid when drilling stainless steel to extend bit life. Drill at moderate speed and pressure; let the bit do the work.
