RUKO extensão de porta-brocas DIN 377 B16 haste 11,0 mm

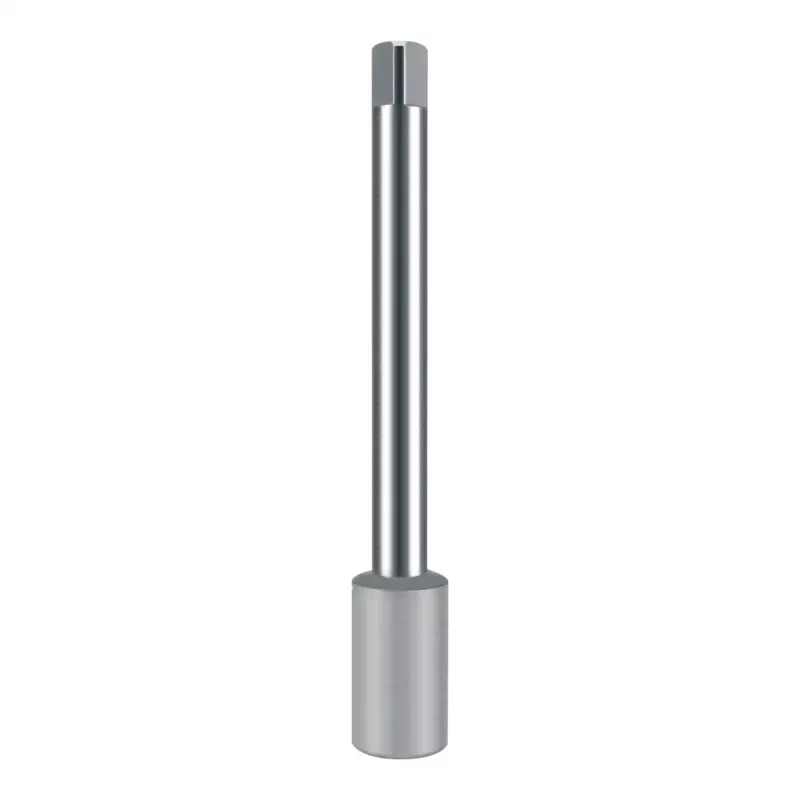

Drill chuck extension for extending the reach of drilling operations. This extension features a cylindrical shank with 11.0 mm diameter on the machine side and a B16 taper on the chuck side, conforming to DIN 377 for drill chucks. Made from high-grade tool steel with precision ground surface for high concentricity.

Advantages

High concentricity ensures accurate drilling. Self-tightening taper fit on chuck side provides secure mounting. Precision ground surface enhances durability and performance.

Suitable for

• Drill chucks with B16 taper
• Spindles or adapters with 11.0 mm bore
• Extending reach in drilling operations

Key specifications

• Machine side connection: Cylindrical shank, 11.0 mm diameter
• Chuck side connection: B16 taper (DIN 377)
• Material: High-grade tool steel
• Overall length: 120 mm
• Maximum diameter: 16 mm

Recommendations

For use with drill chucks having B16 taper and machines with 11.0 mm bore. Ensure proper clamping for secure operation.
